FRAME

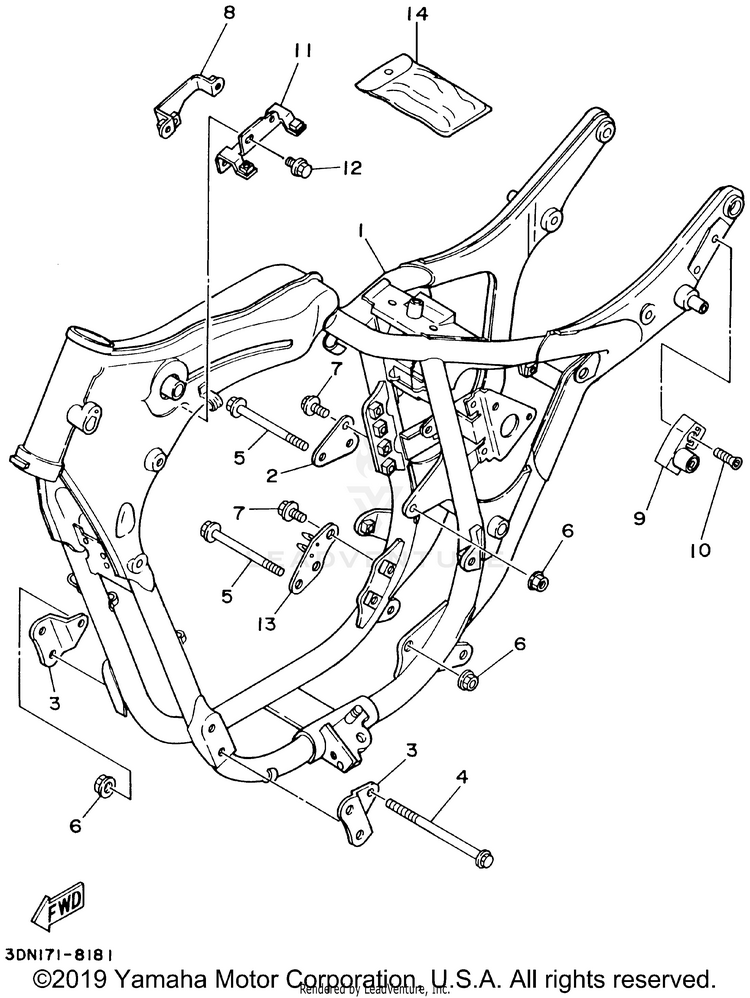

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12UJ-21110-10-33FRAME COMP. | YB$1,112.99$973.32Usually ships in 7-10 business days
22UJ-21318-01-00STAY, ENGINE 5$6.49$5.84Usually ships in 7-10 business days
32UJ-21315-00-00STAY, ENGINE 2$17.49$14.34Usually ships in 7-10 business days
495814-08150-00BOLT, FLANGE$5.49$4.94Usually ships in 7-10 business days
595814-08110-00BOLT, FLANGE$8.49$7.64Usually ships in 7-10 business days
690179-08491-00

(replaces part #
90179-08656-00)

NUT$2.80$2.4110+ In-Stock
795817-08016-00BOLT,FLANGE (JN5)$5.49$4.2810+ In-Stock
82UJ-21243-00-00PLATE, BRIDGE$9.99$8.99Usually ships in 7-10 business days
926H-21308-01-00

(replaces part #
26H-21308-00-00)

HELMET HANGER ASSY$89.99$70.19Usually ships in 7-10 business days
1090149-06154-00SCREW$10.49$8.60Usually ships in 7-10 business days
112UJ-2135Y-00-00BRACKET, IGNITION COIL$28.99$23.77Usually ships in 7-10 business days
1295817-06012-00BOLT, FLANGE$1.95$1.7710+ In-Stock
132UJ-21319-00-00STAY, ENGINE 6$15.99$13.11Usually ships in 7-10 business days
142UJ-28100-00-00TOOL KIT$58.99$46.01Usually ships in 7-10 business days
