2002 Yamaha Virago XV250 Front Brake Caliper OEM Parts Diagram

Submodel VIRAGO 250 - XV250PC - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

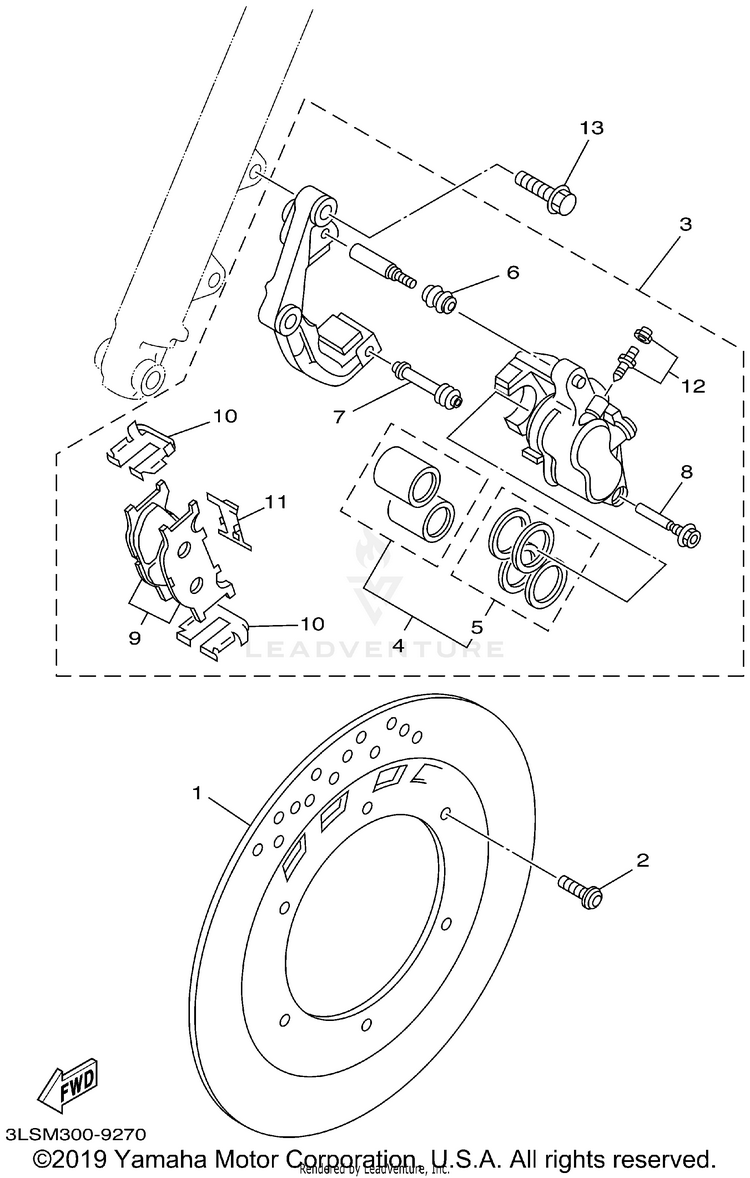

FRONT BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13LP-2582T-00-00DISC, BRAKE (LEFT)$399.99$311.99Usually ships in 7-10 business days
290109-08789-00BOLT$10.49$8.6010+ In-Stock
34HM-2580T-00-00CALIPER ASSY (LEFT)$365.99$304.00Usually ships in 7-10 business days
44HC-W0057-50-00

(replaces part #
4FU-W0057-50-00)

PISTON ASSY, CALIPER$157.99$123.23Usually ships in 7-10 business days
54HC-25803-50-00

(replaces part #
4HC-W0047-50-00)

CALIPER SEAL KIT$66.99$52.25Usually ships in 7-10 business days
65R2-25937-00-00BOOT 2$41.99$32.752 In-Stock
73YX-25937-00-00BOOT 2$33.99$27.87Usually ships in 7-10 business days
83YX-25926-00-00BOLT$9.99$8.99Usually ships in 7-10 business days
94HM-W0045-00-00BRAKE PAD KIT$53.99$42.11Usually ships in 7-10 business days
104BP-25919-00-00SUPPORT, PAD$48.99$40.17Usually ships in 7-10 business days
113YX-25929-00-00SPRING, ANTI RATTLE$35.99$29.51Usually ships in 7-10 business days
1215B-W0048-00-00

(replaces part #
51L-W0048-00-00)

BLEED SCREW KIT$21.99$17.157 In-Stock
1390105-10638-00BOLT, WASHER BASED$8.49$6.6210+ In-Stock
