2002 Yamaha XT225 Serow Camshaft Chain OEM Parts Diagram

Submodel XT225 - XT225PC - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CAMSHAFT CHAIN

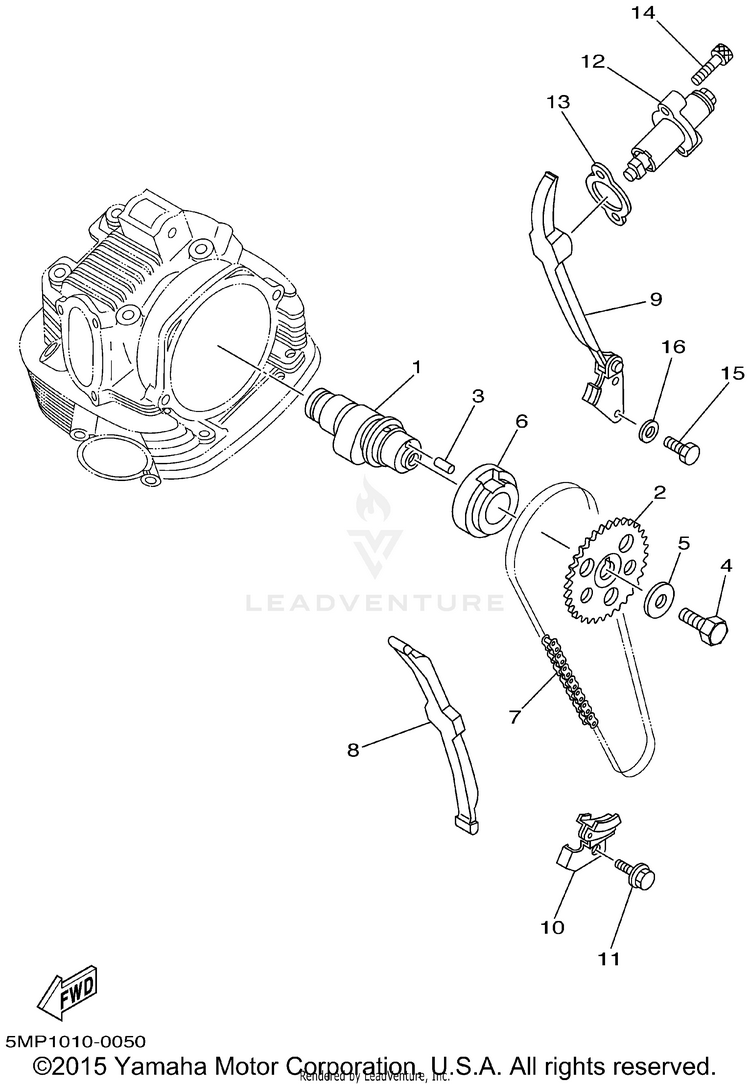

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11KH-12171-01-00

(replaces part #
1KH-12171-00-00)

CAMSHAFT 1$174.99$136.494 In-Stock
25MP-12176-00-00SPROCKET, CAM CHAIN$143.99$112.31Usually ships in 7-10 business days
393604-10011-00PIN, DOWEL$8.49$6.6210+ In-Stock
490101-10303-00BOLT$10.49$8.184 In-Stock
590201-10774-00

(replaces part #
90201-10591-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
690387-255F3-00COLLAR$49.99$38.994 In-Stock
794591-87104-00CHAIN$24.99$19.492 In-Stock
85MP-12231-00-00GUIDE, STOPPER 1$127.99$99.83Usually ships in 7-10 business days
95MP-12241-00-00GUIDE, STOPPER 2$205.99$160.67Usually ships in 7-10 business days
105MP-12256-00-00COVER, CHAIN$30.99$25.41Usually ships in 7-10 business days
1195027-08016-00BOLT, FLANGE$9.49$8.546 In-Stock
125MP-12210-00-00TENSIONER ASSY, CAM CHAIN$129.99$101.39Usually ships in 7-10 business days
134FM-12213-00-00GASKET, TENSIONER CASE$9.49$7.4010+ In-Stock
1491314-06025-00BOLT, HEXAGON SOCKET HEAD$9.49$7.407 In-Stock
1597017-06016-00

(replaces part #
97027-06016-00)

BOLT$9.49$7.405 In-Stock
1692907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
