2002 Yamaha XT225 Serow Seat OEM Parts Diagram

Submodel XT225 - XT225PC - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

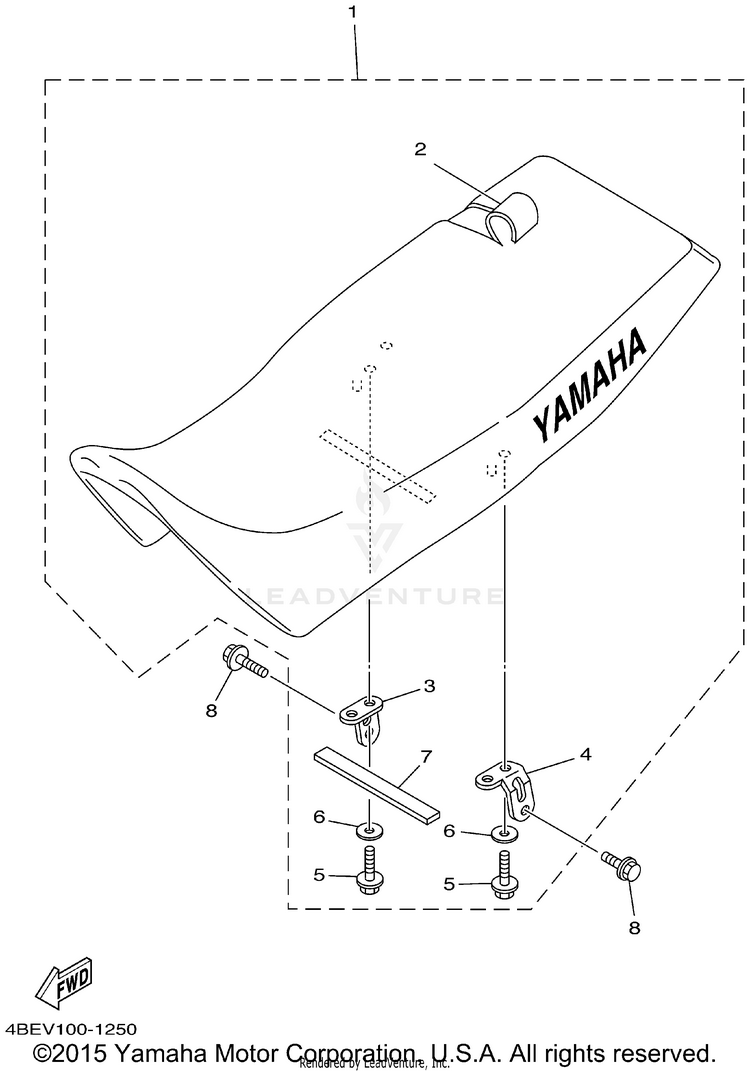

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14JG-24730-50-00DOUBLE SEAT ASSY$398.99$311.21Not Shipping
24JG-2470F-50-00COVER, SEAT$205.01$159.91Usually ships in 7-10 business days
33RW-24738-00-00BRACKET, SEAT$13.99$11.47Usually ships in 7-10 business days
43RW-24748-00-00BRACKET, SEAT$14.99$12.29Usually ships in 7-10 business days
595817-06016-00

(replaces part #
95807-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
690201-06M02-00

(replaces part #
90201-06008-00)

WASHER, PLATE$2.65$2.284 In-Stock
71KH-2475M-00-00SEAL$4.00$3.60Not Shipping
890119-06242-00

(replaces part #
90119-06094-00)

BOLT, WITH WASHER$8.49$6.6210+ In-Stock
