2002 Yamaha YZ250F Exhaust OEM Parts Diagram

Submodel COMPETITION - YZ250FP - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

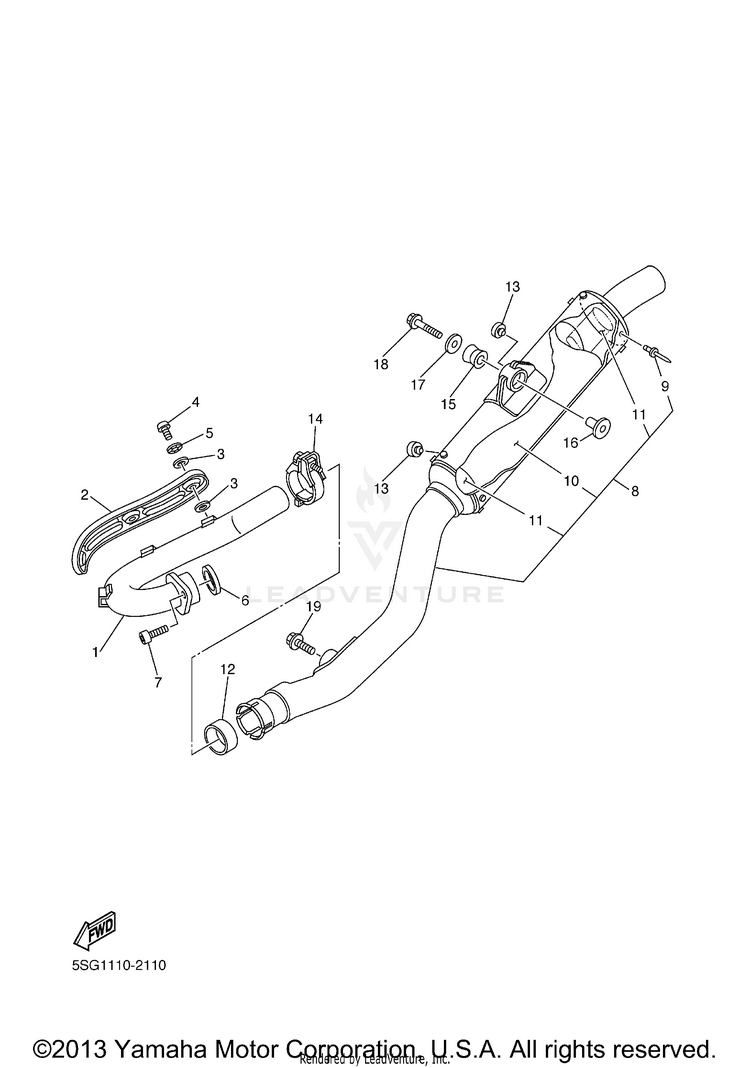

EXHAUST

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15UM-14611-00-00

(replaces part #
5NL-14611-00-00)

PIPE, EXHAUST 1$485.99$379.07Usually ships in 7-10 business days
25XC-14628-00-00

(replaces part #
5NL-14628-00-00)

PROTECTOR, EXHAUST PIPE$100.99$78.774 In-Stock
34BD-14766-00-00WASHER, PROTECTOR$5.99$4.6710+ In-Stock
498980-06008-00SCREW, BIND-$1.2210+ In-Stock
590206-06090-00WASHER, WAVE$9.49$7.4010+ In-Stock
65NL-14613-00-00GASKET, EXHAUST PIPE | INCL. IN TOP END KIT$15.49$12.0810+ In-Stock
791317-08020-00BOLT, HEX. SOCKET HEAD$3.05$2.6210+ In-Stock
85NL-14753-00-00SILENCER, EXHAUST$937.99$761.89Usually ships in 7-10 business days
990267-48910-00

(replaces part #
90267-48121-00)

RIVET, MONEL (F14)$9.49$8.54Usually ships in 7-10 business days
105NL-1469A-00-00FIBER$330.99$258.17Not Shipping
115BE-1469E-00-00FIBER$5.99$5.39Not Shipping
123VD-14755-00-00GASKET, SILENCER$41.99$32.7510+ In-Stock
1322W-24181-00-00DAMPER, LOCATING 1$7.49$5.8410+ In-Stock
145NL-14788-00-00BAND, SILENCER$25.99$21.31Usually ships in 7-10 business days
155BE-14747-00-00DAMPER, MUFFLER$11.99$9.353 In-Stock
1690387-08081-00

(replaces part #
90387-0814J-00)

COLLAR$9.49$7.408 In-Stock
1790201-081R9-00WASHER, PLATE$10.49$8.1810+ In-Stock
1895817-08030-00BOLT, FLANGE$9.49$7.408 In-Stock
1995817-08016-00BOLT,FLANGE (JN5)$5.49$4.2810+ In-Stock
