2002 Yamaha YZ250F Starter OEM Parts Diagram

Submodel COMPETITION - YZ250FP - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER

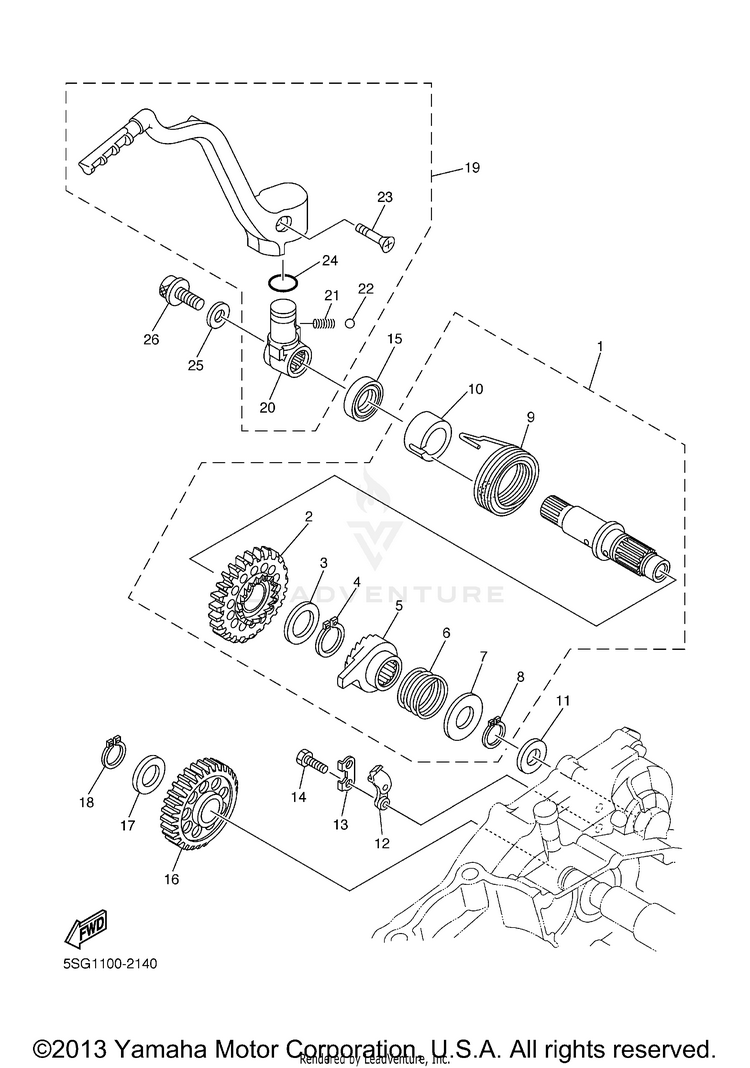

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15NL-15601-00-00KICK SHAFT ASSY$340.99$265.974 In-Stock
25NL-15641-10-00

(replaces part #
5NL-15641-00-00)

GEAR, KICK$120.99$94.37Usually ships in 7-10 business days
390201-20685-00WASHER, PLATE (T=0.5)$8.49$6.621 In-Stock
493410-20038-00CIRCLIP, S-TYPE$4.05$3.4810+ In-Stock
54GY-15671-00-00WHEEL, RATCHET$97.99$76.432 In-Stock
690501-16016-00SPRING, COMPRESSION$6.49$5.062 In-Stock
790201-167P7-00WASHER, PLATE$10.49$8.60Usually ships in 7-10 business days
899009-16400-00CIRCLIP$6.49$5.064 In-Stock
990508-30743-00SPRING, TORSION$20.99$16.371 In-Stock
105NL-15664-00-00GUIDE, SPRING$14.49$11.301 In-Stock
1190201-162H4-00WASHER, PLATE$10.49$8.188 In-Stock
125SG-15668-00-00STOPPER$93.99$73.314 In-Stock
13214-15686-00-00WASHER, LOCK$8.49$6.627 In-Stock
1497017-06016-00

(replaces part #
90101-06001-00)

BOLT$9.49$7.405 In-Stock
1593102-18278-00OIL SEAL | INCL. IN BOTTOM END KIT$13.49$10.5210+ In-Stock
165NL-15651-00-00GEAR, KICK IDLE$81.99$63.95Usually ships in 7-10 business days
1790201-177G4-00WASHER, PLATE$10.49$8.183 In-Stock
1899009-17400-00CIRCLIP$5.49$4.2810+ In-Stock
195NL-15620-10-00

(replaces part #
5NL-15620-00-00)

KICK CRANK ASSY$259.99$202.793 In-Stock
205NX-15621-01-00

(replaces part #
5NL-15621-00-00)

BOSS, KICK CRANK$60.99$47.57Usually ships in 7-10 business days
2190501-12081-00SPRING, BOSS STOPPER$9.49$7.4010+ In-Stock
2293507-32031-00

(replaces part #
93507-32009-00)

BALL$5.49$4.2810+ In-Stock
2390152-06010-00SCREW, COUNTERSUNK$10.49$8.1810+ In-Stock
2493210-17570-00O-RING$8.49$6.627 In-Stock
2590201-08326-00WASHER, PLATE$9.49$7.4010+ In-Stock
2690109-085E2-00

(replaces part #
90109-082G0-00)

BOLT$8.49$6.6210+ In-Stock
