2002 Yamaha YZF-R1 Electrical 2 OEM Parts Diagram

Submodel YZFR1 - YZFR1PC - 2002

Shop Aftermarket Parts

ELECTRICAL 2

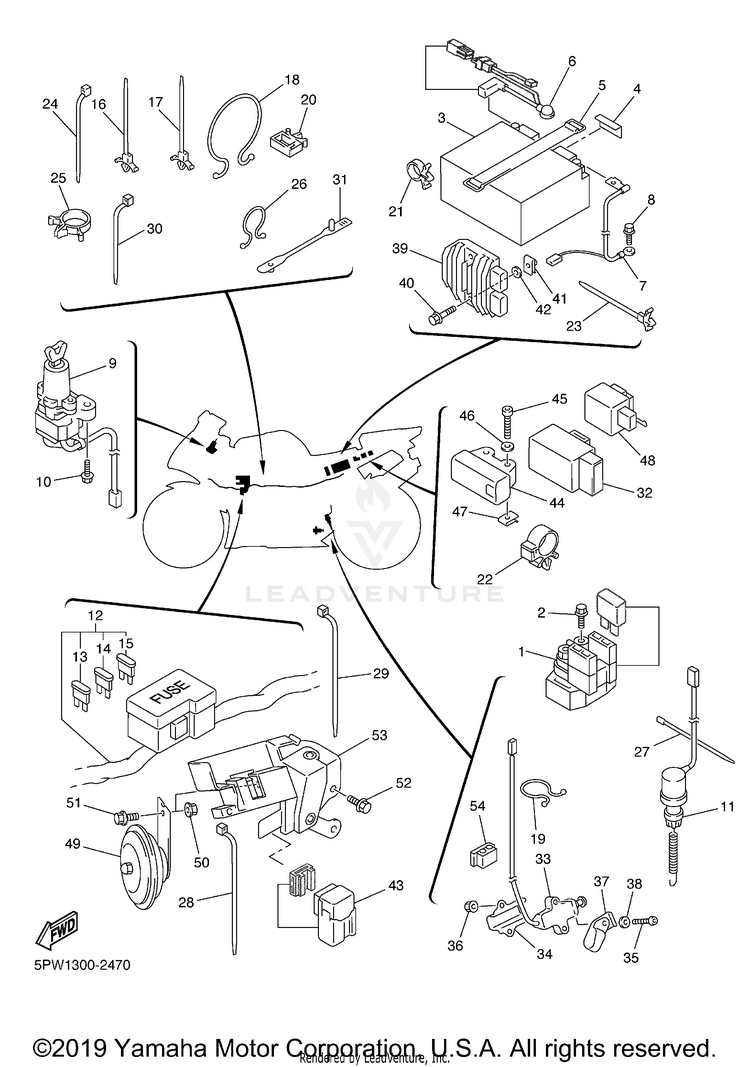

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15JW-81940-02-00

(replaces part #
5JW-81940-00-00)

STARTER RELAY ASSY (RC19-032)$133.99$104.516 In-Stock
136Y-82151-00-00FUSE (15A-BLUE)$6.49$5.0610+ In-Stock
295027-06008-00BOLT, FLANGE$7.99$6.234 In-Stock
3GT1-2B400-00-00

(replaces part #
4TX-82100-02-00)

GT12B4 GS BATTERY -$109.99$85.795 In-Stock
42AL-84553-00-00DAMPER$12.99$10.65Usually ships in 7-10 business days
55JJ-82131-00-00BAND, BATTERY$14.49$11.881 In-Stock
65PW-82115-00-00WIRE, PLUS LEAD$73.99$57.71Usually ships in 7-10 business days
65JW-82151-10-00FUSE (50A)$17.99$14.03
75PW-82116-00-00WIRE, MINUS LEAD$30.99$25.41Usually ships in 7-10 business days
895817-06012-00BOLT, FLANGE$1.95$1.7710+ In-Stock
95SL-82501-11-00

(replaces part #
5PW-82501-10-00)

MAIN SWITCH STEERING LOCK$334.99$261.29Usually ships in 7-10 business days
1090109-08196-00

(replaces part #
90109-080G5-00)

BOLT$9.49$7.4010+ In-Stock
115PW-82530-01-00

(replaces part #
5PW-82530-00-00)

STOP SWITCH ASSY$33.99$27.87Usually ships in 7-10 business days
125PW-82590-10-00WIRE HARNESS ASSY$626.84$488.94Usually ships in 7-10 business days
1367F-82151-50-00

(replaces part #
5JJ-82151-10-00)

FUSE (15A)$4.15$3.74Usually ships in 7-10 business days
145JJ-82151-20-00FUSE (20A-BL)$8.49$7.64Usually ships in 7-10 business days
1567F-82151-20-00

(replaces part #
5JJ-82151-90-00)

FUSE - 5 A - BLADE ($6.49$5.062 In-Stock
1690464-10112-00CLAMP$9.49$7.404 In-Stock
1790464-10112-00CLAMP$9.49$7.404 In-Stock
1890464-37257-00CLAMP$2.40$2.16Usually ships in 7-10 business days
1990464-16039-00CLAMP$10.49$8.60Usually ships in 7-10 business days
2090464-07004-00CLAMP$0.80$0.72Usually ships in 7-10 business days
2190464-13133-00CLAMP$9.49$8.541 In-Stock
2290464-16006-00CLAMP$10.49$8.182 In-Stock
2390464-10112-00CLAMP$9.49$7.404 In-Stock
2490464-15195-00CLAMP$4.41$3.7910+ In-Stock
2590464-15157-00CLAMP$9.49$7.407 In-Stock
2690464-16039-00CLAMP$10.49$8.60Usually ships in 7-10 business days
275Y9-12491-00-00CLAMP 1$7.49$6.744 In-Stock
2890464-15195-00CLAMP$4.41$3.7910+ In-Stock
2990464-15195-00CLAMP$4.41$3.7910+ In-Stock
3090464-13077-00CLAMP$9.49$7.4010+ In-Stock
3190464-17001-00CLAMP$1.15$1.04Usually ships in 7-10 business days
325PW-81950-00-00RELAY ASSY (5PW-00)$165.99$129.47Usually ships in 7-10 business days
335PX-82566-51-00

(replaces part #
5PX-82566-50-00)

SWITCH, SIDE STAND$118.99$92.81Usually ships in 7-10 business days
345JJ-82388-00-00PLATE$12.49$10.24Usually ships in 7-10 business days
3592017-05030-00BOLT, BUTTON HEAD$8.49$7.64Usually ships in 7-10 business days
3695607-05200-00NUT, U FLANGE$10.49$8.183 In-Stock
3790461-10002-00CLAMP$8.49$7.64Usually ships in 7-10 business days
3890201-057H5-00WASHER, PLATE$4.60$3.9610+ In-Stock
395JW-81960-00-00RECTIFIER & REGULATOR ASSY$403.99$315.11Usually ships in 7-10 business days
4095817-06030-00

(replaces part #
95827-06030-00)

BOLT,FLANGE$4.65$4.0010+ In-Stock
4190183-06069-00NUT, SPRING$7.49$5.8410+ In-Stock
4290202-06001-00WASHER, PLATE$6.99$6.29Usually ships in 7-10 business days
435JJ-81952-00-00HOLDER, RELAY$10.99$8.574 In-Stock
435JJ-81950-20-00RELAY ASSY (5JJ-20)$63.99$49.911 In-Stock
445PS-82576-02-00

(replaces part #
5PS-82576-01-00)

SENSOR, LEAN ANGLE$96.99$75.658 In-Stock
4591317-04025-00BOLT, HEX. SOCKET HEAD$1.95$1.76Usually ships in 7-10 business days
4690201-047A2-00WASHER, PLATE$4.00$3.445 In-Stock
4790183-04039-00NUT, spring$8.49$7.64Usually ships in 7-10 business days
484MY-83350-03-00

(replaces part #
4MY-83350-01-00)

FLASHER RELAY ASSY$56.99$44.454 In-Stock
492KG-83371-00-00

(replaces part #
3TB-83371-01-00)

HORN$93.99$73.31Usually ships in 7-10 business days
5095707-06500-00NUT, FLANGE$1.00$0.9910+ In-Stock
5195817-06012-00BOLT, FLANGE$1.95$1.7710+ In-Stock
5295817-06012-00BOLT, FLANGE$1.95$1.7710+ In-Stock
535PW-2134K-00-00BRACKET, HORN$42.40$34.77Usually ships in 7-10 business days
5490464-06004-00CLAMP$2.05$1.84Usually ships in 7-10 business days
