2002 Yamaha YZF-R1 Handle Switch Lever OEM Parts Diagram

Submodel YZFR1 - YZFR1PC - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

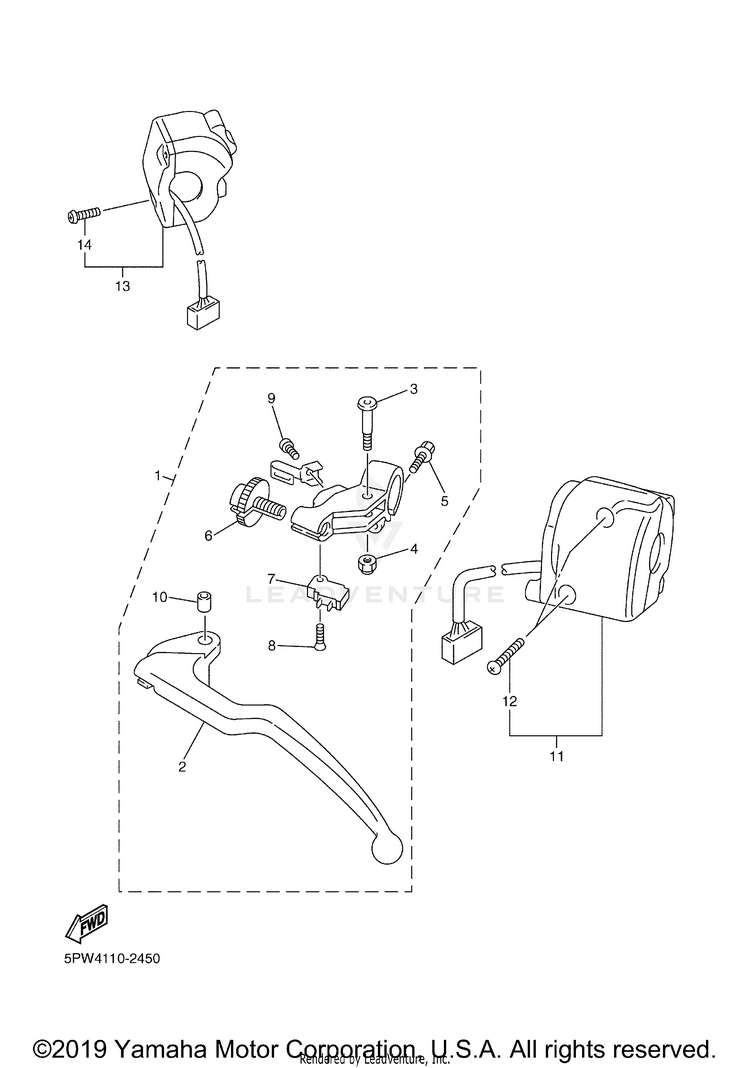

HANDLE SWITCH LEVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14XV-82910-15-00

(replaces part #
4XV-82910-13-00)

LEVER HOLDER ASSEMBLY (LEFT)$242.99$189.53Usually ships in 7-10 business days
24XV-83912-11-00LEVER 1$74.99$58.49Usually ships in 7-10 business days
32C0-83945-00-00

(replaces part #
4XV-83945-00-00)

BOLT, LEVER$11.99$9.355 In-Stock
495617-06100-00NUT, U$2.90$2.4910+ In-Stock
595027-06020-00BOLT, FLANGE-$2.8110+ In-Stock
65LV-83951-00-00BOLT, CABLE ADJUSTING$63.99$49.91Usually ships in 7-10 business days
74XV-82917-01-00SWITCH$88.99$69.41Usually ships in 7-10 business days
898707-03016-00SCREW, FLAT HEAD$9.49$8.54Usually ships in 7-10 business days
998507-04010-00SCREW, PAN HEAD$3.65$3.1410+ In-Stock
105JJ-83913-00-00COLLAR, LEVER 1$9.49$7.4010+ In-Stock
115PW-83973-00-00SWITCH, HANDLE 3$221.35$172.65Not Shipping
1298507-05025-00SCREW, PAN HEAD$9.49$7.4010+ In-Stock
135PW-83975-00-00SWITCH, HANDLE 2$183.99$143.51Usually ships in 7-10 business days
1490157-05057-00SCREW, PAN HEAD$3.85$3.463 In-Stock
