2003 Yamaha BIG BEAR 4X4 400 Front Brake OEM Parts Diagram

Submodel BIG BEAR 4WD - YFM400FWR - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

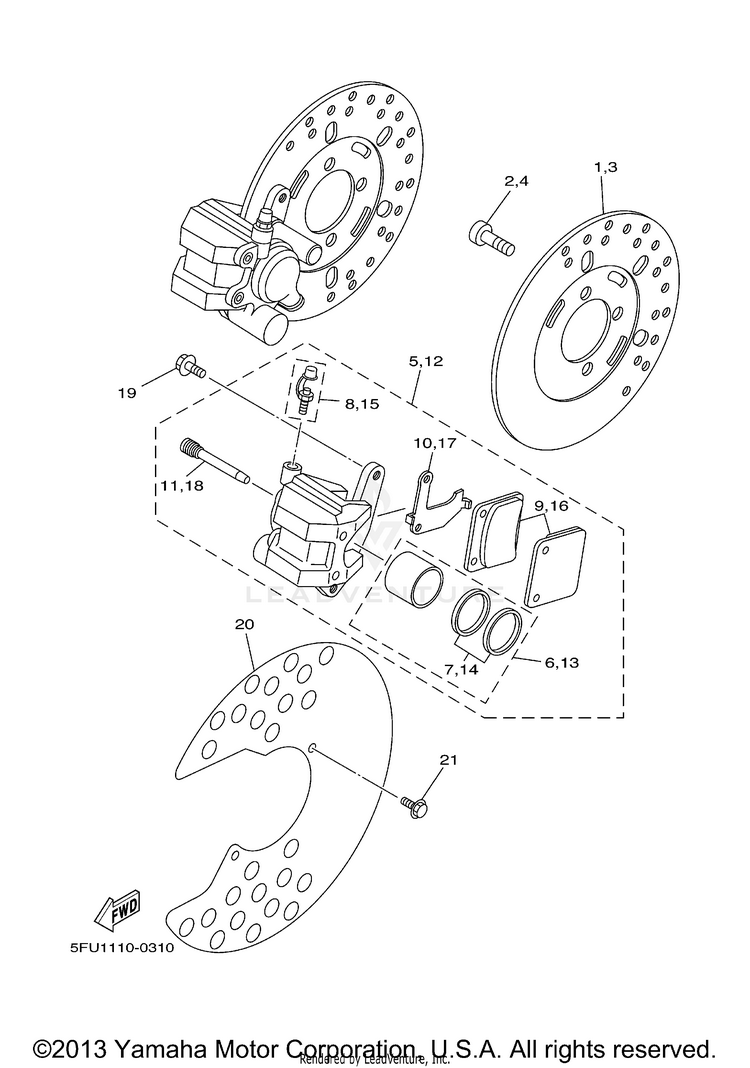

FRONT BRAKE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14KB-2582T-00-00DISC, BRAKE (LEFT)$275.99$215.27Usually ships in 7-10 business days
290109-08087-00

(replaces part #
90149-08268-00)

BOLT$3.15$2.7110+ In-Stock
34KB-2582T-00-00DISC, BRAKE (LEFT)$275.99$215.27Usually ships in 7-10 business days
490109-08087-00

(replaces part #
90149-08268-00)

BOLT$3.15$2.7110+ In-Stock
53GD-2580T-01-00

(replaces part #
3GD-2580T-00-00)

CALIPER ASSY (LEFT)$322.99$251.931 In-Stock
AFTERMARKET ALTERNATIVE
$39.99$24.9910+ In-Stock
63GD-W0057-00-00PISTON ASSY, CALIPER$71.99$56.154 In-Stock
73GD-W0047-00-00CALIPER SEAL KIT$16.49$12.8610+ In-Stock
836Y-W0048-00-00

(replaces part #
1UY-W0048-50-00)

BLEED SCREW KIT$10.99$8.5710+ In-Stock
93GD-W0045-01-00

(replaces part #
3GD-W0045-00-00)

BRAKE PAD KIT$38.99$30.4110+ In-Stock
AFTERMARKET ALTERNATIVE
$29.99$19.9910+ In-Stock
103GD-25827-00-00SHIM, CALIPER$11.99$9.3510+ In-Stock
113GD-25933-00-00PIN, PAD$31.99$24.957 In-Stock
123GD-2580U-01-00

(replaces part #
3GD-2580U-00-00)

CALIPER ASSY (RIGHT)$322.99$251.932 In-Stock
133GD-W0057-00-00PISTON ASSY, CALIPER$71.99$56.154 In-Stock
143GD-W0047-00-00CALIPER SEAL KIT$16.49$12.8610+ In-Stock
1536Y-W0048-00-00

(replaces part #
1UY-W0048-50-00)

BLEED SCREW KIT$10.99$8.5710+ In-Stock
163GD-W0045-01-00

(replaces part #
3GD-W0045-00-00)

BRAKE PAD KIT$38.99$30.4110+ In-Stock
AFTERMARKET ALTERNATIVE
$29.99$19.9910+ In-Stock
173GD-25828-00-00SHIM, CALIPER$4.80$4.134 In-Stock
183GD-25933-00-00PIN, PAD$31.99$24.957 In-Stock
1990105-08161-00

(replaces part #
90105-088B2-00)

BOLT, FLANGE$8.49$6.628 In-Stock
205FU-F514A-00-00RING, WHEEL 1 (LEFT)$152.99$128.41Usually ships in 7-10 business days
2195817-06012-00

(replaces part #
9582P-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
