2003 Yamaha BIG BEAR 4X4 400 Intake OEM Parts Diagram

Submodel BIG BEAR 4WD - YFM400FWR - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE

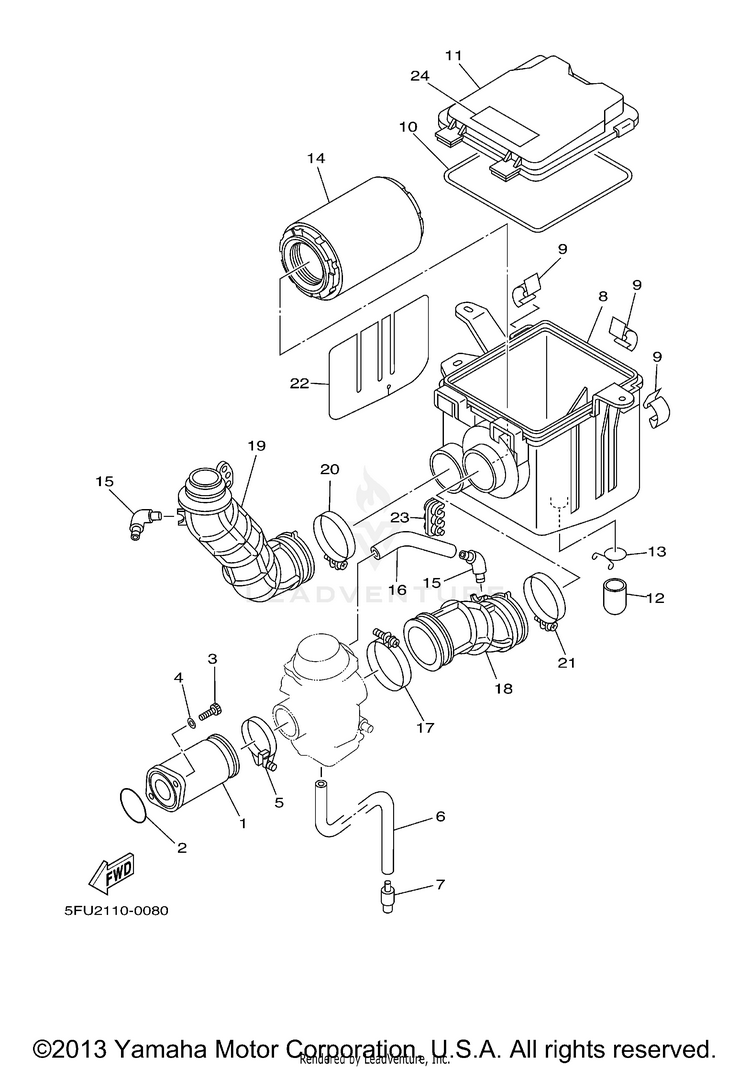

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15FU-13586-00-00JOINT, CARBURETOR 1$101.99$79.552 In-Stock
293210-44545-00O-RING$14.49$11.3010+ In-Stock
391317-08025-00BOLT$9.49$7.407 In-Stock
490201-08085-00WASHER, PLATE$10.49$8.189 In-Stock
590450-47002-00

(replaces part #
90450-47001-00)

HOSE CLAMP ASSY$9.49$7.4010+ In-Stock
624W-14193-00-00PIPE$45.99$35.874 In-Stock
791A21-07020-00

(replaces part #
91A20-07010-00)

HOSE$11.49$8.964 In-Stock
81P0-E4411-10-00

(replaces part #
4XE-E4411-00-00)

CASE, AIR CLEANER 1$52.99$41.33Usually ships in 7-10 business days
95ND-E4424-00-00

(replaces part #
JN6-E4424-00-00)

CLIP, CAP FITTING$6.49$5.06Not Shipping
101P0-E4462-00-00

(replaces part #
4XE-E4462-00-00)

SEAL$18.99$14.814 In-Stock
111P0-E4412-10-00

(replaces part #
4XE-E4412-00-00)

CAP, CLEANER CASE 1-$24.93Not Shipping
121P0-E4769-00-00

(replaces part #
4XE-E4457-00-00)

PIPE, DRAIN$5.99$4.672 In-Stock
131P0-E4438-00-00

(replaces part #
4XE-E4438-00-00)

CLIP, DRAIN CLEANER$4.20$3.61Not Shipping
141P0-E4450-00-00

(replaces part #
4XE-E4450-00-00)

ELEMENT ASSY, AIR CLEANER$39.99$31.195 In-Stock
1531A-14419-00-00PIPE$8.49$6.627 In-Stock
1690445-158C1-00HOSE (L110)$2.55$2.191 In-Stock
1790450-56001-00

(replaces part #
90460-56105-00)

HOSE CLAMP ASSY$19.49$15.2010+ In-Stock
185FU-E4453-00-00JOINT, AIR CLEANER 1$50.99$45.41Not Shipping
195FU-E4437-01-00

(replaces part #
5FU-E4437-00-00)

DUCT$140.99$109.97Not Shipping
2090450-58002-00

(replaces part #
90460-58124-00)

HOSE CLAMP ASSY$18.49$14.4210+ In-Stock
2190450-56001-00

(replaces part #
90460-56105-00)

HOSE CLAMP ASSY$19.49$15.2010+ In-Stock
224XE-E442F-10-00

(replaces part #
4XE-E442F-00-00)

PROTECTOR$7.99$7.19Usually ships in 7-10 business days
2390468-15020-00CLIP$8.49$7.64Usually ships in 7-10 business days
245FU-2179T-10-00PLATE, EPA 3 (CALIFORNIA) | FOR CALIFORNIA$1.95$1.76Usually ships in 7-10 business days
