2003 Yamaha BIG BEAR 4X4 400 Headlight OEM Parts Diagram

Submodel BIG BEAR 4WD - YFM40FR - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

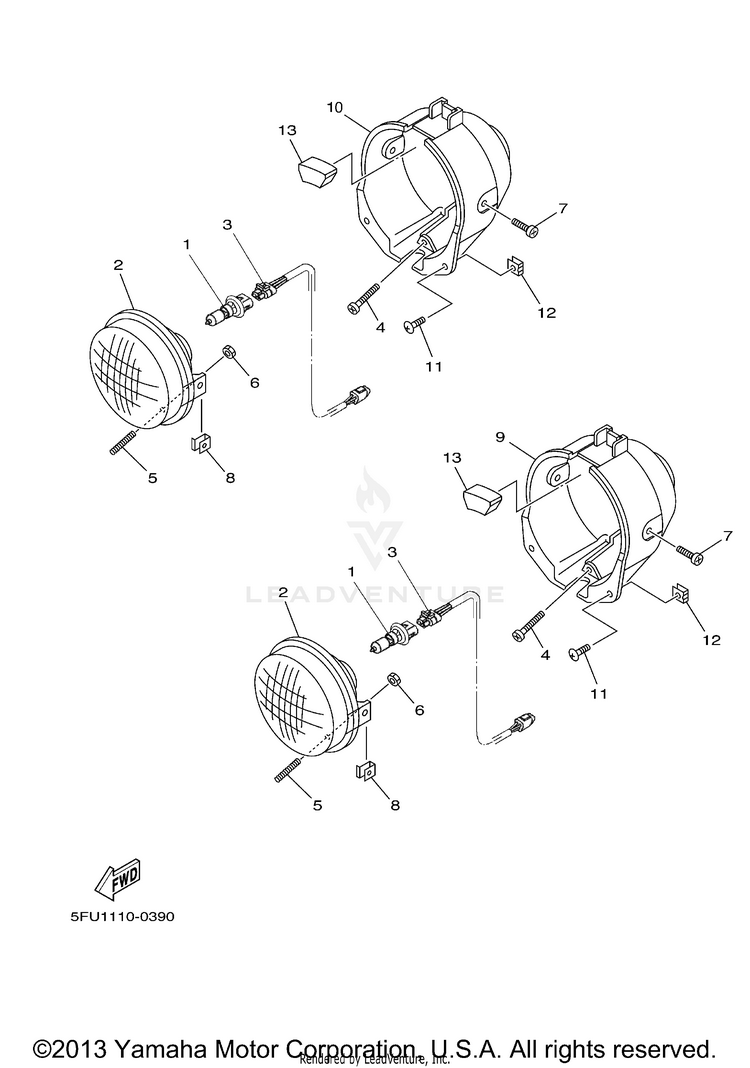

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14KB-84314-01-00

(replaces part #
5FU-H4314-00-00)

BULB (12V-30/30W)$42.99$33.5310+ In-Stock
25KM-84300-20-00

(replaces part #
5FU-H4320-00-00)

HEADLIGHT ASSY$70.99$55.376 In-Stock
35KM-84300-20-00

(replaces part #
5FU-H4340-00-00)

HEADLIGHT ASSY$70.99$55.376 In-Stock
498507-03540-00

(replaces part #
2GU-84331-00-00)

SCREW, PAN HEAD$2.35$2.0210+ In-Stock
52GU-84332-00-00SPRING, SCREW$8.49$6.628 In-Stock
62GU-84334-00-00NUT, ADJUSTING$8.49$6.627 In-Stock
798902-05016-00

(replaces part #
90150-05802-00)

SCREW, BIND$1.85$1.5910+ In-Stock
890183-05008-00NUT, SPRING$10.49$8.1810+ In-Stock
95FU-H4111-01-00

(replaces part #
5FU-H4111-00-00)

BODY, HEADLIGHT$4.10$3.69Usually ships in 7-10 business days
105FU-H4311-01-00

(replaces part #
5FU-H4311-00-00)

BODY, HEADLIGHT$5.49$4.94Not Shipping
1197707-50016-00SCREW, TRUSS HEAD TAPPING$1.85$1.5910+ In-Stock
1290183-05042-00NUT, SPRING-$3.2010+ In-Stock
134XE-F1717-00-00DAMPER$2.20$1.98Not Shipping
