2003 Yamaha BIG BEAR 4X4 400 Starter OEM Parts Diagram

Submodel BIG BEAR 4WD - YFM40FR - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER

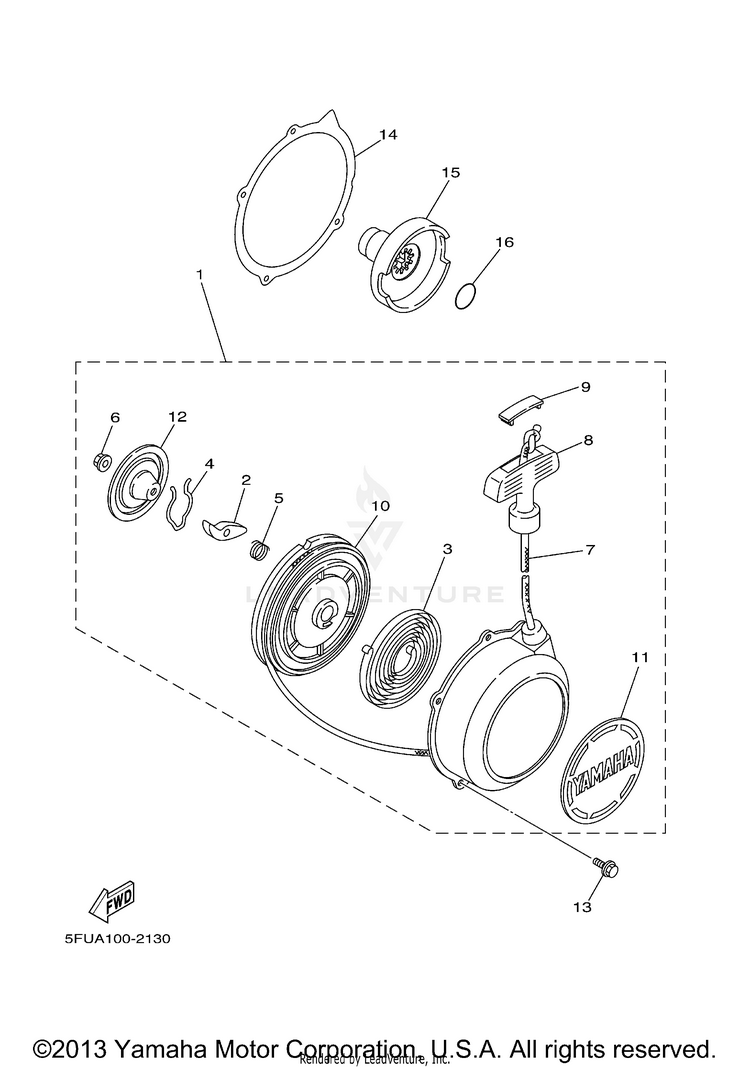

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11UY-15710-20-00STARTER ASSY$228.99$178.61Usually ships in 7-10 business days
221V-15741-00-00PAWL, DRIVE$25.99$20.272 In-Stock
321V-15713-00-00SPRING, STARTER$28.99$22.611 In-Stock
421V-15715-01-00SPRING, FRICTION$14.49$11.88Usually ships in 7-10 business days
521V-15767-00-00SPRING$8.49$6.623 In-Stock
695702-06500-00NUT, WITH WASHER$2.60$2.2410+ In-Stock
789A-15751-00-00

(replaces part #
21V-15751-00-00)

WIRE, STARTER$36.99$28.854 In-Stock
83X3-15755-00-00HANDLE, STARTER$32.99$25.733 In-Stock
921V-15779-00-00COVER$8.49$6.625 In-Stock
1024W-15714-00-00DRUM, SHEAVE$62.99$49.132 In-Stock
115GH-15443-01-00EMBLEM$16.49$13.52Not Shipping
1221V-15716-01-00PLATE, DRIVE$19.99$16.39Usually ships in 7-10 business days
1395027-06012-00BOLT, FLANGE$4.20$3.6110+ In-Stock
143GD-15699-00-00GASKET$28.99$22.615 In-Stock
151UY-15723-00-00PULLEY, STARTER$137.99$107.63Usually ships in 7-10 business days
1693210-16290-00O-RING$9.49$7.4010+ In-Stock
