2003 Yamaha BLASTER 200 Frame OEM Parts Diagram

Submodel BLASTER - YFS200R - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

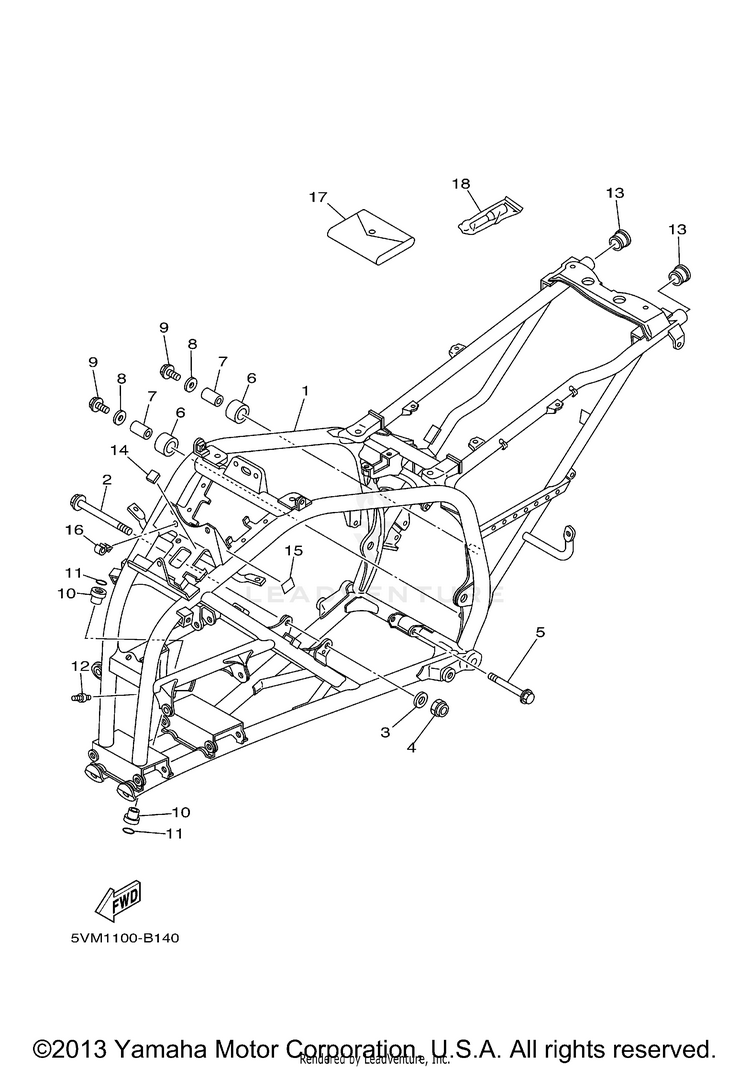

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15VM-21110-10-00

(replaces part #
5VM-21110-00-00)

FRAME COMP.$1,150.99$906.66Usually ships in 7-10 business days
290105-10712-00

(replaces part #
90105-10328-00)

BOLT, FLANGE$12.99$10.137 In-Stock
390201-10774-00WASHER, PLATE$10.49$8.1810+ In-Stock
490185-10060-00NUT, SELF-LOCKING$8.49$6.6210+ In-Stock
590105-08721-00BOLT, FLANGE$4.80$4.139 In-Stock
630X-22178-00-00TENSIONER$38.99$30.4110+ In-Stock
74V4-22184-00-00BUSH$4.80$4.1310+ In-Stock
890201-081R9-00

(replaces part #
90201-08753-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
995817-08012-00

(replaces part #
95807-08012-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
1090381-15040-00BUSH, SOLID$32.99$25.7310+ In-Stock
1193210-15566-00

(replaces part #
93210-15414-00)

O-RING$8.49$6.6210+ In-Stock
1293700-06M03-00

(replaces part #
93700-06004-00)

NIPPLE, GREASE$8.49$7.6010+ In-Stock
1390338-23172-00PLUG$13.49$10.525 In-Stock
147RB-14997-00-00SEAL$0.45$0.40Usually ships in 7-10 business days
153SP-21732-00-00SEAL 1$18.99$15.57Usually ships in 7-10 business days
1690464-08051-00CLAMP$6.49$5.063 In-Stock
172XJ-28100-00-00TOOL KIT$58.99$46.01Not Shipping
181NV-2811A-01-00GAUGE, AIR$62.99$49.133 In-Stock
