2003 Yamaha BLASTER 200 Front Master Cylinder OEM Parts Diagram

Submodel BLASTER - YFS200R - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT MASTER CYLINDER

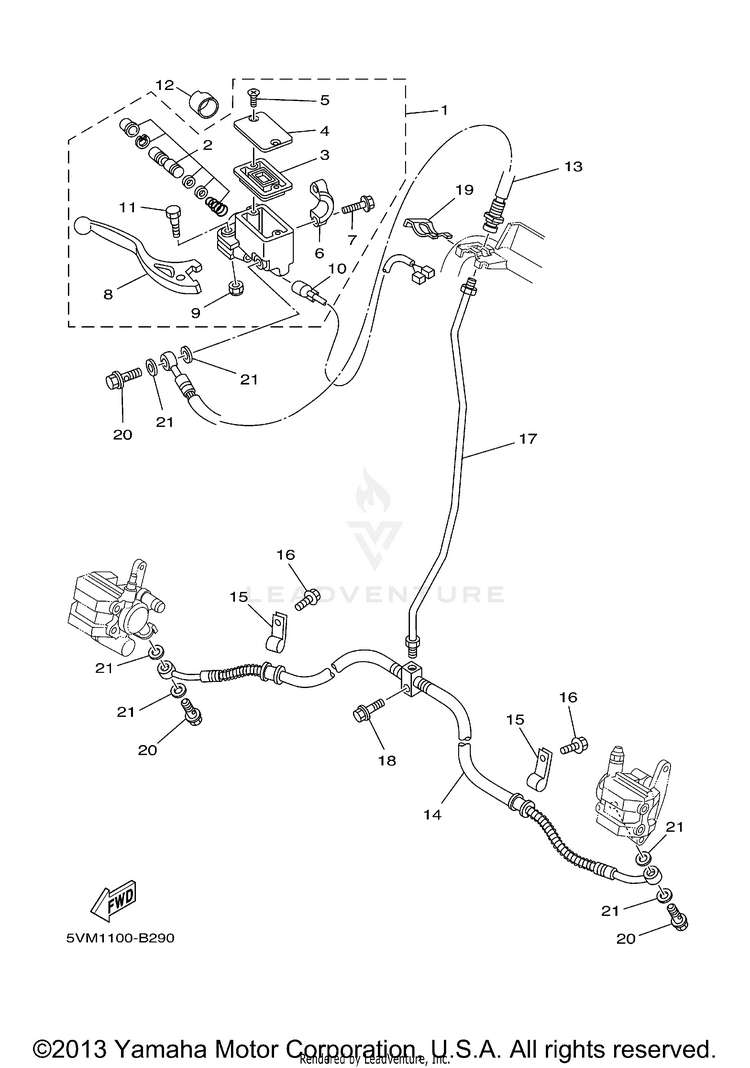

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15LP-2583T-03-00

(replaces part #
5LP-2583T-01-00)

MASTER CYLINDER ASSY$436.99$340.85Usually ships in 7-10 business days
AFTERMARKET ALTERNATIVE
$34.99$19.9910+ In-Stock
25LP-W0041-00-00CYLINDER KIT, MASTER$78.99$61.614 In-Stock
34L0-25854-00-00DIAPHRAGM, RESERVOIR$30.99$24.1710+ In-Stock
45LP-25852-02-00

(replaces part #
5LP-25852-01-00)

CAP, RESERVOIR$24.99$19.496 In-Stock
53D8-2589H-10-00

(replaces part #
4NK-2589H-00-00)

SCREW$8.49$6.6210+ In-Stock
65LP-25867-00-00BRACKET, MASTER CYLINDER$28.99$22.614 In-Stock
75MV-25833-00-00BOLT, FITTING$7.49$5.846 In-Stock
85LP-83922-00-00LEVER 2$42.99$33.53
995604-06100-00NUT, U$9.49$7.403 In-Stock
105LP-83980-00-00FRONT STOP SWITCH ASSY$70.99$55.372 In-Stock
115MV-2589F-00-00BOLT, LEVER$7.49$5.8410+ In-Stock
121UY-26259-00-00COLLAR$21.99$17.152 In-Stock
135VM-25872-01-00

(replaces part #
5VM-25872-00-00)

HOSE, BRAKE 1$34.99$28.69Usually ships in 7-10 business days
145VM-25873-00-00HOSE, BRAKE 2$190.99$148.97Usually ships in 7-10 business days
155VM-25886-00-00HOLDER, BRAKE HOSE$4.40$3.96Not Shipping
1695817-06016-00

(replaces part #
95807-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
175VM-25871-00-00PIPE, BRAKE$13.49$11.06Usually ships in 7-10 business days
1895817-06025-00

(replaces part #
95827-06025-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
192GU-25866-00-00CIRCLIP$10.99$8.573 In-Stock
2090401-10159-00BOLT, UNION$12.49$9.7410+ In-Stock
2190201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
