2003 Yamaha RAPTOR 660 Headlight OEM Parts Diagram

Submodel RAPTOR 660R - YFM660RR - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

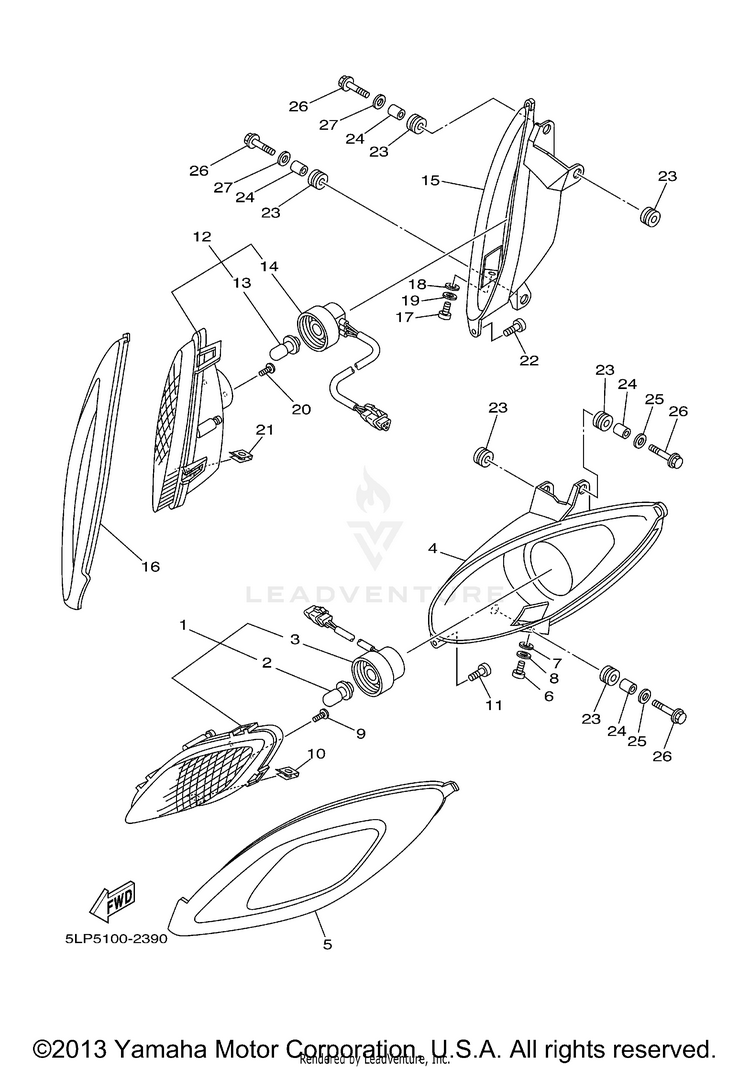

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15LP-84310-02-00HEADLIGHT UNIT ASSY$113.99$89.33Not Shipping
24KB-84314-01-00BULB (12V-30/30W)$42.99$33.5310+ In-Stock
35LP-84340-00-00SOCKET CORD ASSY 1$40.99$31.97Not Shipping
45LP-84111-00-00BODY, HEADLIGHT$26.99$21.054 In-Stock
55LP-8411G-00-00RIM$41.99$32.753 In-Stock
65LP-8433E-00-00SCREW, ADJUSTING$4.50$3.87Not Shipping
75LP-84344-00-00WASHER, PLAIN$2.20$1.89Not Shipping
85LP-84344-10-00WASHER, PLAIN$2.20$1.89Not Shipping
95LP-84331-00-00SCREW, RIM ADJUSTING$2.20$1.89Not Shipping
105LP-84334-00-00NUT, ADJUSTING$8.49$6.624 In-Stock
115LP-84526-00-00SCREW$1.85$1.59Not Shipping
125LP-84310-12-00HEADLIGHT UNIT ASSY$110.99$89.78Not Shipping
134KB-84314-01-00BULB (12V-30/30W)$42.99$33.5310+ In-Stock
145LP-84340-00-00SOCKET CORD ASSY 1$40.99$31.97Not Shipping
155LP-84111-10-00BODY, HEADLIGHT$26.99$21.057 In-Stock
165LP-8411G-10-00RIM$46.99$38.533 In-Stock
175LP-8433E-00-00SCREW, ADJUSTING$4.50$3.87Not Shipping
185LP-84344-00-00WASHER, PLAIN$2.20$1.89Not Shipping
195LP-84344-10-00WASHER, PLAIN$2.20$1.89Not Shipping
205LP-84331-00-00SCREW, RIM ADJUSTING$2.20$1.89Not Shipping
215LP-84334-00-00NUT, ADJUSTING$8.49$6.624 In-Stock
225LP-84526-00-00SCREW$1.85$1.59Not Shipping
2390480-14023-00

(replaces part #
90480-14102-00)

GROMMET$8.49$6.6210+ In-Stock
2490560-07007-00

(replaces part #
90387-06595-00)

SPACER$10.49$8.189 In-Stock
2590201-06557-00WASHER, PLATE$3.55$3.0510+ In-Stock
2695817-06025-00

(replaces part #
95807-06025-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
2790201-06557-00WASHER, PLATE$3.55$3.0510+ In-Stock
