2003 Yamaha RAPTOR 660 Steering OEM Parts Diagram

Submodel RAPTOR 660R - YFM660RR - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

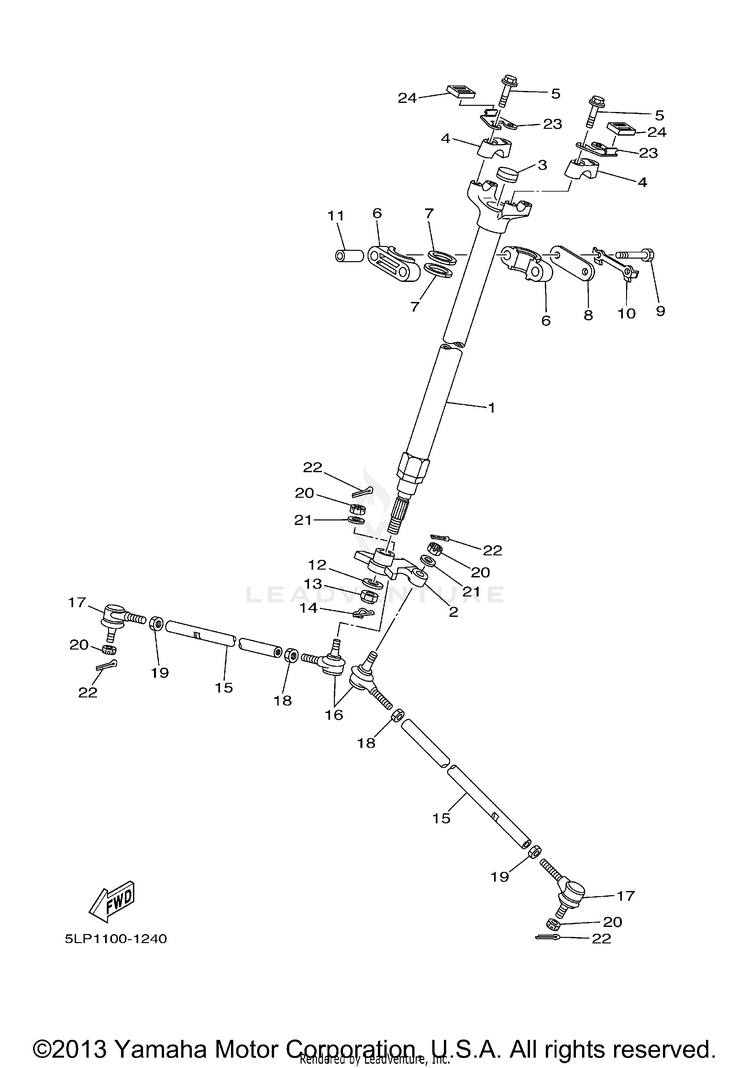

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15LP-23813-10-00COLUMN, STEERING 2$373.99$291.71Usually ships in 7-10 business days
25LP-23816-00-00ARM, PITMAN$105.99$82.67Not Shipping
390336-28053-00PLUG, TAPER$11.49$8.964 In-Stock
41E6-23441-00-00

(replaces part #
8K1-23814-00-00)

HOLDER, HANDLE UPR (1E6-23441-0$30.99$24.1710+ In-Stock
595817-08035-00

(replaces part #
95827-08035-00)

BOLT, FLANGE$10.49$8.1810+ In-Stock
61UY-23812-00-00PLANE BEARING, STEERING$26.99$21.0510+ In-Stock
793112-31011-00OIL SEAL$10.49$8.1810+ In-Stock
83GD-23868-01-00

(replaces part #
1UY-23868-01-00)

BRACKET, STEERING LOWER$21.99$17.155 In-Stock
997017-08060-00

(replaces part #
97027-08060-00)

BOLT$11.49$8.968 In-Stock
101UY-23894-01-00WASHER, LOCK 1$8.49$6.6210+ In-Stock
1190387-106T4-00

(replaces part #
90387-090R0-00)

COLLAR (903-87090-R0-00)$16.49$12.8610+ In-Stock
1290201-14226-00WASHER, PLATE$6.49$5.0610+ In-Stock
1390185-14150-00NUT, SELF-LOCKING$16.49$12.861 In-Stock
1490468-16191-00CLIP$9.49$7.4010+ In-Stock
155LP-23831-00-00ROD, TIE$39.99$31.1910+ In-Stock
AFTERMARKET ALTERNATIVE
$99.99$89.9910+ In-Stock
161UY-23841-01-00JOINT, UNIVERSAL 1$83.99$65.517 In-Stock
AFTERMARKET ALTERNATIVE
$29.99$24.9910+ In-Stock
171UY-23845-01-00JOINT, UNIVERSAL 2$83.99$65.519 In-Stock
AFTERMARKET ALTERNATIVE
$29.99$24.9910+ In-Stock
1895317-10700-00

(replaces part #
95307-10700-00)

NUT (95307-10700-00 )$9.49$7.406 In-Stock
1990170-10186-00NUT | (L.H. THREAD)$11.49$8.964 In-Stock
2090171-10001-00

(replaces part #
90171-10046-00)

NUT, CASTLE$3.55$3.0510+ In-Stock
2190209-10229-00WASHER$8.49$6.6210+ In-Stock
2291490-20025-00

(replaces part #
91401-20020-00)

PIN, COTTER$1.99$1.7110+ In-Stock
235LP-23881-00-00BRACKET 1$5.49$4.28Not Shipping
245LP-23858-00-00SPACER$7.49$5.848 In-Stock
