2003 Yamaha V-Star 650 Silverado Starter Clutch OEM Parts Diagram

Submodel V-STAR SILVERADO - XVS650ATRC - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

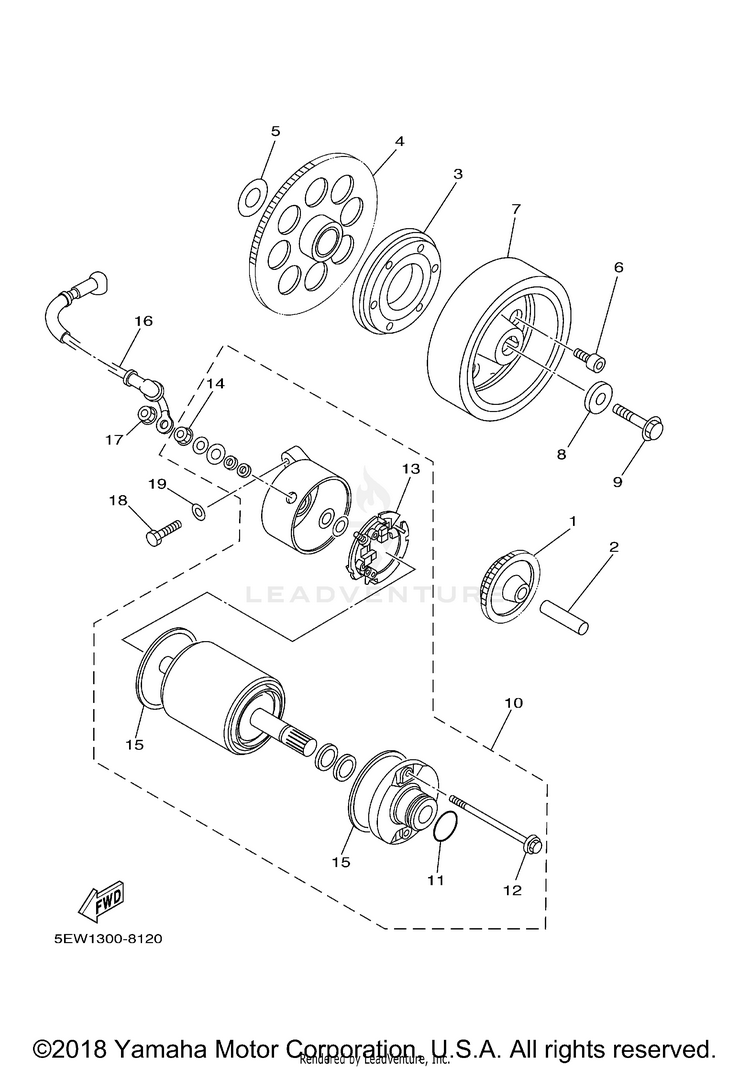

STARTER CLUTCH

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
122U-15512-00-00GEAR, IDLER 1 (12T/50T)$83.99$65.51Usually ships in 7-10 business days
25H0-15521-00-00SHAFT 1$34.99$28.69Usually ships in 7-10 business days
34TR-15590-00-00STARTER ONE-WAY ASSY$318.99$248.81Usually ships in 7-10 business days
44VR-15517-01-00GEAR, IDLER 2 (66T)$230.99$180.17Usually ships in 7-10 business days
590201-256K6-00WASHER, PLATE (0.9T)$4.75$4.089 In-Stock
691317-08020-00BOLT, HEX. SOCKET HEAD$3.05$2.6210+ In-Stock
74VR-81450-02-00

(replaces part #
4VR-81450-00-00)

ROTOR ASSY$350.99$290.02Usually ships in 7-10 business days
890201-107K6-00WASHER, PLATE$13.49$11.06Usually ships in 7-10 business days
995814-10040-00BOLT, FLANGE$5.49$4.287 In-Stock
103JB-81890-00-00MOTOR ASSY$610.99$494.68Usually ships in 7-10 business days
1193210-24235-00O-RING$8.49$7.078 In-Stock
123HE-81826-00-00BOLT$17.49$14.34Usually ships in 7-10 business days
133KS-81840-00-00BRUSH HOLDER ASSY$172.99$137.28Usually ships in 7-10 business days
144XV-8182A-00-00NUT$8.49$6.626 In-Stock
1535C-81844-00-00

(replaces part #
11H-81844-00-00)

GASKET$53.99$42.11Usually ships in 7-10 business days
164VR-81815-00-00CORD, STARTER MOTOR$68.99$53.81Usually ships in 7-10 business days
174XV-8182A-00-00NUT$8.49$6.626 In-Stock
1897070-06025-00BOLT$1.75$1.58Usually ships in 7-10 business days
1992990-06600-00WASHER, PLAIN (646)$2.95$2.797 In-Stock
