2003 Yamaha Warrior XV1700 Front Brake Caliper OEM Parts Diagram

Submodel ROAD STAR WARRIOR - XV1700PCRC - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT BRAKE CALIPER

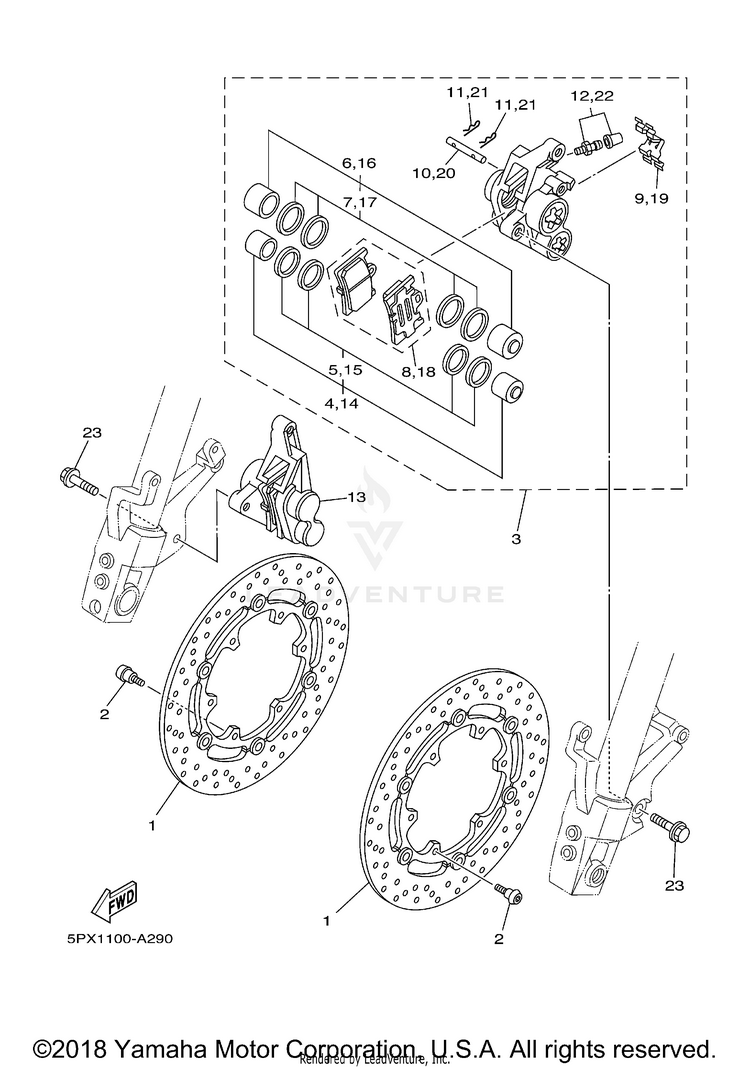

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15PX-2581T-00-00DISK BRAKE ASSY$194.99$154.29Usually ships in 7-10 business days
290109-06254-00

(replaces part #
90109-064G6-00)

BOLT$3.60$3.1010+ In-Stock
35PX-2580T-00-00CALIPER ASSY (LEFT)$501.99$419.66Usually ships in 7-10 business days
44SV-25802-00-00

(replaces part #
4SV-W0057-00-00)

PISTON ASSY, CALIPER$168.99$131.81Usually ships in 7-10 business days
53MA-25803-10-00

(replaces part #
3MA-W0047-10-00)

CALIPER SEAL KIT$60.99$47.57Usually ships in 7-10 business days
64SV-25802-10-00

(replaces part #
4SV-W0057-10-00)

PISTON ASSY, CALIPER$212.99$166.13Usually ships in 7-10 business days
73GM-25803-10-00

(replaces part #
3GM-W0047-10-00)

CALIPER SEAL KIT$58.99$46.012 In-Stock
85JJ-25805-00-00

(replaces part #
5JJ-W0045-00-00)

BRAKE PAD KIT$64.99$55.011 In-Stock
94SV-25919-00-00SUPPORT, PAD$38.99$31.97Usually ships in 7-10 business days
104SV-25924-00-00PIN, PAD$46.99$36.656 In-Stock
113GM-25925-00-00CLIP$12.99$10.136 In-Stock
121J3-W0048-00-00

(replaces part #
51H-W0048-00-00)

BLEED SCREW KIT$33.99$27.87Usually ships in 7-10 business days
135PX-2580U-00-00CALIPER ASSY (RIGHT)$398.99$311.21Usually ships in 7-10 business days
144SV-25802-00-00

(replaces part #
4SV-W0057-00-00)

PISTON ASSY, CALIPER$168.99$131.81Usually ships in 7-10 business days
153MA-25803-10-00

(replaces part #
3MA-W0047-10-00)

CALIPER SEAL KIT$60.99$47.57Usually ships in 7-10 business days
164SV-25802-10-00

(replaces part #
4SV-W0057-10-00)

PISTON ASSY, CALIPER$212.99$166.13Usually ships in 7-10 business days
173GM-25803-10-00

(replaces part #
3GM-W0047-10-00)

CALIPER SEAL KIT$58.99$46.012 In-Stock
185JJ-25805-00-00

(replaces part #
5JJ-W0045-00-00)

BRAKE PAD KIT$64.99$55.011 In-Stock
194SV-25919-00-00SUPPORT, PAD$38.99$31.97Usually ships in 7-10 business days
204SV-25924-00-00PIN, PAD$46.99$36.656 In-Stock
213GM-25925-00-00CLIP$12.99$10.136 In-Stock
221J3-W0048-00-00

(replaces part #
51H-W0048-00-00)

BLEED SCREW KIT$33.99$27.87Usually ships in 7-10 business days
2390105-105A7-00BOLT, FLANGE$9.49$7.4010+ In-Stock

Get additional RM Cash on OEM purchases!

Select parts to add, then click
