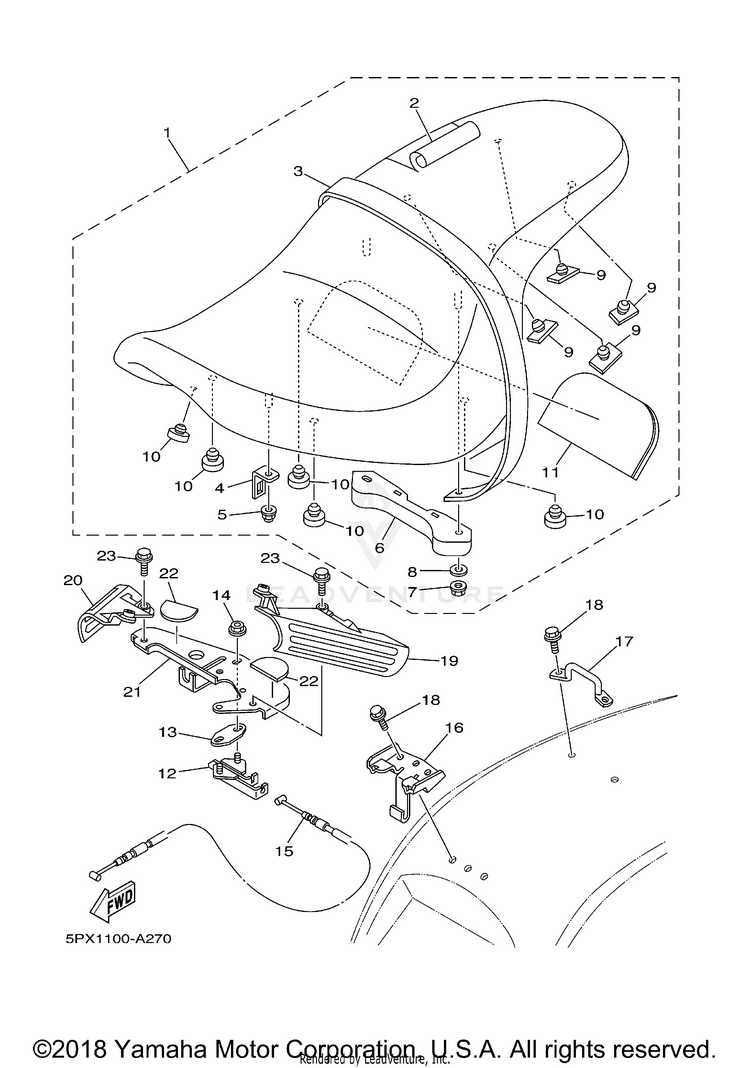

2003 Yamaha Warrior XV1700 Seat OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	5PX-24730-00-00	DOUBLE SEAT ASSY	$414.91	$323.63	Not Shipping
2	5PX-2470F-00-00	SEAT COVER COMP.	$188.99	$147.41	Usually ships in 7-10 business days
3	5PX-24720-00-00	SEAT BAND ASSY	$20.99	$17.21	Usually ships in 7-10 business days
4	5PX-24719-00-00	STAY, REAR	$6.49	$5.84	Usually ships in 7-10 business days
5	95707-06500-00	NUT, FLANGE	$1.00	$0.99	10+ In-Stock
6	5PX-2471A-00-00	STAY, SEAT	$14.99	$12.29	Usually ships in 7-10 business days
7	95604-06200-00 (replaces part # 95607-06200-00)	NUT, U FLANGE	$2.95	$2.54	10+ In-Stock
8	90201-06380-00	WASHER, PLATE	-	$0.71	10+ In-Stock
9	509-24724-00-00	DAMPER, SEAT	$11.99	$9.35	3 In-Stock
10	22W-24741-00-00	PAD, SEAT	$9.49	$7.40	10+ In-Stock
11	5PX-24723-01-00	DAMPER, SEAT	$4.70	$4.23	Usually ships in 7-10 business days
12	4BP-24780-00-00	SEAT LOCK ASSY	$105.99	$82.67	Usually ships in 7-10 business days
13	4BP-24792-00-00	PLATE	$10.99	$9.01	Usually ships in 7-10 business days
14	95707-06500-00	NUT, FLANGE	$1.00	$0.99	10+ In-Stock
15	5PX-2478E-00-00	CABLE, SEAT LOCK	$22.99	$18.85	Usually ships in 7-10 business days
16	5PX-2475N-00-00	BRACKET	$16.99	$13.93	Usually ships in 7-10 business days
17	5PX-2475R-00-00	BRACKET 6	$29.99	$24.59	Usually ships in 7-10 business days
18	95027-08016-00	BOLT, FLANGE	$9.49	$8.54	6 In-Stock
19	5PX-2476U-00-00	PROTECTOR, 1	$33.99	$27.87	Usually ships in 7-10 business days
20	5PX-2476V-00-00	PROTECTOR, 2	$15.49	$12.70	Usually ships in 7-10 business days
21	5PX-21341-00-00	BRACKET, SEAT 1	$32.99	$27.05	Usually ships in 7-10 business days
22	5PX-21735-00-00	SEAL 2	$11.49	$9.42	Usually ships in 7-10 business days
23	95817-08020-00	BOLT, FLANGE	$10.49	$8.18	1 In-Stock
