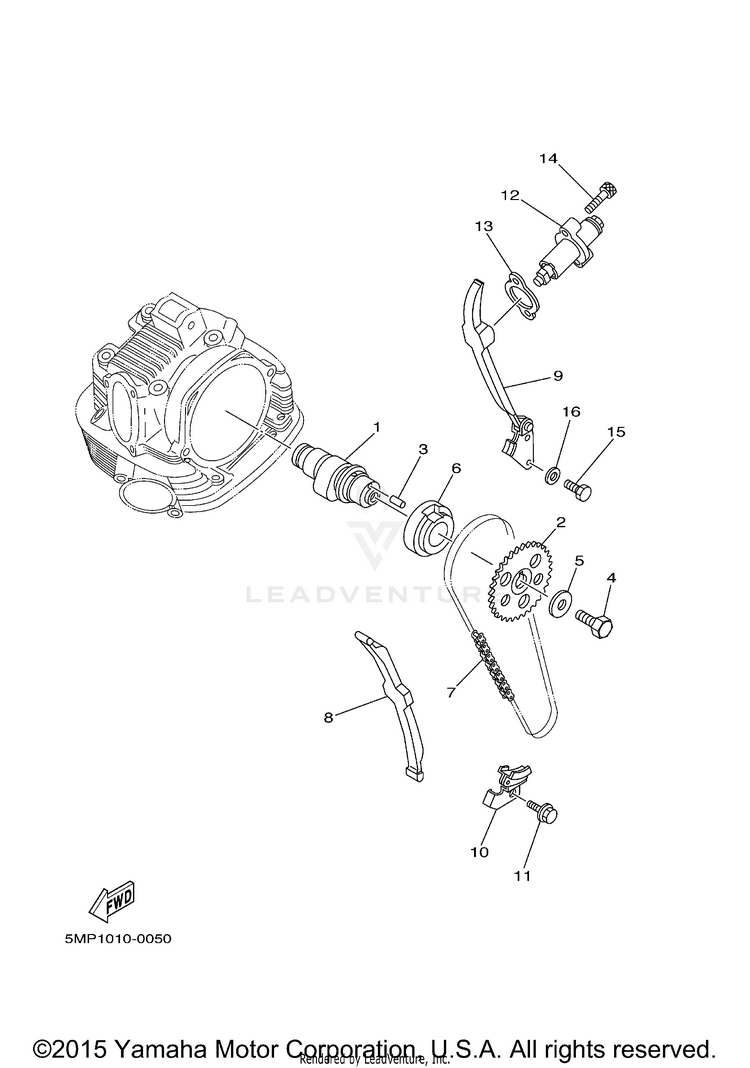

CAMSHAFT CHAIN

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11KH-12171-01-00

(replaces part #
1KH-12171-00-00)

CAMSHAFT 1$174.99$136.494 In-Stock
25MP-12176-00-00SPROCKET, CAM CHAIN$143.99$112.31Usually ships in 7-10 business days
393604-10011-00PIN, DOWEL$8.49$6.6210+ In-Stock
490101-10303-00BOLT$10.49$8.184 In-Stock
590201-10774-00

(replaces part #
90201-10591-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
690387-255F3-00COLLAR$49.99$38.994 In-Stock
794591-87104-00CHAIN$24.99$19.492 In-Stock
85MP-12231-00-00GUIDE, STOPPER 1$127.99$99.83Usually ships in 7-10 business days
95MP-12241-00-00GUIDE, STOPPER 2$205.99$160.67Usually ships in 7-10 business days
105MP-12256-00-00COVER, CHAIN$30.99$25.41Usually ships in 7-10 business days
1195027-08016-00BOLT, FLANGE$9.49$8.546 In-Stock
125MP-12210-00-00TENSIONER ASSY, CAM CHAIN$129.99$101.39Usually ships in 7-10 business days
134FM-12213-00-00GASKET, TENSIONER CASE$9.49$7.4010+ In-Stock
1491317-06025-00BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
1597017-06016-00

(replaces part #
97027-06016-00)

BOLT$9.49$7.405 In-Stock
1692907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
