2004 Yamaha TTR225 Crankcase OEM Parts Diagram

Submodel TT-R225 - TTR225SC - 2004

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

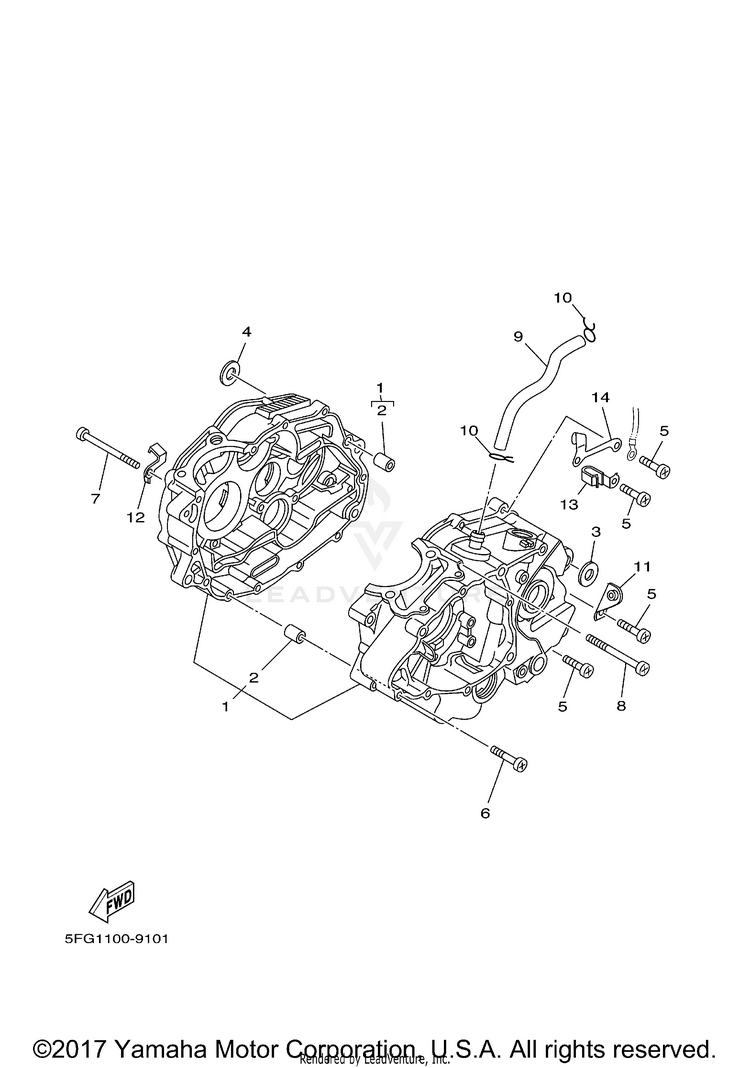

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14VW-WE515-00-00CRANKCASE ASSY$406.99$317.45Usually ships in 7-10 business days
299530-12016-00PIN, DOWEL$4.89$4.2110+ In-Stock
390387-125F1-00COLLAR$4.60$4.14Usually ships in 7-10 business days
490387-125F1-00COLLAR$4.60$4.14Usually ships in 7-10 business days
598517-06030-00

(replaces part #
98507-06030-00)

SCREW, PAN HEAD$3.45$2.97
698507-06040-00SCREW, PAN HEAD$3.22$2.779 In-Stock
798507-06090-00SCREW, PAN HEAD$10.49$8.182 In-Stock
898507-06085-00SCREW, PAN HEAD$6.99$6.29Usually ships in 7-10 business days
91KH-11166-01-00PIPE, BREATHER 1$38.99$31.971 In-Stock
1090467-14015-00CLIP$9.49$7.407 In-Stock
1190465-08200-00CLAMP$4.70$4.23Usually ships in 7-10 business days
1290462-08224-00CLAMP$4.20$3.78Usually ships in 7-10 business days
1390465-06376-00

(replaces part #
90465-08127-00)

CLAMP$10.49$8.184 In-Stock
144JG-15441-02-00HOLDER, CLUTCH CABLE$18.49$15.16Usually ships in 7-10 business days
