2004 Yamaha TTR225 Front Brake Caliper OEM Parts Diagram

Submodel TT-R225 - TTR225SC - 2004

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

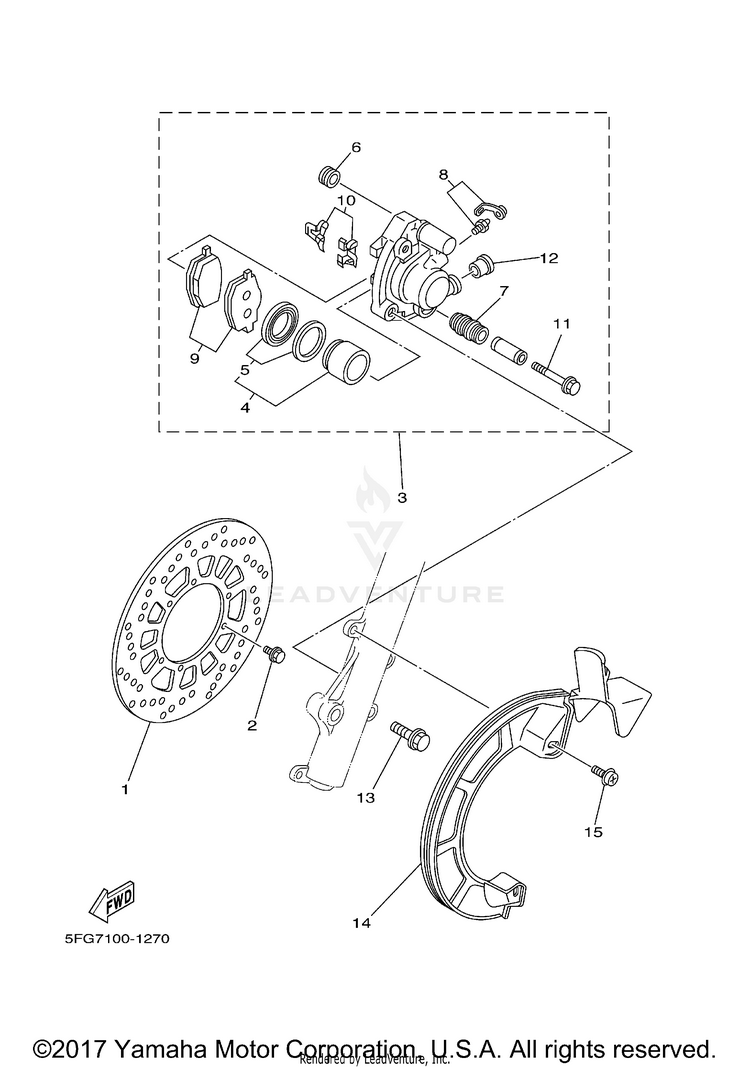

FRONT BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15XT-2582T-00-00

(replaces part #
4JG-2582T-10-00)

DISC, BRAKE (LEFT)$100.99$78.774 In-Stock
290105-06109-00

(replaces part #
90109-065G4-00)

BOLT, FLANGE$10.49$8.1810+ In-Stock
33BN-2580T-11-00

(replaces part #
3BN-2580T-10-00)

CALIPER ASSY (LEFT)$332.99$275.78Usually ships in 7-10 business days
434X-W0057-00-00PISTON ASSY, CALIPER$139.99$109.19Usually ships in 7-10 business days
534X-W0047-00-00CALIPER SEAL KIT$49.99$38.994 In-Stock
65R2-25937-00-00BOOT 2$41.99$32.752 In-Stock
734X-25937-00-00BOOT 2$34.99$28.69Usually ships in 7-10 business days
815B-W0048-00-00

(replaces part #
51L-W0048-00-00)

BLEED SCREW KIT$21.99$17.157 In-Stock
93BN-25805-02-00

(replaces part #
3BN-W0045-01-00)

BRAKE PAD KIT$40.99$31.973 In-Stock
1034X-25919-00-00SUPPORT, PAD$62.99$49.13Usually ships in 7-10 business days
115KN-25926-01-00

(replaces part #
34X-25926-00-00)

BOLT$9.49$8.545 In-Stock
1234X-25845-00-00CAP, INDICATOR$17.99$14.031 In-Stock
1390105-10638-00BOLT, WASHER BASED$8.49$6.6210+ In-Stock
144AN-F5715-20-00COVER 1$19.49$15.98Usually ships in 7-10 business days
1590159-06181-00SCREW, WITH WASHER$4.00$3.449 In-Stock
