2004 Yamaha V-Star 650 Silverado Cylinder OEM Parts Diagram

Submodel V STAR SILVERADO - XVS65ATSC - 2004

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CYLINDER

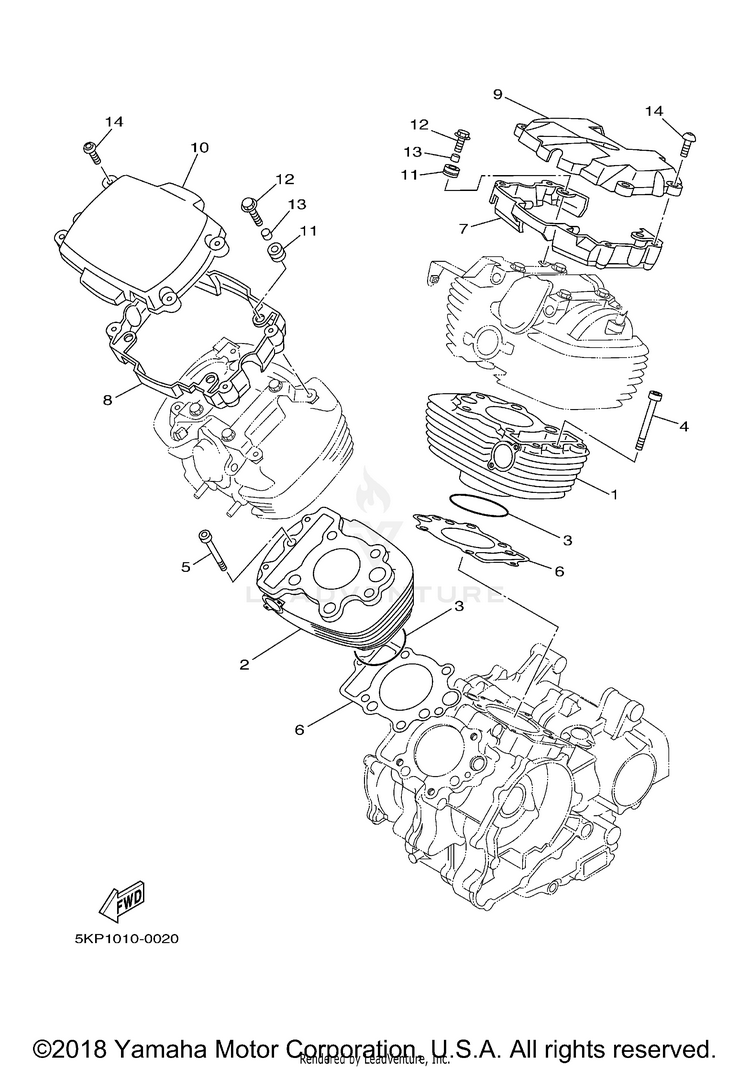

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14VR-11310-20-00CYLINDER$327.99$271.62Usually ships in 7-10 business days
24VR-11320-20-00CYLINDER 2$326.99$271.62Usually ships in 7-10 business days
393210-84724-00O-RING$11.49$8.9610+ In-Stock
491317-06085-00BOLT$6.49$5.84Usually ships in 7-10 business days
591317-06085-00

(replaces part #
90110-06011-00)

BOLT$6.49$5.84Usually ships in 7-10 business days
64VR-11351-01-00

(replaces part #
4VR-11351-00-00)

GASKET, CYLINDER$24.99$20.49Usually ships in 7-10 business days
74VR-11191-00-00COVER, CYLINDER HEAD 1$133.99$104.51Usually ships in 7-10 business days
84VR-11192-00-00COVER, CYLINDER HEAD 2$244.99$191.09Usually ships in 7-10 business days
94VR-11190-10-00COVER, CYLINDER HEAD 1 | UR CA 5SCM$123.99$96.71Usually ships in 7-10 business days
94VR-11190-00-00COVER, CYLINDER HEAD 1 | UR 49 5SCJ$113.99$88.91Usually ships in 7-10 business days
104VR-1111N-00-00COVER 2$142.99$111.53Usually ships in 7-10 business days
1190480-13018-00GROMMET$9.49$7.404 In-Stock
1290119-06179-00

(replaces part #
90119-06170-00)

BOLT, WITH WASHER$9.49$7.407 In-Stock
1390387-06043-00COLLAR$9.49$8.54Usually ships in 7-10 business days
1490149-06302-00SCREW$6.49$5.069 In-Stock
