2004 Yamaha V-Star 650 Silverado Front Master Cylinder OEM Parts Diagram

Submodel V STAR SILVERADO - XVS65ATSC - 2004

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

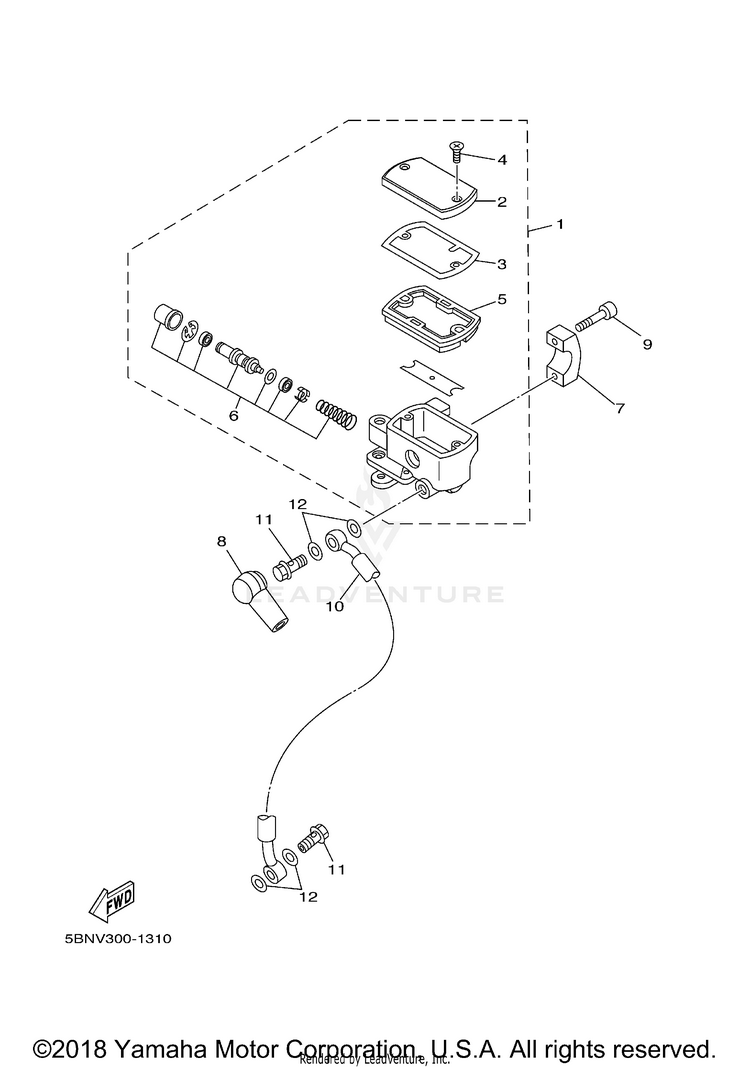

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13D8-25870-11-00

(replaces part #
4TR-25870-01-00)

MASTER CYLINDER SUB ASSY$334.99$261.29Usually ships in 7-10 business days
24TR-25852-01-00CAP, RESERVOIR$70.99$55.37Usually ships in 7-10 business days
34BH-25815-00-00SEAL, PISTON$37.99$31.15Usually ships in 7-10 business days
44TR-2589H-00-00SCREW$7.49$5.844 In-Stock
54BH-25854-02-00DIAPHRAGM, RESERVOIR$45.99$37.71Usually ships in 7-10 business days
62KR-25807-00-00

(replaces part #
2KR-W0041-00-00)

CYLINDER KIT, MASTER$89.99$70.19Usually ships in 7-10 business days
74TR-25867-00-00HOLDER$18.99$15.57Usually ships in 7-10 business days
84L0-25862-02-00

(replaces part #
4L0-25862-01-00)

BOOT, MASTER CYLINDER-$4.983 In-Stock
991314-06025-00BOLT, HEXAGON SOCKET HEAD$9.49$7.407 In-Stock
105BN-25872-21-00

(replaces part #
5BN-25872-20-00)

HOSE, BRAKE 1$118.99$92.81Usually ships in 7-10 business days
1190401-10159-00BOLT, UNION$12.49$9.7410+ In-Stock
1290201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
