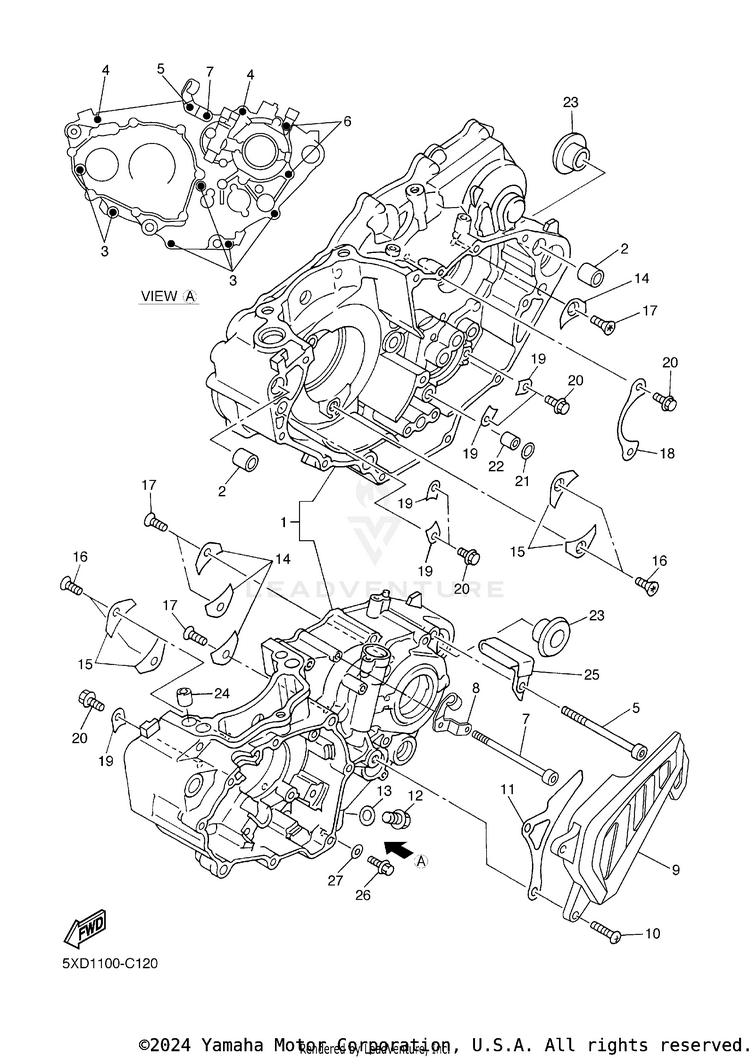

2004 Yamaha YZ450F Crankcase OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	5TA-15100-11-YX (replaces part # 5TA-15150-11-00)	CRANKCASE ASSY	$710.99	$554.57	Usually ships in 7-10 business days
2	99530-14016-00	PIN, DOWEL A	$3.80	$3.27	10+ In-Stock
3	91317-06050-00	BOLT	$4.20	$3.61	10+ In-Stock
4	91317-06060-00	BOLT	$4.05	$3.48	10+ In-Stock
5	91314-06065-00	BOLT, HEXAGON SOCKET HEAD	$9.49	$7.40	2 In-Stock
6	91317-06075-00	BOLT, HEXAGON SOCKET HEAD	$6.49	$5.06	6 In-Stock
7	91314-06080-00	BOLT, HEXAGON SOCKET HEAD	$4.20	$3.61	7 In-Stock
8	5XD-15441-00-00	HOLDER, CLUTCH CABLE	$15.49	$12.70	Not Shipping
9	5TA-15421-10-00 (replaces part # 5TA-15421-00-00)	COVER, CRANKCASE 2	$36.99	$28.85	2 In-Stock
10	98517-06025-00 (replaces part # 98507-06025-00)	SCREW, PAN HEAD	$4.05	$3.48	10+ In-Stock
11	5TA-17466-00-00	GUIDE, CHAIN	$26.99	$21.05	4 In-Stock
12	95027-10016-00	BOLT, FLANGE	$9.49	$7.40	4 In-Stock
13	90430-10188-00	GASKET	$3.45	$2.97	10+ In-Stock
14	4JT-15381-01-00	PLATE, BEARING COVER	$14.49	$11.30	10+ In-Stock
15	5BE-15383-01-00	PLATE, BEARING COVER	$11.99	$9.35	10+ In-Stock
16	90149-06126-00	SCREW	$10.49	$8.18	10+ In-Stock
17	90151-06052-00 (replaces part # 90149-06326-00)	SCREW	$9.49	$7.40	10+ In-Stock
18	4L0-17471-00-00	PLATE, COVER	$22.99	$17.93	10+ In-Stock
19	5DH-18562-00-00	PLATE, STOPPER 2	$8.49	$6.62	7 In-Stock
20	95027-06012-00 (replaces part # 90105-06553-00)	BOLT, FLANGE	$4.20	$3.61	10+ In-Stock
21	93210-10197-00	O-RING	$8.49	$6.62	10+ In-Stock
22	99530-10114-00	PIN, DOWEL	$2.65	$2.48	10+ In-Stock
23	90387-18007-00	COLLAR	$37.99	$29.63	10+ In-Stock
24	99530-10116-00	PIN, DOWEL	$4.40	$3.78	10+ In-Stock
25	90461-10136-00	CLAMP	$25.99	$20.27	10+ In-Stock
26	95024-06010-00	BOLT, FLANGE (SMALL HEAD)	$5.00	$4.30	10+ In-Stock
27	90430-06014-00	GASKET	$8.99	$7.01	10+ In-Stock
