2004 Yamaha YZ450F Handle Switch & Lever OEM Parts Diagram

Submodel YZ450F - YZ450FS - 2004

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

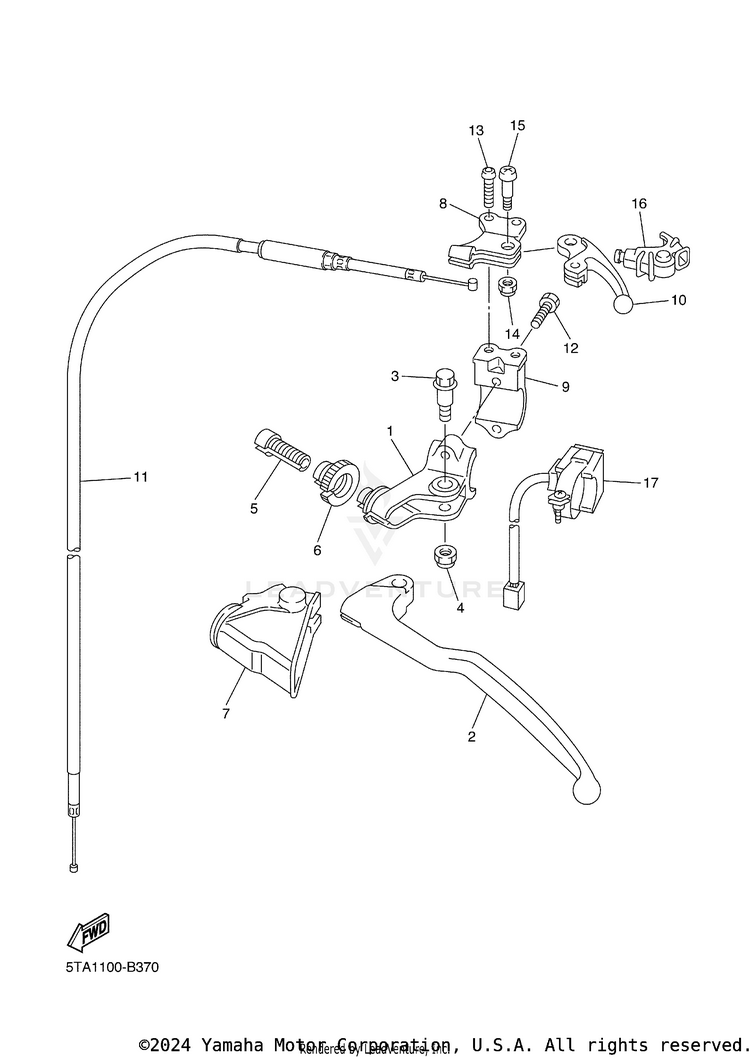

HANDLE SWITCH & LEVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15XE-82911-00-00HOLDER, LEVER 1$35.99$28.075 In-Stock
25MV-83912-01-00

(replaces part #
5MV-83912-00-00)

LEVER 1$37.99$29.636 In-Stock
390109-06034-00BOLT$8.49$7.0110+ In-Stock
45LP-84126-10-00NUT, LENS FITTING$7.49$5.8410+ In-Stock
55TA-26337-00-00BOLT, ADJUSTING$28.99$22.614 In-Stock
65HD-83951-01-00

(replaces part #
5HD-83951-00-00)

BOLT, CABLE ADJUST$48.99$38.216 In-Stock
75HD-26372-00-00COVER, HANDLE LEVER 1$18.99$14.8110+ In-Stock
85XD-82946-01-00

(replaces part #
5XD-82946-00-00)

HOLDER, STARTER LEVE$34.99$27.294 In-Stock
95XD-82913-01-00

(replaces part #
5XD-82913-00-00)

HOLDER, LEVER LOWER$17.99$14.033 In-Stock
105TA-83941-00-00LEVER, STARTER$21.99$17.1510+ In-Stock
115TA-26334-00-00CABLE, STARTER 2$42.99$33.533 In-Stock
1290101-05033-00BOLT$2.55$2.1910+ In-Stock
1392014-05012-00BOLT, BUTTON HEAD$4.10$3.539 In-Stock
1495617-05100-00

(replaces part #
95607-05100-00)

NUT, U$10.49$8.1810+ In-Stock
1590149-05162-00SCREW$10.49$8.1810+ In-Stock
165TA-26339-00-00BOOT$7.49$5.842 In-Stock
175SF-83976-00-00SWITCH, HANDLE 1$56.99$44.45Not Shipping
