2005 Yamaha BRUIN 350 2x4 Crankcase OEM Parts Diagram

Submodel BRUIN 2WD - YFM35BAT - 2005

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

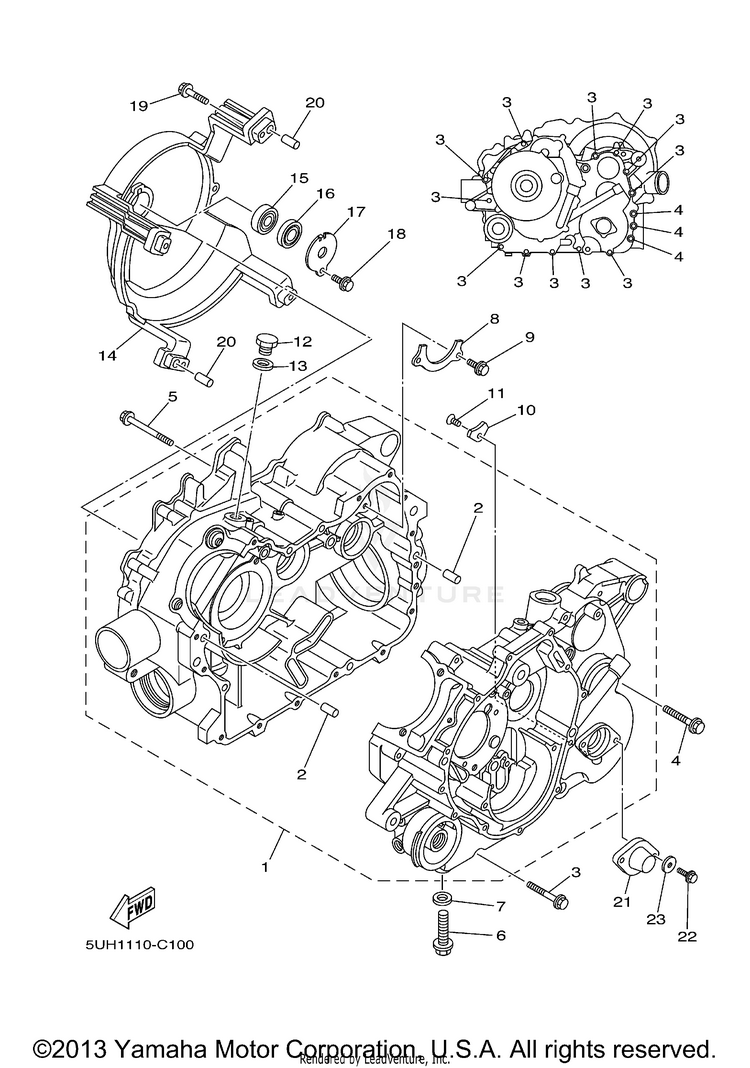

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15WH-15100-09-00

(replaces part #
5WH-15100-00-00)

CRANKCASE ASSY$800.99$670.12Usually ships in 7-10 business days
299530-10116-00PIN, DOWEL$4.40$3.7810+ In-Stock
395027-06050-00BOLT, FLANGE$2.75$2.3610+ In-Stock
495027-08045-00BOLT, FLANGE$9.49$7.405 In-Stock
595027-06070-00BOLT, FLANGE$2.80$2.418 In-Stock
695027-12040-00BOLT, FLANGE$3.99$3.59Not Shipping
790201-12172-00WASHER, PLATE$3.45$2.978 In-Stock
85GH-15388-00-00PLATE, BEARING COVER$5.49$4.94Usually ships in 7-10 business days
995817-06012-00

(replaces part #
95827-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
104XM-15383-00-00

(replaces part #
2K7-15383-00-00)

PLATE, BEARING COVER$15.49$12.088 In-Stock
1190151-06014-00SCREW, COUNTERSUNK$10.49$8.60Usually ships in 7-10 business days
1290340-14029-00PLUG, STRAIGHT SCREW$4.60$3.9610+ In-Stock
13214-11198-01-00GASKET$3.17$2.8910+ In-Stock
145UH-15442-00-00HOUSING, BEARING$163.99$127.91Usually ships in 7-10 business days
1593306-20117-00

(replaces part #
93306-20120-00)

BEARING$37.99$29.6310+ In-Stock
1693101-12168-00OIL SEAL$6.49$5.0610+ In-Stock
174WV-15381-00-00PLATE, BEARING COVER$8.49$6.624 In-Stock
1895027-06012-00BOLT, FLANGE$4.20$3.6110+ In-Stock
1995817-06030-00

(replaces part #
95827-06030-00)

BOLT,FLANGE$4.65$4.0010+ In-Stock
2099530-10116-00PIN, DOWEL$4.40$3.7810+ In-Stock
215GH-15385-00-00PLUG, BLIND$18.99$15.57Usually ships in 7-10 business days
2295027-06012-00

(replaces part #
90105-06553-00)

BOLT, FLANGE$4.20$3.6110+ In-Stock
2390201-06095-00

(replaces part #
90201-06063-00)

WASHER, PLATE$9.49$7.407 In-Stock
