2005 Yamaha BRUIN 350 2x4 Front Suspension Wheel OEM Parts Diagram

Submodel BRUIN 2WD - YFM35BAT - 2005

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT SUSPENSION WHEEL

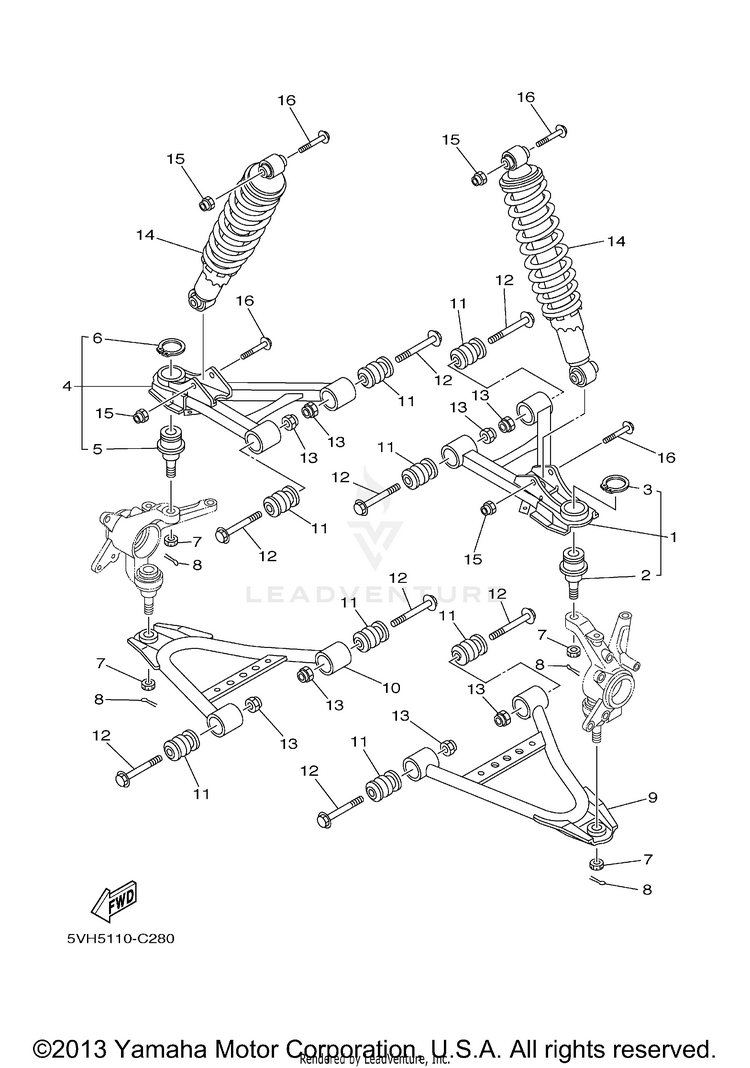

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15ND-F3540-13-00

(replaces part #
5ND-F3540-11-00)

FRONT UPPER ARM COMP. (LEFT) | (YMUS)$190.99$148.97Usually ships in 7-10 business days
237S-23549-01-00

(replaces part #
5FU-F3549-00-00)

BALL JOINT 1 | (YMUS)$83.99$65.5110+ In-Stock
AFTERMARKET ALTERNATIVE
$24.99$19.9910+ In-Stock
393410-32075-00

(replaces part #
93410-32826-00)

CIRCLIP$10.49$8.1810+ In-Stock
45ND-F3550-13-00

(replaces part #
5ND-F3550-11-00)

FRONT UPPER ARM COMP. (RIGHT) | (YMUS)$150.99$117.77Usually ships in 7-10 business days
537S-23549-01-00

(replaces part #
5FU-F3549-00-00)

BALL JOINT 1 | (YMUS)$83.99$65.5110+ In-Stock
AFTERMARKET ALTERNATIVE
$24.99$19.9910+ In-Stock
693410-32075-00

(replaces part #
93410-32826-00)

CIRCLIP$10.49$8.1810+ In-Stock
790171-12001-00

(replaces part #
90171-12816-00)

NUT, CASTLE | (YMUS)$3.55$3.0510+ In-Stock
891490-25020-00

(replaces part #
91401-25020-00)

PIN. COTTER$3.45$2.9710+ In-Stock
95ND-F357A-01-00ARM,FR. LWR. LH. | (YMUS)$103.99$81.113 In-Stock
105ND-F358A-01-00ARM,FR. LWR. RH. | (YMUS)$103.99$81.113 In-Stock
112HR-23526-00-00BUSH$22.99$17.9310+ In-Stock
1290105-10267-00

(replaces part #
90105-10890-00)

BOLT, FLANGE | (YMUS)$10.49$8.188 In-Stock
1390185-10012-00

(replaces part #
90185-10844-00)

NUT, SELF-LOCKING | (YMUS)$3.60$3.1010+ In-Stock
145UH-F3350-01-00SHOCK ABSORBER ASSY | (YMUS)$247.99$193.43Usually ships in 7-10 business days
1590185-10012-00

(replaces part #
90185-10844-00)

NUT, SELF-LOCKING | (YMUS)$3.60$3.1010+ In-Stock
1690105-10841-00

(replaces part #
90105-108B1-00)

BOLT, FLANGE | (YMUS)$2.45$2.315 In-Stock
