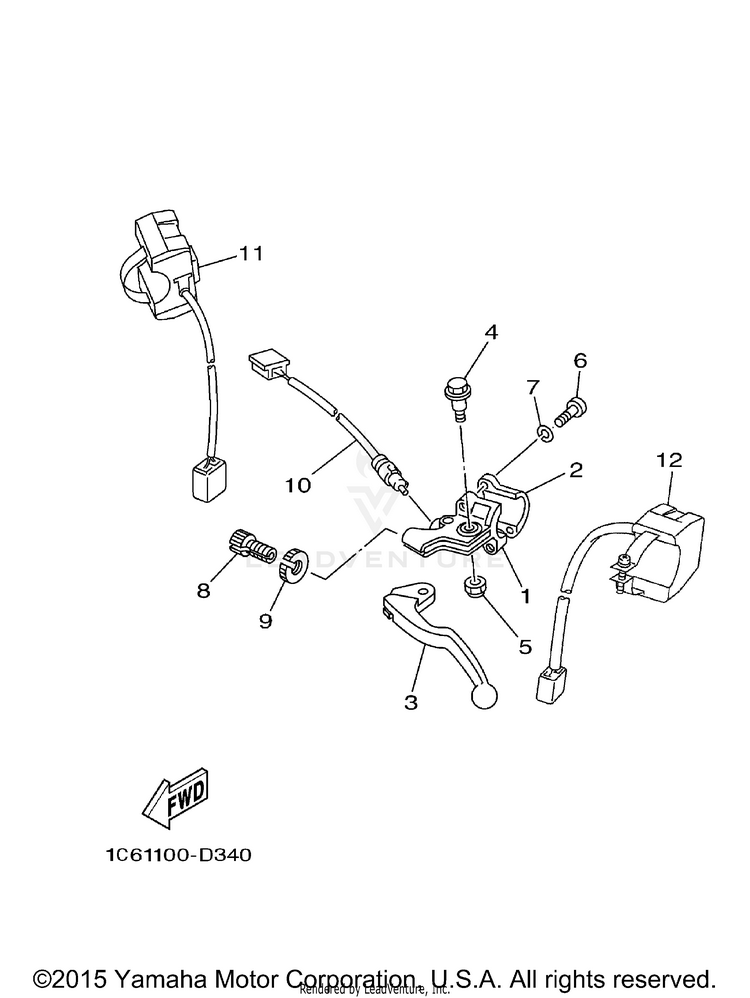

HANDLE SWITCH LEVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12TY-H2911-00-00HOLDER, LEVER 1$25.99$20.277 In-Stock
21B2-H2913-00-00HOLDER, LEVER LOWER 1$4.90$4.21
34GY-83912-00-00

(replaces part #
1B2-H3912-00-00)

LEVER 1$31.99$24.9510+ In-Stock
44LR-H3945-00-00BOLT, LEVER$2.00$1.726 In-Stock
590185-06802-00

(replaces part #
90185-06W10-00)

NUT,SELF-LOCKING$1.35$1.167 In-Stock
698517-05020-00

(replaces part #
9851M-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
792907-05100-00

(replaces part #
9290M-05100-00)

WASHER, SPRING$9.49$7.706 In-Stock
890123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
990179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
105TJ-82917-02-00

(replaces part #
5TJ-82917-01-00)

SWITCH$50.99$39.778 In-Stock
115TJ-83976-13-00

(replaces part #
5TJ-83976-11-00)

SWITCH, HANDLE 1 | START$86.99$67.851 In-Stock
125UM-83976-E2-00

(replaces part #
5TJ-83976-01-00)

SWITCH, ENGINE STOP | STOP$76.99$60.053 In-Stock
