2006 Yamaha BLASTER 200 Rear Master Cylinder OEM Parts Diagram

Submodel BLASTER SE - YFS200SEV - 2006

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

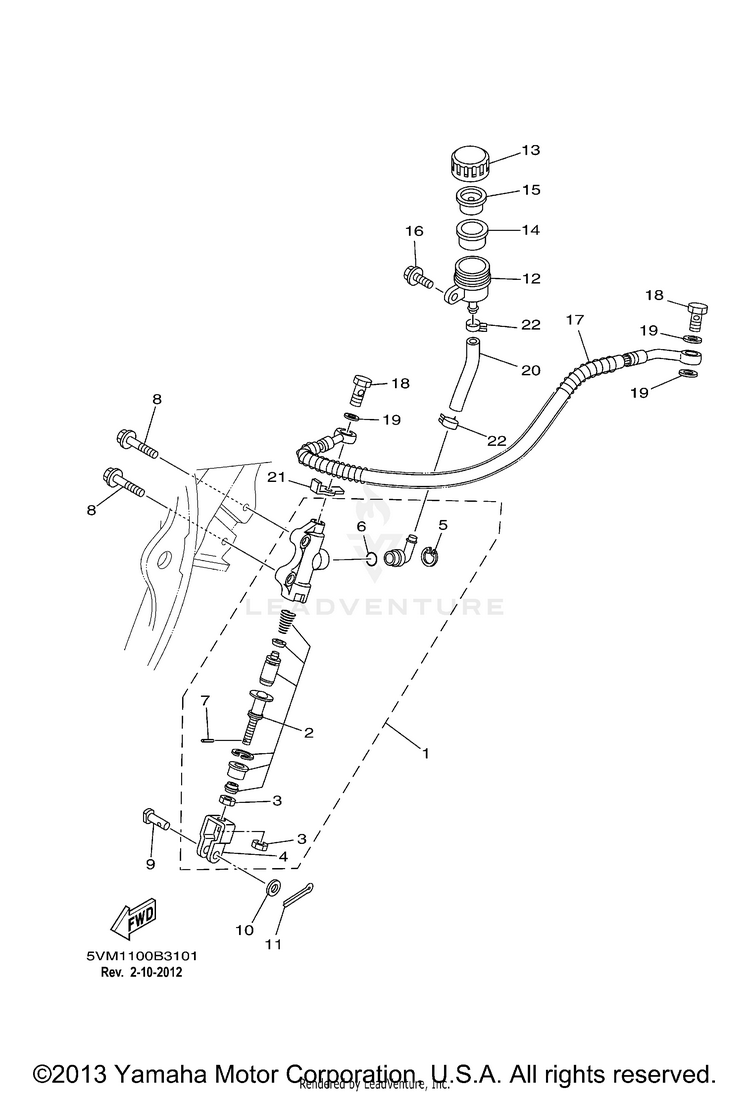

REAR MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15VM-2583V-00-00RR. MASTER CYLINDER ASSY.$191.99$149.75Not Shipping
25VM-W0042-50-00CYLINDER KIT, MASTER$59.99$46.79Usually ships in 7-10 business days
AFTERMARKET ALTERNATIVE
$29.55$28.0710+ In-Stock
395302-08600-00NUT, HEXAGON$2.10$1.25Not Shipping
42YK-27222-00-00JOINT$23.99$18.717 In-Stock
52VN-25866-00-00CIRCLIP$7.49$5.843 In-Stock
693210-15566-00

(replaces part #
93210-15620-00)

O-RING$8.49$6.6210+ In-Stock
73KW-27234-00-00PIN, BRAKE ROD$8.49$6.622 In-Stock
895817-08020-00BOLT, FLANGE$10.49$8.181 In-Stock
990240-08124-00PIN, CLEVIS$8.49$6.626 In-Stock
1090201-08083-00WASHER, PLATE$10.49$8.1810+ In-Stock
1191490-16020-00

(replaces part #
91401-16012-00)

PIN, COTTER$6.99$5.456 In-Stock
122VN-25894-00-00TANK, RESERVOIR$22.99$17.933 In-Stock
134PX-25852-00-00CAP, RESERVOIR$24.99$19.493 In-Stock
142VN-25854-00-00DIAPHRAGM, RESERVOIR$26.99$21.054 In-Stock
152VN-25855-00-00BUSH, DIAPHRAGM$11.99$9.3510+ In-Stock
1695817-06016-00

(replaces part #
95807-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
175VM-25874-00-00HOSE, BRAKE$63.99$49.91Not Shipping
1890401-10159-00BOLT, UNION$12.49$9.7410+ In-Stock
1990201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
205VM-25895-00-00HOSE, RESERVOIR$6.99$6.29Not Shipping
215LP-25844-00-00WASHER, LOCK$6.99$5.45Not Shipping
2290467-11044-00CLIP$9.49$7.4010+ In-Stock
