2006 Yamaha BLASTER 200 Stand Footrest OEM Parts Diagram

Submodel BLASTER SE - YFS200SEV - 2006

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STAND FOOTREST

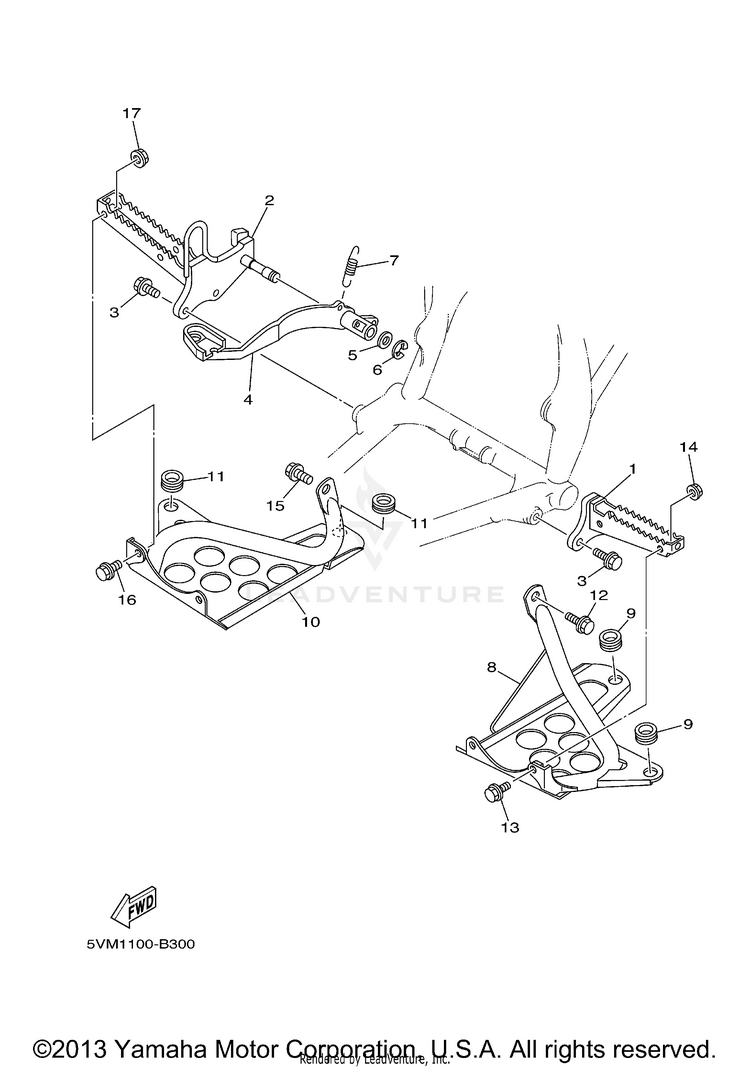

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15KJ-27411-00-00FOOTREST 1$68.99$53.81Not Shipping
25VM-27421-00-00FOOTREST 2$50.99$39.77Not Shipping
395817-10025-00BOLT, FLANGE$9.49$7.4010+ In-Stock
45VM-27211-10-00

(replaces part #
5VM-27211-00-00)

PEDAL, BRAKE$78.99$61.61Usually ships in 7-10 business days
590201-15797-00WASHER, PLATE$10.49$8.1810+ In-Stock
693430-12008-00CIRCLIP, E-TYPE$9.49$7.4010+ In-Stock
790506-20380-00SPRING, TENSION$6.49$6.419 In-Stock
83JM-27445-10-00PLATE 1$202.99$158.33Usually ships in 7-10 business days
990480-18411-00GROMMET$12.49$9.7410+ In-Stock
103JM-27446-10-00PLATE 2$189.99$148.19Usually ships in 7-10 business days
1190480-18411-00GROMMET$12.49$9.7410+ In-Stock
1295817-08016-00

(replaces part #
95827-08016-00)

BOLT,FLANGE (JN5)$5.49$4.2810+ In-Stock
1392017-08016-00BOLT, BUTTON HEAD$6.49$5.0610+ In-Stock
1495707-08500-00NUT,FLANGE (JN5)$1.95$1.6810+ In-Stock
1595817-08016-00

(replaces part #
95827-08016-00)

BOLT,FLANGE (JN5)$5.49$4.2810+ In-Stock
1692017-08016-00BOLT, BUTTON HEAD$6.49$5.0610+ In-Stock
1795707-08500-00NUT,FLANGE (JN5)$1.95$1.6810+ In-Stock
