2006 Yamaha YZF-R6S Front Wheel OEM Parts Diagram

Submodel R6S - YZFR6SVC - 2006

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

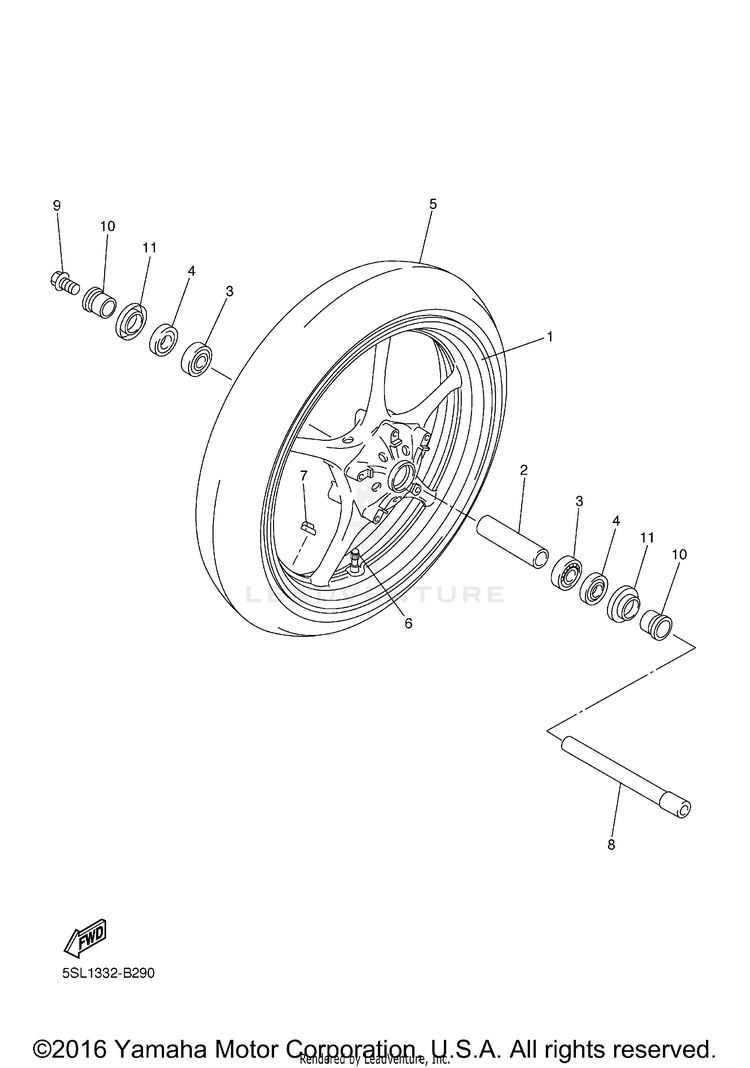

FRONT WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-5MT-25398-20-00BALANCER, WHEEL (30G) | UR$46.99$38.53Usually ships in 7-10 business days
-5MT-25398-10-00BALANCER, WHEEL (20G) | UR$18.99$15.57Usually ships in 7-10 business days
-5SL-25168-00-4X

(replaces part #
5SL-25168-00-0X)

CAST WHEEL, FRONT | FOR SMX$755.99$659.76Usually ships in 7-10 business days
15SL-25168-00-98CAST WHEEL, FRONT | FOR DPBMC$1,063.99$862.80Usually ships in 7-10 business days
24XV-25117-00-00SPACER, BEARING$38.99$31.97Usually ships in 7-10 business days
393306-00420-00BEARING (B6004)$44.99$35.0910+ In-Stock
493106-28043-00OIL SEAL$16.49$12.8610+ In-Stock
594112-17070-00TIRE (120/60ZR17 M/C 55W D208F) | DUNLOP$155.99$128.79Usually ships in 7-10 business days
693900-00030-00VALVE, RIM (TR412) | TAIHEIYO$18.49$14.425 In-Stock
75MT-25398-00-00BALANCER, WHEEL (10G) | UR$18.99$15.574 In-Stock
85SL-25181-10-00

(replaces part #
5SL-25181-00-00)

AXLE, WHEEL$93.99$73.31Usually ships in 7-10 business days
990105-14002-00BOLT, FLANGE$18.49$15.16Usually ships in 7-10 business days
1090387-22016-00

(replaces part #
4XV-25186-00-00)

COLLAR$42.99$35.25Usually ships in 7-10 business days
114XV-25118-00-00COVER, HUB DUST$12.99$10.65Usually ships in 7-10 business days
