2006 Yamaha YZF-R6S Generator OEM Parts Diagram

Submodel R6S - YZFR6SVC - 2006

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

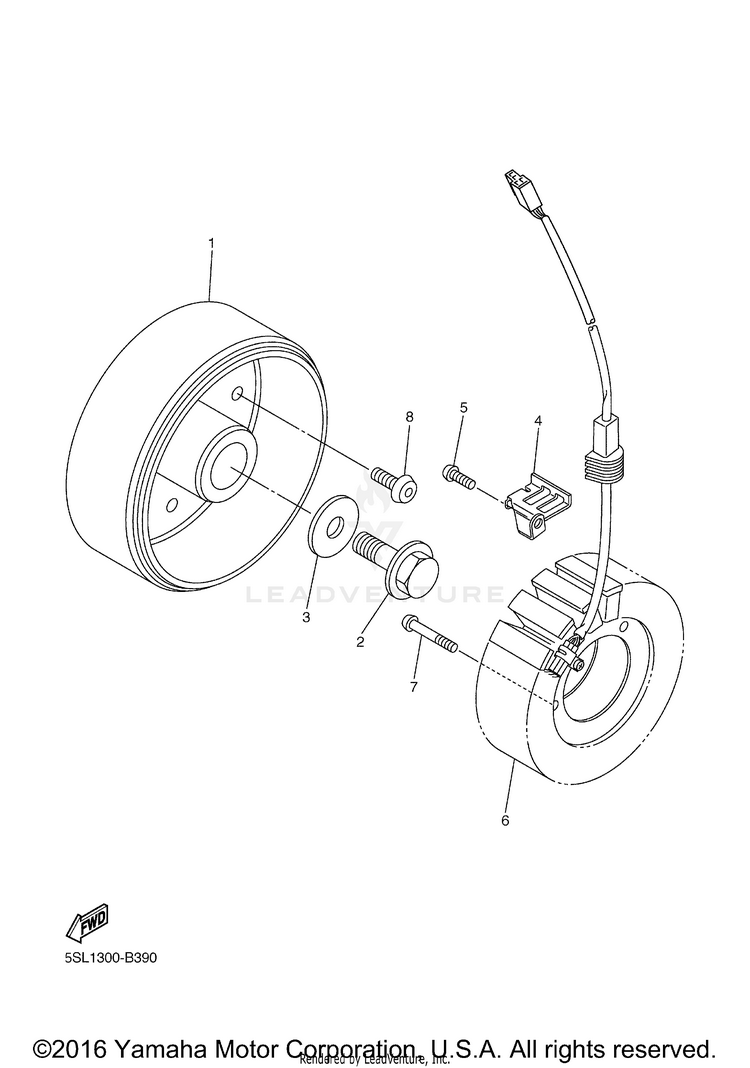

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15SL-81450-01-00ROTOR ASSY$606.99$473.45Usually ships in 7-10 business days
290105-126A8-00BOLT, FLANGE$17.49$14.34Usually ships in 7-10 business days
390201-12008-00WASHER, PLATE$16.49$13.52Usually ships in 7-10 business days
45SL-15484-00-00CLAMP 2$6.99$6.29Usually ships in 7-10 business days
590149-06030-00

(replaces part #
90149-06018-00)

SCREW$6.49$5.84Usually ships in 7-10 business days
65SL-81410-00-00STATOR ASSY$395.99$332.47Usually ships in 7-10 business days
790149-06033-00

(replaces part #
90149-06031-00)

SCREW$9.49$8.54Usually ships in 7-10 business days
890149-08031-00

(replaces part #
90149-08003-00)

SCREW$10.49$8.1810+ In-Stock
