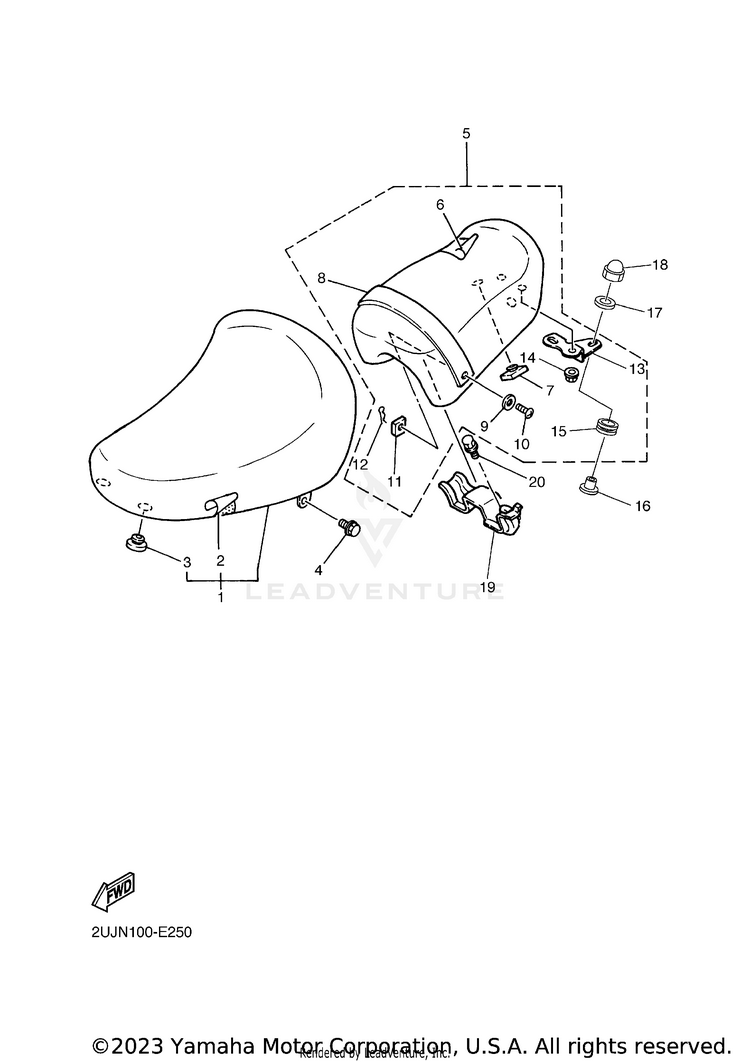

2007 Yamaha Virago XV250 Seat OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	2UJ-24710-01-00 (replaces part # 2UJ-24710-00-00)	SINGLE SEAT ASSY	$206.99	$161.45	Usually ships in 7-10 business days
2	2UJ-24731-01-00 (replaces part # 2UJ-24731-00-00)	COVER, SEAT	$137.99	$107.63	Usually ships in 7-10 business days
3	18A-24724-00-00	DAMPER, SEAT	$9.49	$8.54	Usually ships in 7-10 business days
4	95817-06016-00 (replaces part # 95807-06016-00)	BOLT, FLANGE	$1.95	$1.68	10+ In-Stock
5	2UJ-24750-11-00 (replaces part # 2UJ-24750-10-00)	TANDEM SEAT ASSY	$112.99	$88.13	Usually ships in 7-10 business days
6	2UJ-24751-01-00 (replaces part # 2UJ-24751-00-00)	COVER, TANDEM SEAT	$128.99	$100.61	Usually ships in 7-10 business days
7	509-24724-00-00	DAMPER, SEAT	$11.99	$9.35	3 In-Stock
8	2UJ-24734-00-00	BAND, SEAT	$17.99	$14.75	Usually ships in 7-10 business days
9	1WG-24712-00-00	PLATE	$5.49	$4.94	Usually ships in 7-10 business days
10	47X-24739-00-00	BOLT, SEAT FITTING	$6.49	$5.84	Usually ships in 7-10 business days
11	90173-06015-00	NUT, SQUARE	$9.49	$8.54	Usually ships in 7-10 business days
12	90468-10050-00	CLIP	$3.05	$2.62	10+ In-Stock
13	2UJ-2475J-00-00	BRACKET, SEAT LEVER 2	$9.49	$8.54	Usually ships in 7-10 business days
14	95707-06500-00	NUT, FLANGE	$1.00	$0.99	10+ In-Stock
15	5YS-24742-00-00	GROMMET	$2.50	$2.15	1 In-Stock
16	5YS-2471N-00-00	COLLAR 1	$11.99	$9.83	1 In-Stock
17	90201-08042-00	WASHER, PLATE	$9.49	$8.54	1 In-Stock
18	90176-08001-00	NUT, CROWN	$9.49	$8.54	Usually ships in 7-10 business days
19	2UJ-2475H-00-00	BRACKET, SEAT LEVER 1	$34.99	$28.69	Usually ships in 7-10 business days
20	95027-06012-00	BOLT, FLANGE	$4.20	$3.61	10+ In-Stock
