SHIFT CAM FORK

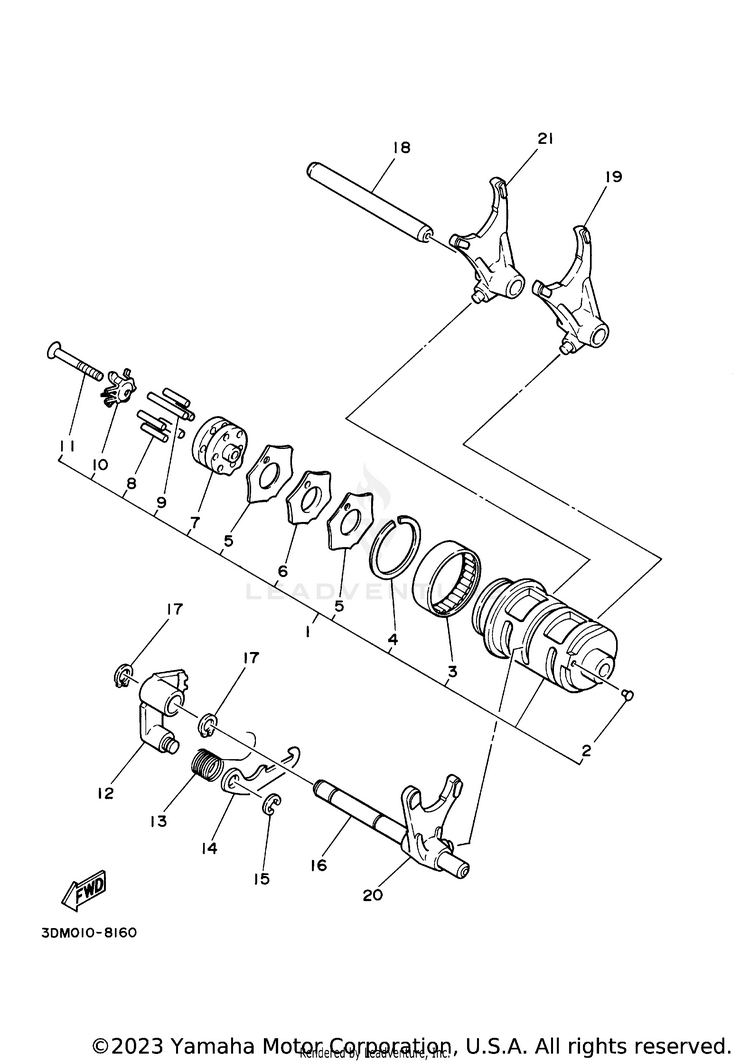

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14DN-18540-00-00SHIFT CAM ASSY$108.99$85.01Usually ships in 7-10 business days
2136-18542-00-00POINT, NEUTRAL$7.49$6.74Usually ships in 7-10 business days
393315-23612-00BEARING, CYL. #15$36.99$28.853 In-Stock
493440-34025-00CIRCLIP$8.49$6.623 In-Stock
53Y1-18161-00-00GUIDE, PLATE STOPPER$3.80$3.42Usually ships in 7-10 business days
63Y1-18141-00-00PLATE, STOPPER$6.49$5.84Usually ships in 7-10 business days
73Y1-18185-01-00SEGMENT$34.99$28.69Usually ships in 7-10 business days
893604-18100-00PIN, DOWEL$3.85$3.4610+ In-Stock
993604-29151-00PIN, DOWEL$8.49$7.64Usually ships in 7-10 business days
102K9-18561-00-00PLATE, SIDE 1$7.49$6.74Usually ships in 7-10 business days
1198707-05035-00SCREW, FLAT HEAD$9.49$8.54Usually ships in 7-10 business days
123Y1-18122-00-00LEVER, SHIFT 2$28.99$23.77Usually ships in 7-10 business days
1390508-12430-00SPRING, TORSION$2.20$1.98Usually ships in 7-10 business days
142K7-18151-00-00LEVER, SHIFT 3$14.49$11.88Usually ships in 7-10 business days
1599080-07600-00

(replaces part #
99001-07600-00)

CIRCLIP$3.65$3.147 In-Stock
164DN-18531-00-00BAR, SHIFT FORK GUIDE 1$15.49$12.70Usually ships in 7-10 business days
1799009-10400-00CIRCLIP$5.49$4.2810+ In-Stock
184SH-18535-00-00BAR, SHIFT FORK GUIDE 2$17.49$14.34Usually ships in 7-10 business days
194DN-18511-00-00FORK, SHIFT 1$41.99$34.43Usually ships in 7-10 business days
204DN-18512-00-00FORK, SHIFT 2$42.99$35.25Usually ships in 7-10 business days
214DN-18513-00-00FORK, SHIFT 3$46.99$38.53Usually ships in 7-10 business days
