2007 Yamaha Warrior XV1700 Shift Cam Fork OEM Parts Diagram

Submodel ROAD STAR WARRIOR CA - XV17PCWC-F - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

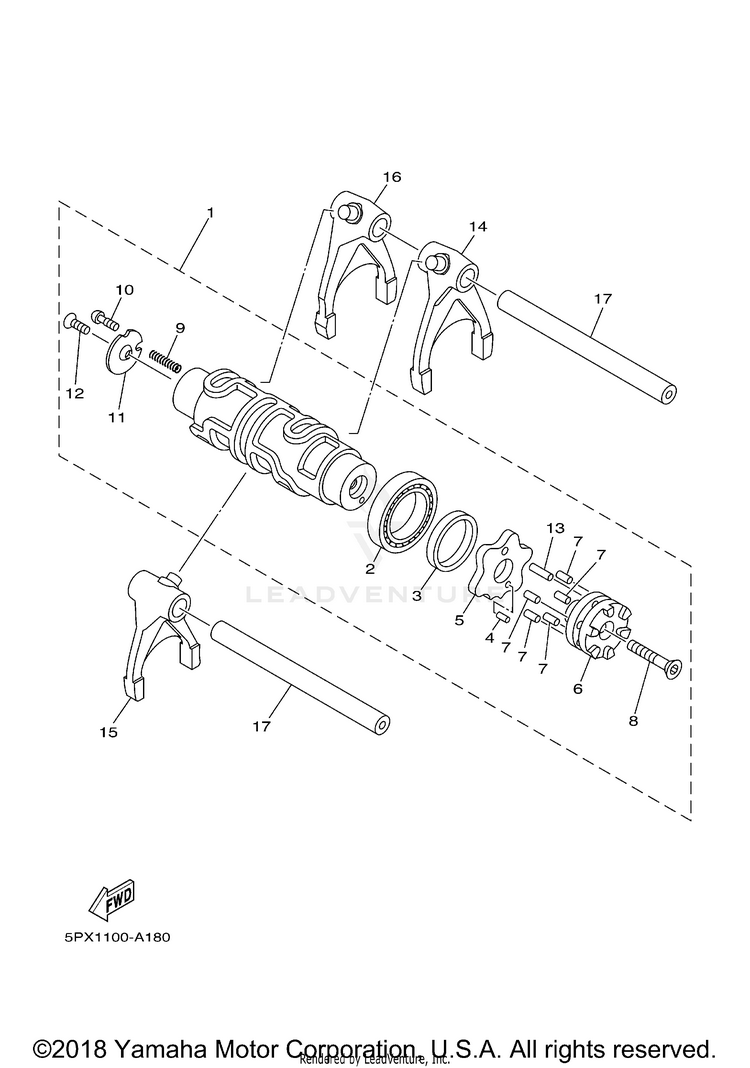

SHIFT CAM FORK

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15PX-18540-00-00SHIFT CAM ASSY$253.99$201.34Usually ships in 7-10 business days
293306-90602-00BEARING$45.99$37.71Usually ships in 7-10 business days
390560-30234-00SPACER$2.90$2.61Usually ships in 7-10 business days
493603-10049-00PIN, DOWEL$4.05$3.64Usually ships in 7-10 business days
54NK-18141-00-00PLATE, STOPPER$36.99$30.33Usually ships in 7-10 business days
64NK-18185-00-00SEGMENT$80.99$63.17Usually ships in 7-10 business days
793604-12037-00PIN, DOWEL$9.49$7.405 In-Stock
890151-06013-00SCREW, COUNTERSUNK$10.49$8.182 In-Stock
990501-06022-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
104UN-18542-00-00POINT, NEUTRAL$9.49$7.4010+ In-Stock
114UN-18566-00-00PLATE, SIDE 2$21.99$18.03Usually ships in 7-10 business days
1290149-05245-00

(replaces part #
90149-05011-00)

SCREW$9.49$8.54Usually ships in 7-10 business days
1393604-16092-00PIN, DOWEL$3.45$2.979 In-Stock
144WM-18511-00-00FORK, SHIFT 1$54.99$42.89Usually ships in 7-10 business days
154WM-18512-00-00FORK, SHIFT 2$56.99$44.45Usually ships in 7-10 business days
165PX-18513-00-00FORK, SHIFT 3$63.99$49.91Usually ships in 7-10 business days
174NK-18531-00-00BAR, SHIFT FORK GUIDE 1$23.99$19.67Usually ships in 7-10 business days
