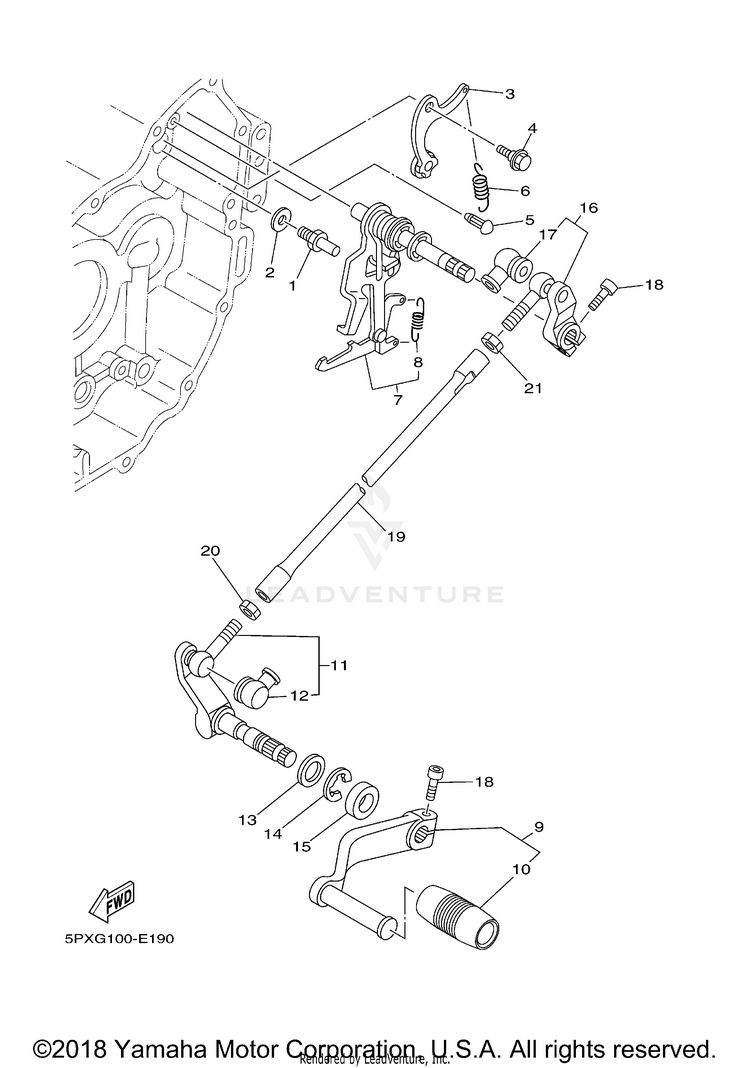

2007 Yamaha Warrior XV1700 Shift Shaft OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	90109-08441-00 (replaces part # 90109-08049-00)	BOLT	$9.49	$8.54	Usually ships in 7-10 business days
2	90201-08085-00	WASHER, PLATE	$10.49	$8.18	9 In-Stock
3	26H-18140-02-00	STOPPER LEVER ASSY	$19.99	$16.39	Usually ships in 7-10 business days
4	90109-06036-00 (replaces part # 90109-06048-00)	BOLT	$10.49	$8.18	7 In-Stock
5	132-16346-00-00	HOOK, SPRING	$10.99	$8.57	8 In-Stock
6	90506-18007-00	SPRING, TENSION	$6.49	$5.84	Usually ships in 7-10 business days
7	4WM-18101-01-00	SHIFT SHAFT ASSY	$176.99	$138.05	Usually ships in 7-10 business days
8	90506-08227-00	SPRING, TENSION	$4.55	$3.91	3 In-Stock
9	5PX-18110-20-00	SHIFT PEDAL ASSY	$139.99	$109.19	Usually ships in 7-10 business days
10	5VN-18113-00-00	COVER, SHIFT PEDAL	$16.49	$13.52	Usually ships in 7-10 business days
11	5PX-18164-00-00	KNOB, SHIFTER	$269.99	$210.59	Usually ships in 7-10 business days
12	2H9-18154-00-00	COVER, DUST	$5.99	$4.76	8 In-Stock
13	90201-144J2-00	WASHER, PLATE	$9.49	$7.40	4 In-Stock
14	99001-12600-00	CIRCLIP	$6.49	$5.06	4 In-Stock
15	5PX-18154-00-00	COVER, DUST	$11.99	$9.83	Usually ships in 7-10 business days
16	5VN-18150-00-00	SHIFT LEVER ASSY	$145.99	$113.87	Usually ships in 7-10 business days
17	2H9-18154-00-00	COVER, DUST	$5.99	$4.76	8 In-Stock
18	91314-06020-00	BOLT, HEXAGON SOCKET HEAD	$2.65	$2.57	10+ In-Stock
19	5PX-18115-01-00	ROD, SHIFT	$78.99	$61.61	Usually ships in 7-10 business days
20	95380-08700-00 (replaces part # 95304-08700-00)	NUT	-	$3.79	6 In-Stock
21	90170-08358-00	NUT	$9.49	$7.40	2 In-Stock
