2008 Yamaha V-Star 650 Silverado Handle Switch Lever OEM Parts Diagram

Submodel V STAR 650 SILVERADO - XVS65ATXCB - 2008

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

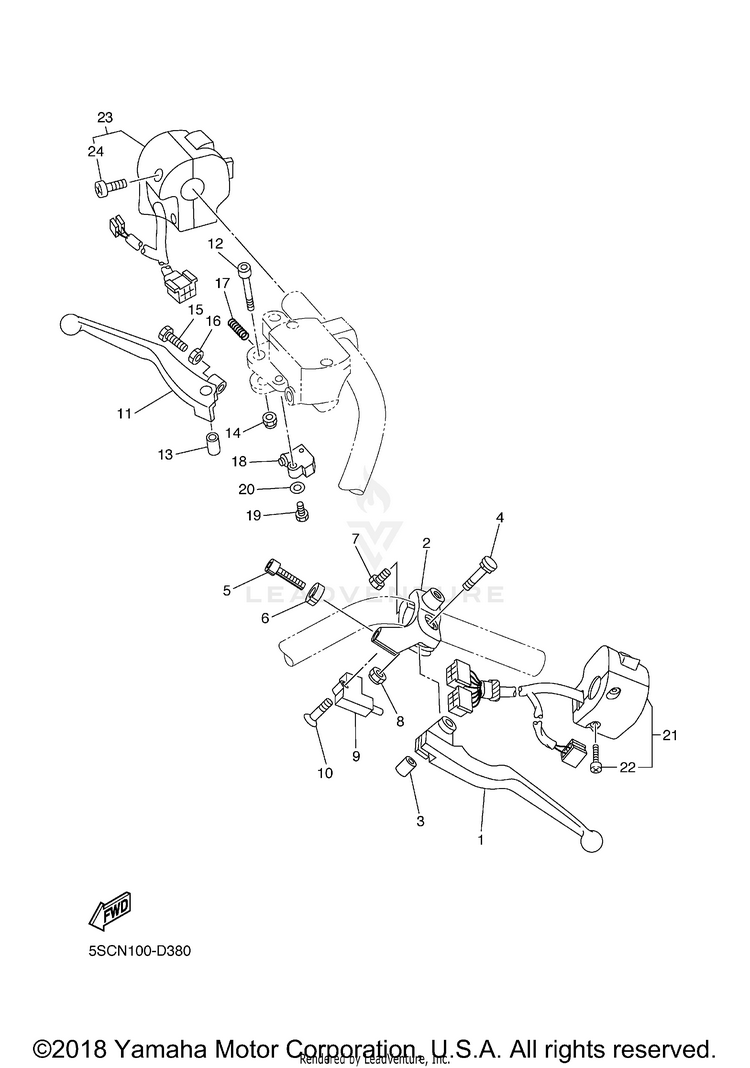

HANDLE SWITCH LEVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15BN-83912-00-00LEVER 1$56.99$44.45Usually ships in 7-10 business days
25BN-82911-00-00HOLDER, LEVER 1$49.99$40.99Usually ships in 7-10 business days
34TR-83913-00-00COLLAR, LEVER 1$8.49$6.6210+ In-Stock
44TR-83945-00-00BOLT, LEVER$16.49$13.52Usually ships in 7-10 business days
590123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
690179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
797024-06020-00

(replaces part #
97004-06020-00)

BOLT$9.49$7.4010+ In-Stock
895604-06100-00NUT, U$9.49$7.403 In-Stock
93YX-82917-01-00SWITCH$47.99$37.435 In-Stock
1098707-03020-00SCREW, FLAT HEAD$9.49$8.54Usually ships in 7-10 business days
115BN-83922-00-00LEVER 2$56.99$44.45Usually ships in 7-10 business days
1290110-06074-00BOLT, HEXAGON SOCKET HEAD$9.49$8.54Usually ships in 7-10 business days
1336Y-83913-01-00COLLAR, LEVER 1$10.99$8.577 In-Stock
1495617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1590149-06131-00SCREW$9.49$7.4010+ In-Stock
1690170-06010-00NUT$9.49$7.404 In-Stock
1790501-10312-00SPRING, COMPRESSION$9.49$7.405 In-Stock
18J45-82503-01-00

(replaces part #
36Y-83980-01-00)

FRONT STOP SWITCH ASSY$40.99$31.971 In-Stock
1998517-04016-00

(replaces part #
98507-04016-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
2092907-04600-00WASHER$1.85$1.596 In-Stock
215VN-83973-20-00SWITCH, HANDLE 3$375.99$293.27Usually ships in 7-10 business days
2298580-05525-00

(replaces part #
98580-05025-00)

SCREW, PAN HEAD$2.00$1.80Usually ships in 7-10 business days
235KS-83975-10-00SWITCH, HANDLE 2$266.99$208.25Usually ships in 7-10 business days
2498507-05025-00SCREW, PAN HEAD$9.49$7.4010+ In-Stock
