2008 Yamaha V-Star 650 Silverado Valve OEM Parts Diagram

Submodel V STAR 650 SILVERADO - XVS65ATXCB - 2008

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

VALVE

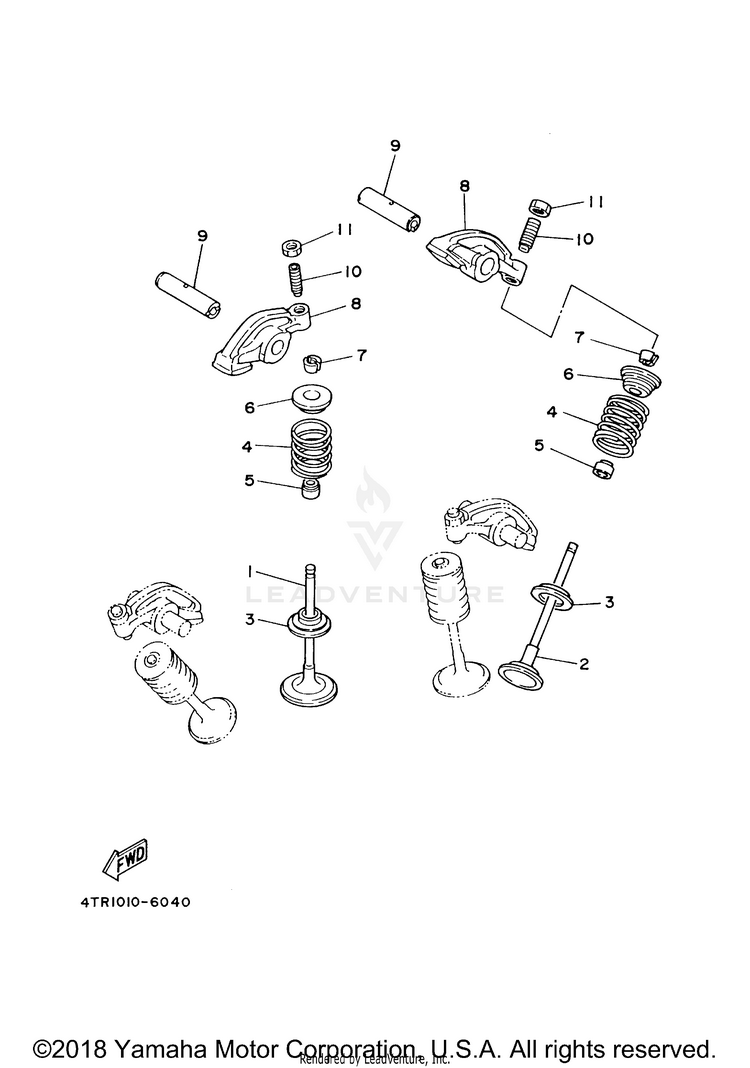

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14VR-12111-01-00VALVE, INTAKE$52.99$41.33Usually ships in 7-10 business days
24VR-12121-01-00VALVE, EXHAUST$96.99$75.65Usually ships in 7-10 business days
33Y1-12116-00-00SEAT, VALVE SPRING$17.99$14.037 In-Stock
43Y1-12114-01-00SPRING, VALVE OUTER$39.99$32.79Usually ships in 7-10 business days
51J7-12119-01-00SEAL, VALVE STEM$22.99$17.9310+ In-Stock
63Y1-12117-01-00RETAINER, VALVE SPRING$18.99$14.816 In-Stock
71J7-12118-00-00LOCK, VALVE SPRING RETAINER$8.49$6.6210+ In-Stock
822U-12151-00-00ARM, VALVE ROCKER$54.99$42.89Usually ships in 7-10 business days
922U-12156-02-00

(replaces part #
22U-12156-01-00)

SHAFT, ROCKER 2$19.49$15.98Usually ships in 7-10 business days
1022U-12159-00-00SCREW, VALVE ADJUSTING$10.99$9.01Usually ships in 7-10 business days
1190170-06128-00NUT$9.49$7.404 In-Stock
