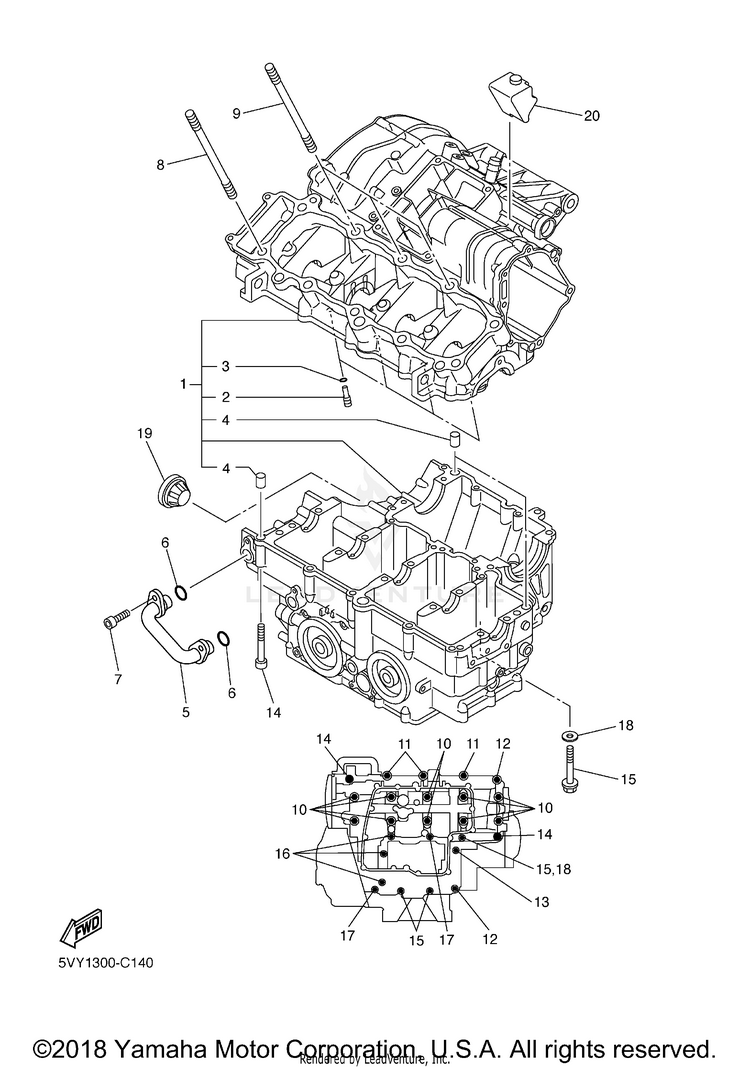

2008 Yamaha YZF-R1 Crankcase OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	4C8-15100-19-00 (replaces part # 4C8-15100-00-00)	CRANKCASE ASSY	$1,533.99	$1,341.72	Usually ships in 7-10 business days
2	5EB-15155-00-00	NOZZLE 3	$15.49	$12.70	Usually ships in 7-10 business days
3	93210-04092-00	O-RING	$4.05	$3.48	7 In-Stock
4	99530-10114-00 (replaces part # 99530-10014-00)	PIN, DOWEL	$2.65	$2.48	10+ In-Stock
5	5VY-13418-11-00 (replaces part # 5VY-13418-10-00)	PIPE, OIL 2	$97.99	$76.43	Usually ships in 7-10 business days
6	93210-14003-00	O-RING	$9.49	$7.40	10+ In-Stock
7	91317-06016-00 (replaces part # 90110-06161-00)	BOLT (4MY)	-	$1.42	10+ In-Stock
8	90116-10032-00	BOLT, STUD	$13.49	$11.06	Usually ships in 7-10 business days
9	90116-10023-00	BOLT, STUD	$27.99	$22.95	Usually ships in 7-10 business days
10	90119-09012-00 (replaces part # 90119-09003-00)	BOLT, WITH WASHER	$13.49	$11.06	Usually ships in 7-10 business days
11	95817-08050-00 (replaces part # 95812-08050-00)	BOLT, FLANGE	$3.70	$3.18	10+ In-Stock
12	95817-08060-00 (replaces part # 95812-08060-00)	BOLT, FLANGE	$4.80	$4.13	4 In-Stock
13	95817-08060-00 (replaces part # 90105-08101-00)	BOLT, FLANGE	$4.80	$4.13	4 In-Stock
14	90109-06100-00	BOLT	$9.49	$8.54	Usually ships in 7-10 business days
15	95812-06060-00	BOLT, FLANGE	$3.50	$3.01	2 In-Stock
16	95812-06070-00	BOLT, FLANGE	$9.49	$8.54	Usually ships in 7-10 business days
17	95812-06050-00	BOLT, FLANGE	$2.00	$1.80	Usually ships in 7-10 business days
18	90430-06166-00	GASKET	$4.05	$3.48	10+ In-Stock
19	5PW-15361-00-00	GAUGE, LEVEL	$43.99	$36.07	Usually ships in 7-10 business days
20	5VY-15316-00-00	DAMPER 1	$18.49	$15.16	Usually ships in 7-10 business days
