2008 Yamaha YZF-R1 Front Master Cylinder OEM Parts Diagram

Submodel R1 - YZFR1XCB - 2008

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

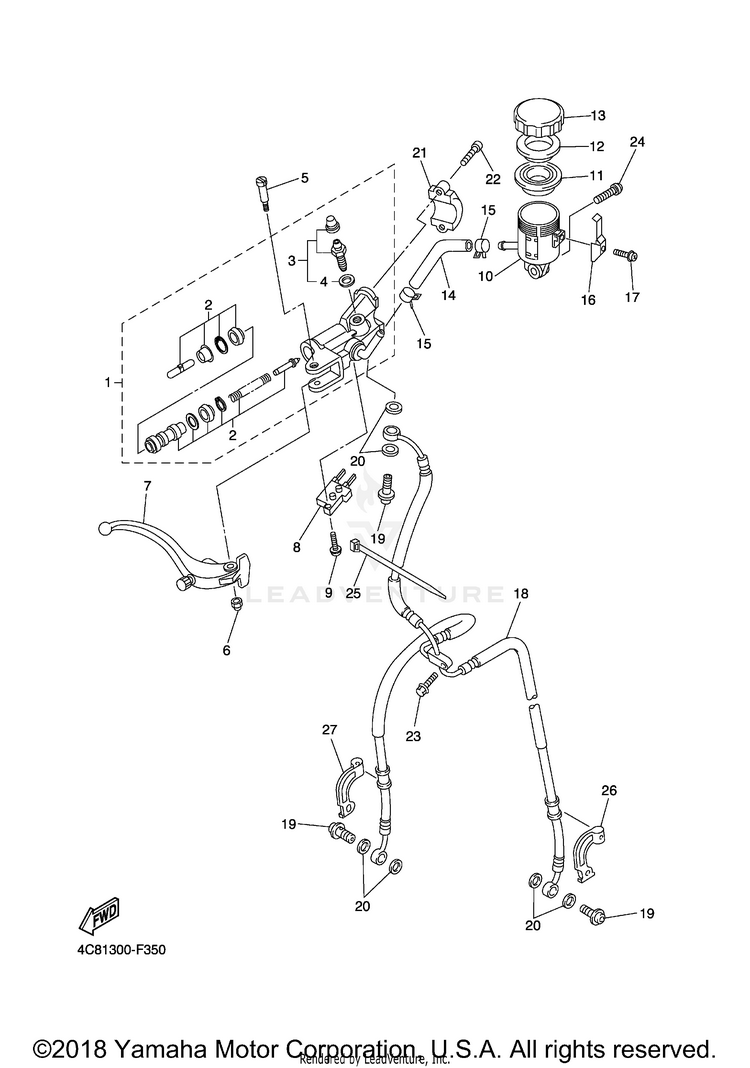

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15SL-W2587-00-00MASTER CYLINDER SUB ASSY$408.99$319.01Usually ships in 7-10 business days
22S3-W0041-00-00

(replaces part #
5VY-W0041-00-00)

CYLINDER KIT, MASTER$92.99$72.534 In-Stock
35VY-W0048-00-00BLEED SCREW KIT$19.99$16.39Usually ships in 7-10 business days
45VY-25975-00-00SEAL 1$2.50$2.25Usually ships in 7-10 business days
55VY-2589F-01-00BOLT, LEVER$16.49$12.862 In-Stock
65VS-2586F-00-00NUT, COVER$7.49$6.741 In-Stock
75SL-83922-10-00LEVER 2$58.99$46.01Usually ships in 7-10 business days
84HM-83980-00-00FRONT STOP SWITCH ASSY$45.99$35.873 In-Stock
95VS-2585H-00-00SCREW, SET$8.49$7.64Usually ships in 7-10 business days
105SL-25894-20-00TANK, RESERVOIR$42.99$35.25Usually ships in 7-10 business days
115VY-25854-00-00DIAPHRAGM, RESERVOIR$35.99$29.51Usually ships in 7-10 business days
125VY-25855-00-00BUSH, DIAPHRAGM$5.99$5.39Usually ships in 7-10 business days
135VY-25852-00-00CAP, RESERVOIR$19.99$16.39Usually ships in 7-10 business days
145VY-25895-10-00HOSE, RESERVOIR$25.99$21.31Usually ships in 7-10 business days
1590467-120A3-00CLIP$8.49$7.64Usually ships in 7-10 business days
165VY-2589G-00-00HOLDER$9.49$8.54Usually ships in 7-10 business days
175VY-2589H-00-00SCREW$8.49$7.64Usually ships in 7-10 business days
184C8-25872-00-00HOSE, BRAKE 1$146.99$114.65Usually ships in 7-10 business days
1990401-10172-00BOLT, UNION$6.49$5.0610+ In-Stock
2090430-10005-00GASKET$9.49$7.4010+ In-Stock
215VS-25867-00-00BRACKET, MASTER CYLINDER$39.99$32.79Usually ships in 7-10 business days
225VS-26332-00-00BOLT$4.95$4.264 In-Stock
2390105-06041-00BOLT, FLANGE$6.49$5.84Usually ships in 7-10 business days
2490111-05026-00BOLT, HEX. SOCKET BUTTON$9.49$7.4010+ In-Stock
253MA-82591-00-00CLAMP$10.99$9.01Usually ships in 7-10 business days
265VY-25875-00-00HOLDER, BRAKE HOSE 1$14.49$11.88Usually ships in 7-10 business days
275VY-25876-00-00HOLDER, BRAKE HOSE 2$12.49$10.24Not Shipping
