2009 Yamaha RAPTOR 250 Graphics OEM Parts Diagram

Submodel RAPTOR 250 SPECIAL EDITION - YFM25RSEY - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GRAPHICS

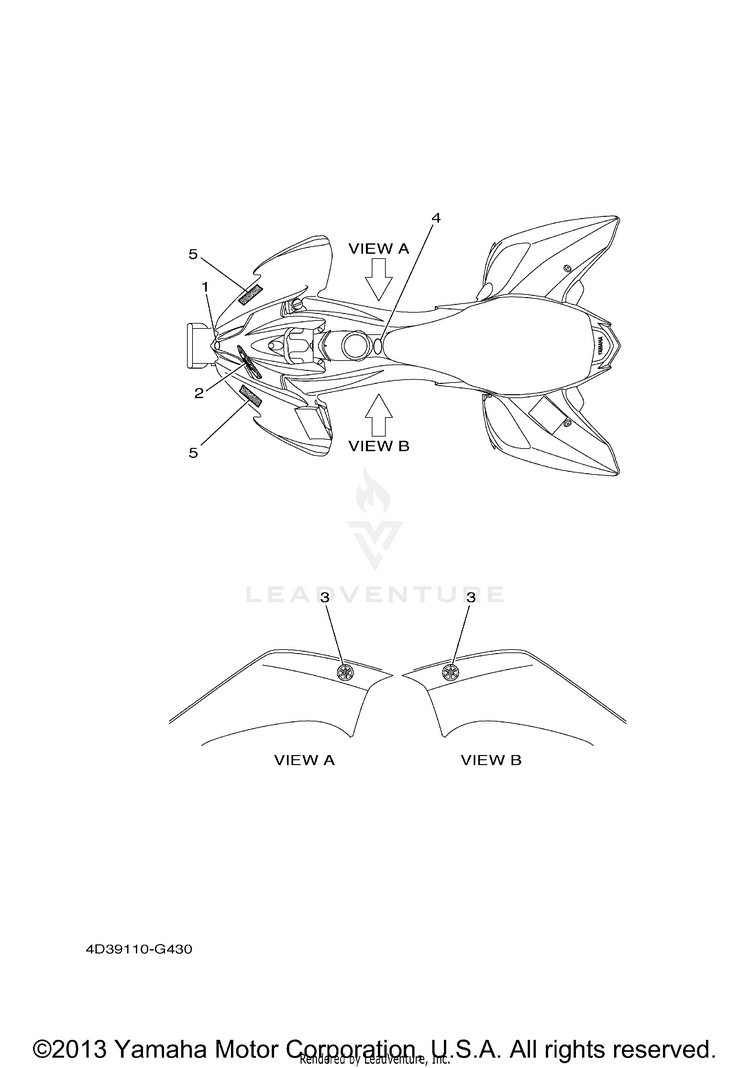

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14KN-2836B-11-00

(replaces part #
4KN-2836B-10-00)

TUNING FORK MARK$21.99$17.1510+ In-Stock
24D3-21565-30-00EMBLEM, 2$6.99$6.29Not Shipping
35FK-2175C-10-00TUNING FORK MARK$11.99$9.83Not Shipping
45D3-2164B-00-00EMBLEM, 3D$34.99$28.69Usually ships in 7-10 business days
53GD-2153E-21-00

(replaces part #
3GD-2153E-20-00)

EMBLEM, YAMAHA$4.10$3.537 In-Stock
