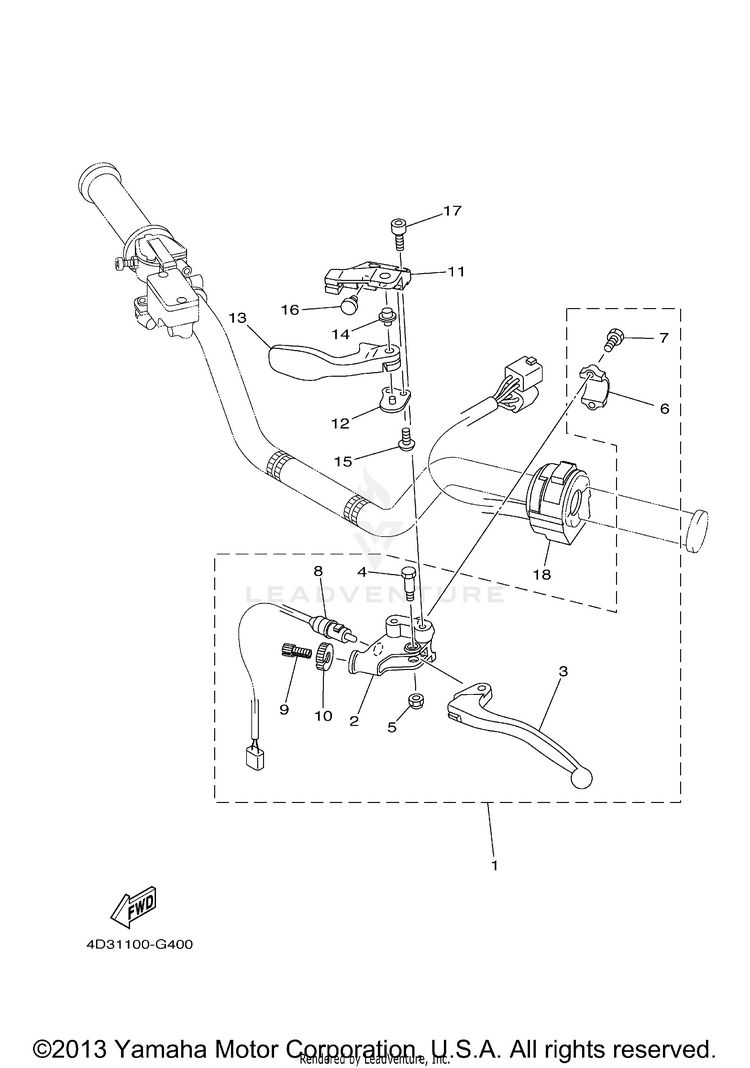

HANDLE SWITCH LEVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14D3-82910-02-00

(replaces part #
4D3-82910-00-00)

LEVER HOLDER ASSY (LEFT)$88.99$69.41Usually ships in 7-10 business days
25YT-82911-10-00HOLDER, LEVER 1$43.99$34.314 In-Stock
33RN-83912-01-00

(replaces part #
3RN-83912-00-00)

LEVER 1$25.99$20.272 In-Stock
490109-06798-00BOLT$9.49$7.404 In-Stock
595617-06100-00

(replaces part #
95602-06100-00)

NUT, U$2.90$2.4910+ In-Stock
65TG-82913-00-00HOLDER, LEVER LOWER 1$10.99$8.575 In-Stock
797095-05016-00

(replaces part #
97002-05016-00)

BOLT$1.75$1.5010+ In-Stock
85KM-82917-00-00SWITCH$63.99$49.912 In-Stock
990123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
1090179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
115TG-25727-01-00

(replaces part #
5TG-25727-00-00)

BRACKET, LEVER$53.99$42.112 In-Stock
125D3-25689-00-00PLATE, GUIDE$8.49$6.622 In-Stock
135TG-25726-01-00

(replaces part #
5TG-25726-00-00)

LEVER, BRAKE$33.99$26.512 In-Stock
145TG-83923-00-00COLLAR, LEVER 2$15.49$12.082 In-Stock
1592012-06014-00BOLT, BUTTON HEAD$9.49$7.40
1690338-07007-00PLUG$4.00$3.442 In-Stock
1792012-06014-00BOLT, BUTTON HEAD$9.49$7.40
184KB-83973-22-00

(replaces part #
4KB-83973-21-00)

SWITCH, HANDLE 3$139.99$109.1910+ In-Stock
