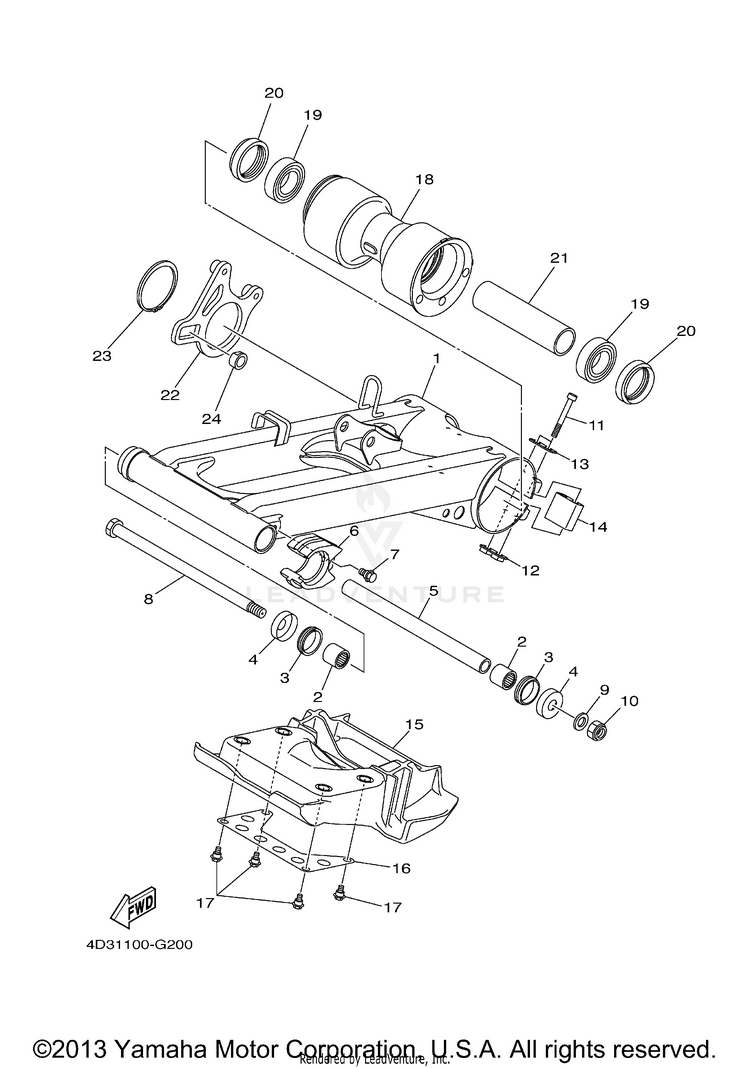

2009 Yamaha RAPTOR 250 Rear Arm OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	4D3-22110-00-P0	REAR ARM COMP. \| S8	$717.99	$580.88	Usually ships in 7-10 business days
2	93317-32231-00 (replaces part # 93317-22237-00)	BEARING	$48.99	$38.21	10+ In-Stock
3	93108-35004-00	OIL SEAL (35-41-8)	$17.49	$13.64	10+ In-Stock
4	30X-2219X-00-00	COVER	$17.99	$14.03	10+ In-Stock
5	4D3-22184-00-00	BUSH	$70.99	$55.37	7 In-Stock
6	4D3-22151-00-00	SEAL, GUARD	$24.99	$19.49	10+ In-Stock
7	90109-06172-00	BOLT	$3.50	$3.50	10+ In-Stock
8	2JN-22141-00-00	SHAFT, PIVOT	$71.99	$56.15	7 In-Stock
9	90201-14020-00	WASHER, PLATE	$9.49	$7.40	10+ In-Stock
10	90185-14009-00	NUT, SELF-LOCKING (M14)	$10.49	$8.18	10+ In-Stock
11	91314-08060-00 (replaces part # 91312-08060-00)	BOLT, HEXAGON SOCKET HEAD	$9.49	$7.40	10+ In-Stock
12	4D3-22314-00-00	NUT, PJTN.	$9.49	$7.40	10+ In-Stock
13	4D3-22348-00-00	PLATE 2	$4.90	$4.21	10+ In-Stock
14	4D3-2217H-00-00	COVER, DUST	$11.99	$9.35	5 In-Stock
15	4D3-2219X-00-00	COVER	$45.99	$35.87	2 In-Stock
16	4D3-22347-00-00	PLATE, CHAIN CASE RUBBER	$17.99	$14.03	3 In-Stock
17	90109-06236-00	BOLT	$8.49	$6.62	10+ In-Stock
18	2PA-25311-00-00 (replaces part # 4D3-25311-00-00)	HUB, REAR	$365.99	$285.47	1 In-Stock
19	93306-00710-00	BEARING	$57.99	$45.23	10+ In-Stock
20	93106-46001-00	OIL SEAL	$16.49	$12.86	10+ In-Stock
21	4D3-25317-00-00	SPACER, BEARING	$48.99	$38.21	4 In-Stock
22	4D3-25721-00-00	BRACKET, CALIPER	$147.99	$115.43	2 In-Stock
23	93410-67085-00	CIRCLIP	$13.49	$10.52	10+ In-Stock
24	4D3-25377-00-00	COLLAR, WHEEL	$16.49	$12.86	7 In-Stock
