2009 Yamaha RAPTOR 250 Steering Handle Cable OEM Parts Diagram

Submodel RAPTOR 250 - YFM25RYW - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

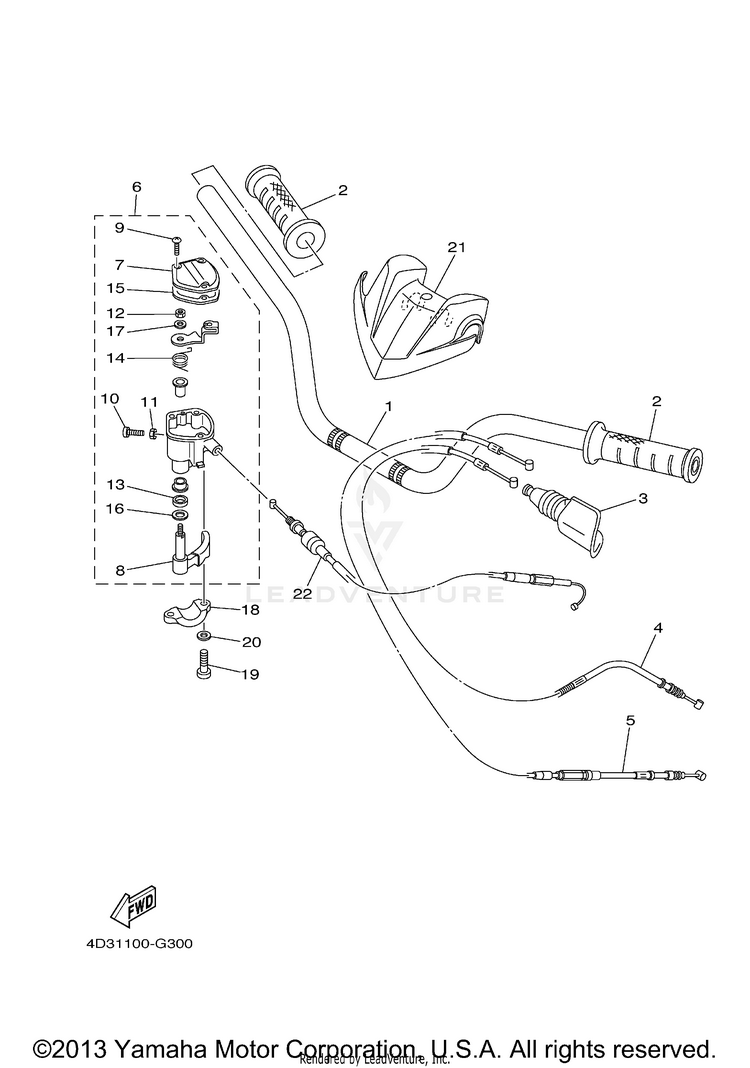

STEERING HANDLE CABLE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14D3-26111-00-00HANDLEBAR$73.99$57.713 In-Stock
25LP-26241-00-00GRIP$26.99$21.0510+ In-Stock
331A-26372-00-00COVER, HANDLE LEVER 1$33.99$27.87Usually ships in 7-10 business days
44D3-26335-00-00CABLE, CLUTCH$34.99$27.2910+ In-Stock
AFTERMARKET ALTERNATIVE
$16.89$16.8910+ In-Stock
54D3-26341-00-00WIRE, BRAKE 1$58.99$46.01Usually ships in 7-10 business days
64KB-26250-22-00

(replaces part #
4KB-26250-20-00)

THROTTLE LEVER ASSY$176.99$138.0510+ In-Stock
74KB-2628F-20-00CAP, GEAR$39.99$32.79Usually ships in 7-10 business days
81NV-2625G-02-00

(replaces part #
1NV-2625G-01-00)

LEVER, THROTTLE$65.99$51.474 In-Stock
94KB-2632G-00-00SCREW$3.85$3.314 In-Stock
104KB-26256-00-00SCREW, GRIP END$3.20$2.88Usually ships in 7-10 business days
1195617-05100-00

(replaces part #
95607-05100-00)

NUT, U$10.49$8.1810+ In-Stock
124KB-26258-00-00NUT, LOCK$3.05$2.74Usually ships in 7-10 business days
1393104-09025-00OIL SEAL$8.49$6.623 In-Stock
141NV-26304-00-00SPRING$12.99$10.133 In-Stock
154KB-2628G-00-00GASKET$14.49$11.301 In-Stock
161NV-26129-00-00WASHER$7.49$5.842 In-Stock
1753L-83909-00-00

(replaces part #
1NV-26398-00-00)

WASHER, SPECIAL$4.55$3.91Not Shipping
184V4-82913-00-00HOLDER, LEVER LOWER 1$31.99$24.95
1998517-05020-00

(replaces part #
98502-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
2092990-05600-00

(replaces part #
92902-05600-00)

WASHER, PLATE$1.60$1.44Usually ships in 7-10 business days
214D3-26124-00-00PROTECTOR, HANDLEBAR$31.99$24.952 In-Stock
224D3-26311-00-00CABLE, THROTTLE 1$42.99$33.538 In-Stock
AFTERMARKET ALTERNATIVE
$19.35$19.3510+ In-Stock
