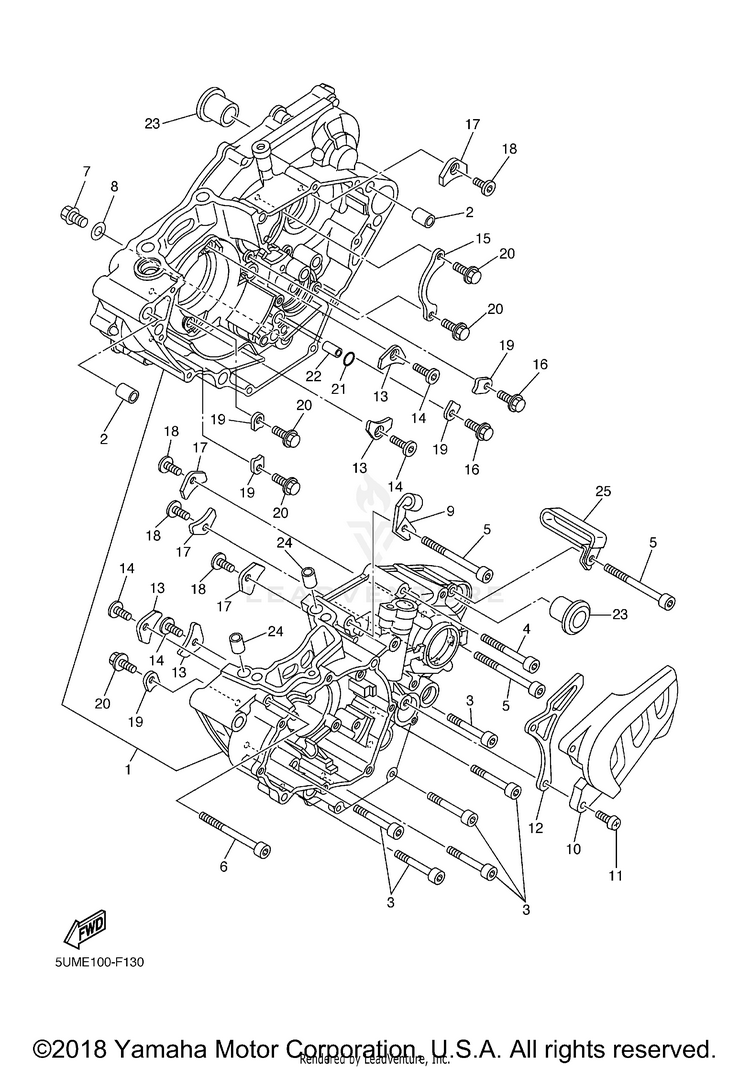

2009 Yamaha WR250F Crankcase OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	5UM-15100-28-YX (replaces part # 5UM-15150-21-YX)	CRANKCASE ASSY	$1,041.99	$812.75	Usually ships in 7-10 business days
2	93612-16254-00	PIN, DOWEL	$6.49	$5.06	10+ In-Stock
3	91312-06045-00	BOLT	$4.40	$3.78	10+ In-Stock
4	91312-06055-00	BOLT, HEXAGON SOCKET HEAD	$6.49	$5.06	10+ In-Stock
5	91312-06070-00	BOLT, HEXAGON SOCKET HEAD	$4.55	$3.91	10+ In-Stock
6	91311-06100-00 (replaces part # 91312-06100-00)	BOLT, SOCKET HEAD	$4.55	$4.10	Not Shipping
7	95022-10016-00	BOLT, FLANGE	$9.49	$7.40	10+ In-Stock
8	90430-10188-00	GASKET \| INCL. IN BOTTOM END GASKET KIT	$3.45	$2.97	10+ In-Stock
9	5NL-15441-01-00	HOLDER, CLUTCH CABLE	$18.99	$14.81	3 In-Stock
10	5BE-15421-30-00	COVER, CRANKCASE 2	$25.99	$20.27	5 In-Stock
11	98517-06025-00 (replaces part # 98502-06025-00)	SCREW, PAN HEAD	$4.05	$3.48	10+ In-Stock
12	5NL-17466-00-00	GUIDE, CHAIN	$19.99	$15.59	5 In-Stock
13	5BE-15383-01-00	PLATE, BEARING COVER	$11.99	$9.35	10+ In-Stock
14	90151-06044-00	SCREW, COUNTERSUNK	$4.50	$3.87	10+ In-Stock
15	5NL-15388-00-00	PLATE, BEARING COVER	$8.49	$7.64	Usually ships in 7-10 business days
16	95022-06012-00 (replaces part # 90105-06081-00)	BOLT, FLANGE	$3.55	$3.05	10+ In-Stock
17	4JT-15381-01-00	PLATE, BEARING COVER	$14.49	$11.30	10+ In-Stock
18	90151-06052-00 (replaces part # 90149-06074-00)	SCREW	$9.49	$7.40	10+ In-Stock
19	5DH-18562-00-00	PLATE, STOPPER 2	$8.49	$6.62	7 In-Stock
20	95022-06012-00 (replaces part # 90105-06081-00)	BOLT, FLANGE	$3.55	$3.05	10+ In-Stock
21	93210-10197-00	O-RING	$8.49	$6.62	10+ In-Stock
22	99530-10114-00	PIN, DOWEL	$2.65	$2.48	10+ In-Stock
23	90387-18007-00	COLLAR	$37.99	$29.63	10+ In-Stock
24	99530-10116-00	PIN, DOWEL	$4.40	$3.78	10+ In-Stock
25	90465-10013-00	CLAMP	$22.99	$17.93	1 In-Stock

1

5UM-15100-28-YX

(replaces part #
5UM-15150-21-YX)

CRANKCASE ASSY

$1,041.99

$812.75

Usually ships in 7-10 business days
