2010 Yamaha V-Star 650 Custom Front Master Cylinder OEM Parts Diagram

Submodel V STAR 650 CUSTOM - XVS65ZCW - 2010

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

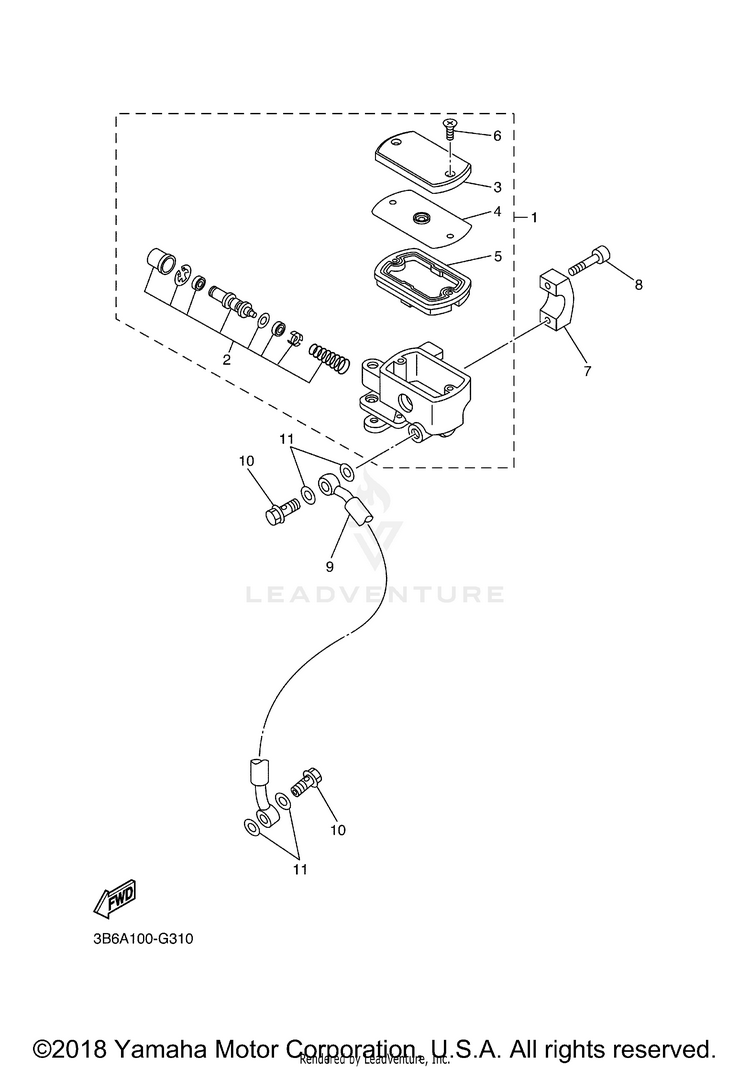

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13D8-25870-11-00

(replaces part #
3D8-W2587-10-00)

MASTER CYLINDER SUB ASSY$334.99$261.29Usually ships in 7-10 business days
22KR-25807-00-00

(replaces part #
2KR-W0041-00-00)

CYLINDER KIT, MASTER$89.99$70.19Usually ships in 7-10 business days
33D8-25852-10-00CAP, RESERVOIR$50.99$39.77Usually ships in 7-10 business days
43D8-25855-00-00BUSH, DIAPHRAGM$5.99$5.39Usually ships in 7-10 business days
53D8-25854-00-00DIAPHRAGM, RESERVOIR$37.99$31.15Usually ships in 7-10 business days
63D8-2589H-10-00SCREW$8.49$6.6210+ In-Stock
74TR-25867-00-00HOLDER$18.99$15.57Usually ships in 7-10 business days
891314-06025-00BOLT, HEXAGON SOCKET HEAD$9.49$7.407 In-Stock
95KP-25872-10-00HOSE, BRAKE 1$105.99$82.67Usually ships in 7-10 business days
1090401-10020-00BOLT, UNION$10.49$8.602 In-Stock
1190430-10005-00GASKET$9.49$7.4010+ In-Stock
