2010 Yamaha V-Star 650 Custom Front Wheel OEM Parts Diagram

Submodel V STAR 650 CUSTOM - XVS65ZCW - 2010

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

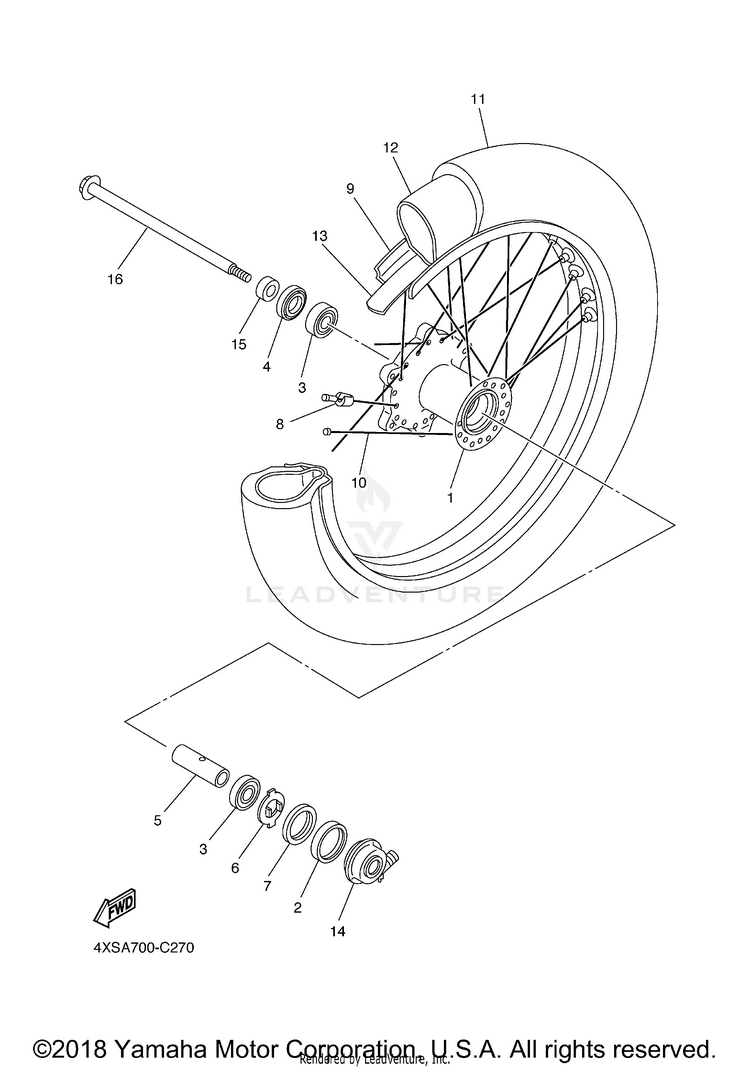

FRONT WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14TR-25111-00-00HUB, FRONT$280.99$222.23Usually ships in 7-10 business days
293105-45017-00OIL SEAL$16.49$12.862 In-Stock
393306-30317-00BEARING$43.99$34.3110+ In-Stock
493102-28022-00OIL SEAL$16.49$12.8610+ In-Stock
590387-173M5-00COLLAR$33.99$27.87Usually ships in 7-10 business days
6341-25149-00-00CLUTCH, METER$8.49$7.642 In-Stock
7341-25846-00-00RETAINER, CLUTCH$9.49$8.542 In-Stock
83HT-25398-00-00BALANCER, WHEEL (15G) | UN$8.49$7.64Usually ships in 7-10 business days
994425-19585-00RIM (19M/C X MT2.50)$339.99$282.42Usually ships in 7-10 business days
104VR-25104-02-00SPOKE SET, FRONT$183.99$145.28Usually ships in 7-10 business days
1194110-1908T-00TIRE (100/90-19 M/C 57S L309) | UR BRIDGESTONE$113.99$91.47Not Shipping
1194110-1908V-00TIRE (100/90-19 M/C 57S F24) | UR DUNLOP$256.99$200.45Usually ships in 7-10 business days
1294210-19222-00TUBE (100/90-19 M/C TR4) | UR BRIDGESTONE$53.99$42.111 In-Stock
1294210-19224-00TUBE (100/90-19 M/C TR4 BTL) | UR DUNLOP$36.99$28.853 In-Stock
1394327-19111-00

(replaces part #
94321-19135-00)

BAND, RIM (2.00-19) | UR DUNLOP$16.49$12.867 In-Stock
1394321-19157-00BAND, RIM (2.15-19) | UR BRIDGESTONE$3.76$3.38Usually ships in 7-10 business days
144TR-25190-20-00GEAR UNIT ASSY$125.99$98.27Usually ships in 7-10 business days
1590387-173R6-00COLLAR$33.99$27.87Usually ships in 7-10 business days
165KS-25181-00-00AXLE, WHEEL$79.99$62.39Usually ships in 7-10 business days
