2011 Yamaha Raider S XV1900CS Shift Shaft OEM Parts Diagram

Submodel RAIDER S - XV19CSACB - 2011

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

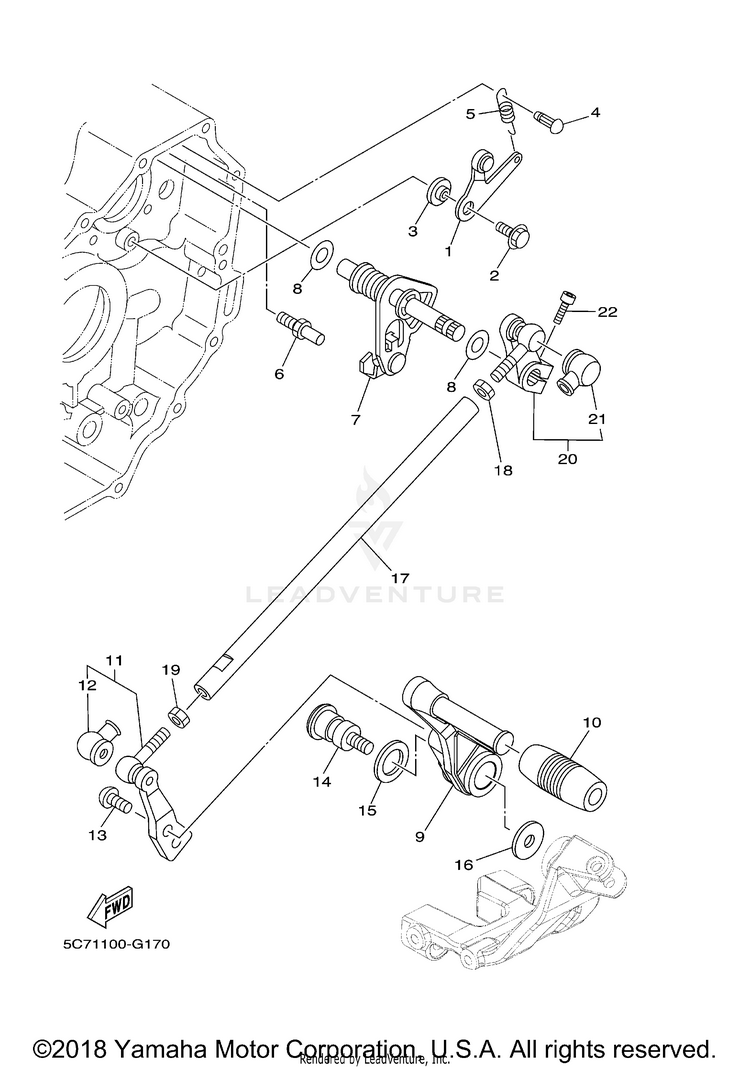

SHIFT SHAFT

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11D7-18140-00-00STOPPER LEVER ASSY$32.99$27.05Usually ships in 7-10 business days
290159-06028-00

(replaces part #
90159-06027-00)

SCREW, WITH WASHER$8.49$6.623 In-Stock
34NX-18175-00-00SPACER$17.99$14.75Usually ships in 7-10 business days
4132-16346-00-00HOOK, SPRING$10.99$8.578 In-Stock
55C7-18144-00-00HANGER, SPRING$4.40$3.96Usually ships in 7-10 business days
65VK-18127-00-00

(replaces part #
1D7-18127-00-00)

STOPPER, SCREW$15.49$12.70Usually ships in 7-10 business days
71D7-18101-01-00

(replaces part #
1D7-18101-00-00)

SHIFT SHAFT ASSY$105.99$82.67Usually ships in 7-10 business days
890201-127E1-00WASHER, PLATE$4.65$4.0010+ In-Stock
95C7-18111-00-00PEDAL, SHIFT$186.99$145.85Usually ships in 7-10 business days
105VN-18113-00-00COVER, SHIFT PEDAL$16.49$13.52Usually ships in 7-10 business days
115C7-18164-00-00KNOB, SHIFTER$155.99$121.67Usually ships in 7-10 business days
122H9-18154-00-00COVER, DUST$5.99$4.768 In-Stock
1392012-08016-00

(replaces part #
90111-08048-00)

BOLT, BUTTON HEAD$10.49$8.1810+ In-Stock
145C7-27434-09-00

(replaces part #
5C7-27434-00-00)

BOLT$50.99$39.77Usually ships in 7-10 business days
1590201-18025-00WASHER, PLATE$6.49$5.84Usually ships in 7-10 business days
1690201-08061-00WASHER, PLATE$9.49$7.404 In-Stock
175C7-18115-00-00ROD, SHIFT$166.99$130.25Usually ships in 7-10 business days
1895380-08700-00

(replaces part #
95304-08700-00)

NUT-$3.796 In-Stock
1990170-08358-00NUT$9.49$7.402 In-Stock
205C7-18150-00-00SHIFT LEVER ASSY$157.99$123.23Usually ships in 7-10 business days
212H9-18154-00-00COVER, DUST$5.99$4.768 In-Stock
2291314-06020-00BOLT, HEXAGON SOCKET HEAD$2.65$2.5710+ In-Stock
