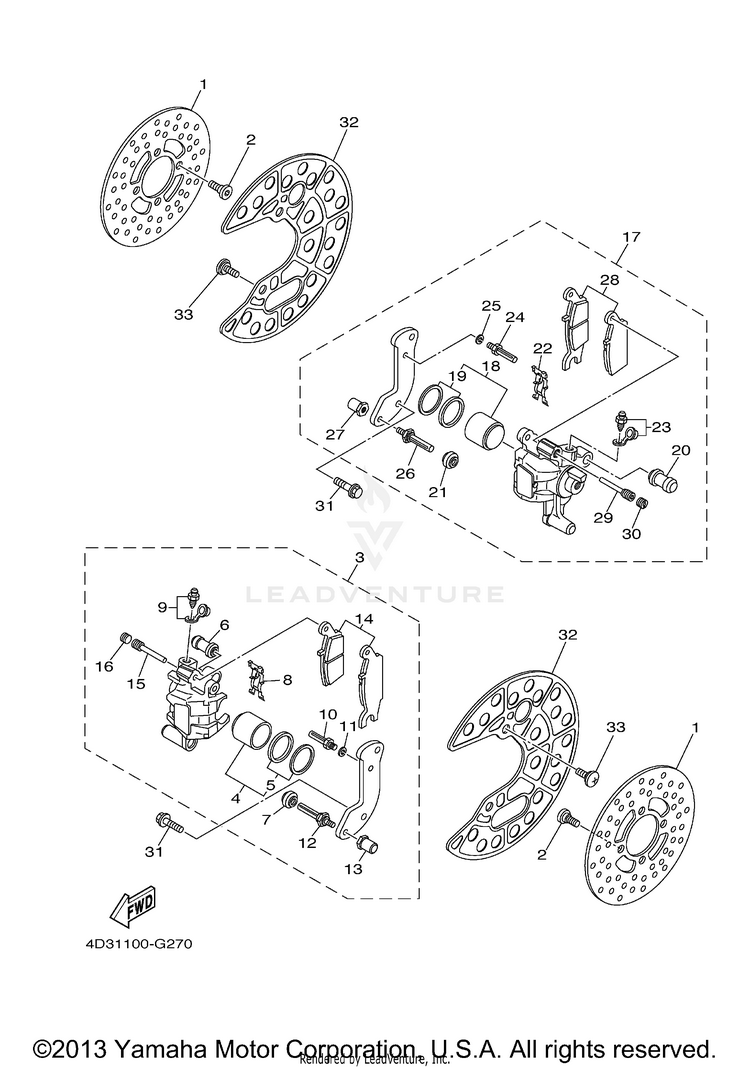

FRONT BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13GD-2582T-10-00DISC, BRAKE (LEFT)$219.99$171.592 In-Stock
290109-08087-00

(replaces part #
90109-08082-00)

BOLT$3.15$2.7110+ In-Stock
34D3-2580T-01-00

(replaces part #
4D3-2580T-00-00)

CALIPER ASSY (LEFT)$259.99$216.08Usually ships in 7-10 business days
43B4-W0057-00-00PISTON ASSY, CALIPER$89.99$70.194 In-Stock
53B4-W0047-00-00CALIPER SEAL KIT$16.49$12.864 In-Stock
61UY-25937-51-00BOOT 2$15.49$12.0810+ In-Stock
73JD-25917-00-00BOOT, CALIPER$9.49$7.4010+ In-Stock
85DH-25919-00-00SUPPORT, PAD$22.99$17.9310+ In-Stock
936Y-W0048-00-00

(replaces part #
1UY-W0048-50-00)

BLEED SCREW KIT$10.99$8.5710+ In-Stock
101UY-25926-51-00BOLT$4.85$4.179 In-Stock
111UY-25938-51-00WASHER, SPRING$9.49$7.402 In-Stock
123JD-25926-00-00BOLT$8.49$6.628 In-Stock
133JD-25961-00-00NUT$9.49$7.40Not Shipping
144D3-W0045-00-00BRAKE PAD KIT$50.99$39.775 In-Stock
AFTERMARKET ALTERNATIVE
$29.99$19.9910+ In-Stock
155DH-25933-00-00PIN, PAD$24.99$19.4910+ In-Stock
168CR-25926-00-00BOLT$7.49$6.745 In-Stock
174D3-2580U-01-00

(replaces part #
4D3-2580U-00-00)

CALIPER ASSY (RIGHT)$259.99$216.08Usually ships in 7-10 business days
183B4-W0057-00-00PISTON ASSY, CALIPER$89.99$70.194 In-Stock
193B4-W0047-00-00CALIPER SEAL KIT$16.49$12.864 In-Stock
201UY-25937-51-00BOOT 2$15.49$12.0810+ In-Stock
213JD-25917-00-00BOOT, CALIPER$9.49$7.4010+ In-Stock
225DH-25919-00-00SUPPORT, PAD$22.99$17.9310+ In-Stock
2336Y-W0048-00-00

(replaces part #
1UY-W0048-50-00)

BLEED SCREW KIT$10.99$8.5710+ In-Stock
241UY-25926-51-00BOLT$4.85$4.179 In-Stock
251UY-25938-51-00WASHER, SPRING$9.49$7.402 In-Stock
263JD-25926-00-00BOLT$8.49$6.628 In-Stock
273JD-25961-00-00NUT$9.49$7.40Not Shipping
284D3-W0045-10-00BRAKE PAD KIT$50.99$39.771 In-Stock
295DH-25933-00-00PIN, PAD$24.99$19.4910+ In-Stock
308CR-25926-00-00BOLT$7.49$6.745 In-Stock
3190105-08161-00BOLT, FLANGE$8.49$6.628 In-Stock
324D3-2514A-00-00RING, WHEEL 1$10.99$9.01Not Shipping
3390149-06117-00SCREW$9.49$7.4010+ In-Stock
